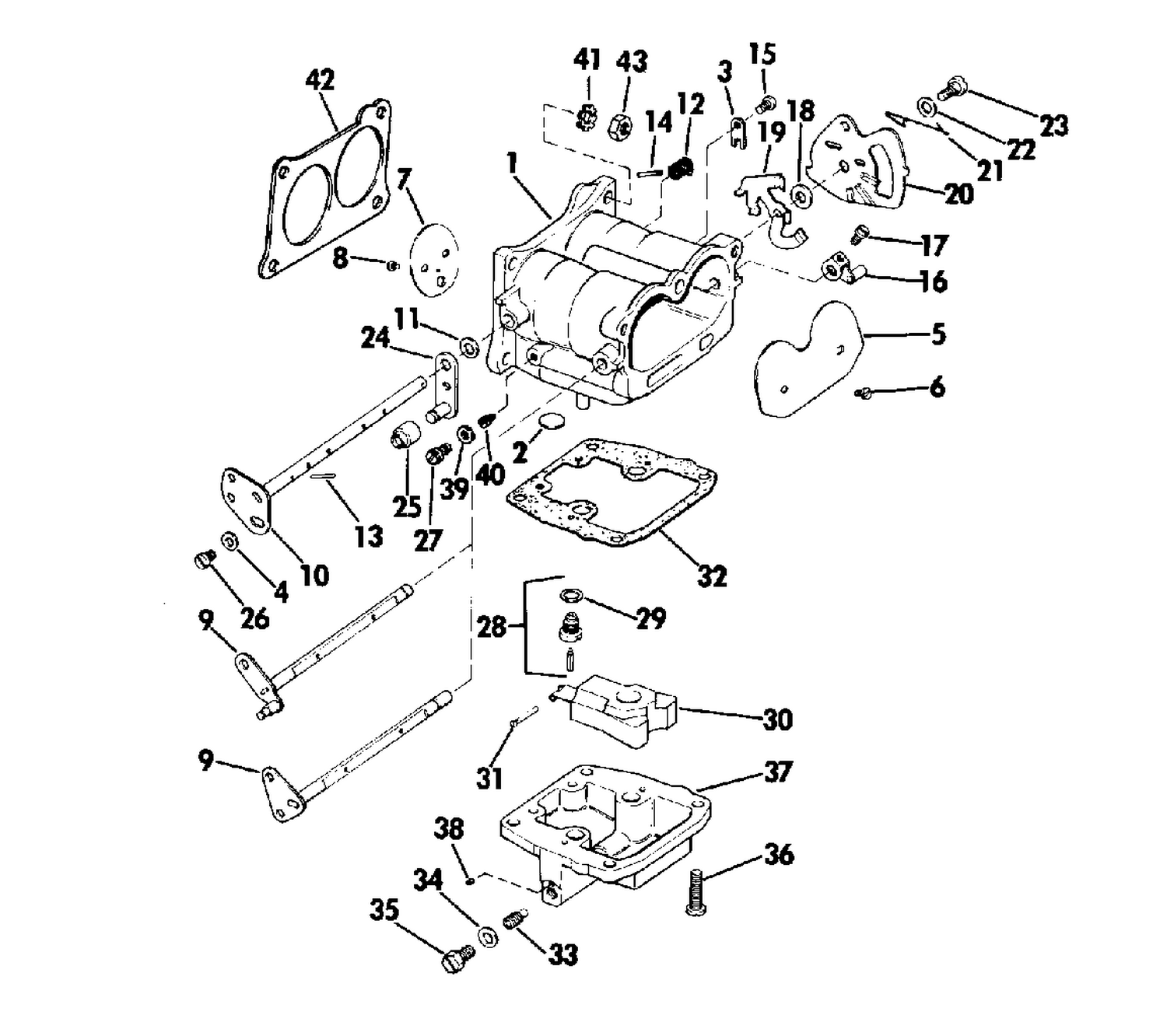

CARBURETOR
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0386508 | BODY ASSY., Upper |
| 1 | 0386509 | BODY ASSY., Lower |
| 3 | 0314906 | CLIP |
| 7 | 0317182 | THROTTLE VALVE |
| 22 | 0310540 | RONDELLE, arbre de verrouillage de relevage, extérieur |
| 27 | 0317501 | SCREW PLUG, Orifice |
| 30 | 0383437 | FLOAT ASSEMBLY |
| 32 | 0338884 | GASKET, Float bowl This part replaces 0314884. |
| 33 | 0319776 | ORIFICE PLUG (69C) |
| 35 | 0307832 | PLUG, Screw |
| 36 | 0307466 | SCRES, Bowl to body |
| 37 | 0384913 | FLOAT CHAMBER ASSY |
| 42 | 0315052 | GASKET CARB. TO MANIFOLD |
| 0386506 | 0386506 | CARB ASSY., Upper |
| 0386507 | 0386507 | CARB ASSY., Lower |
