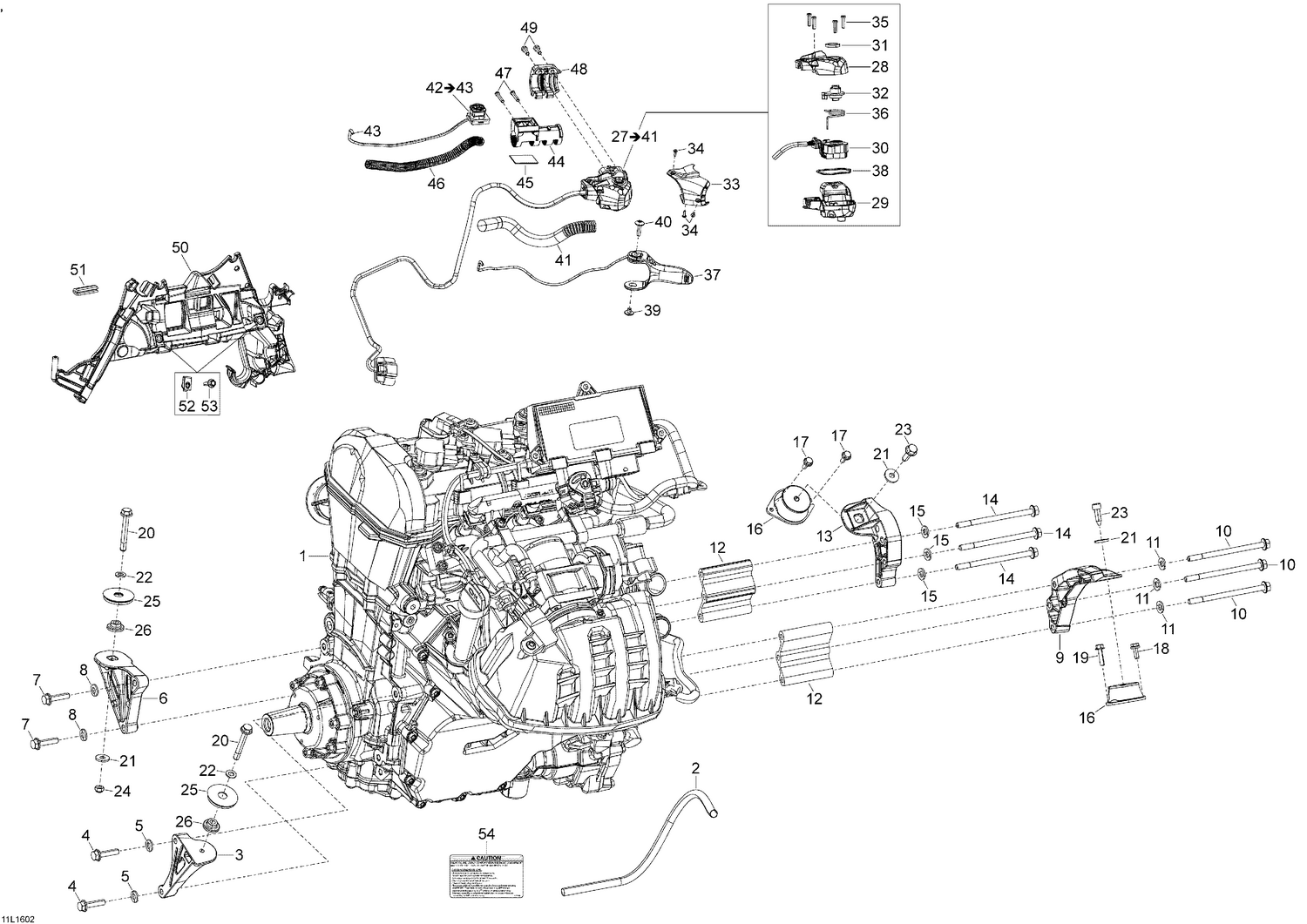

| Ref | Part Number | Description |
|---|
| 1 |
Not |
Available As Spare Part - Engine 600 ACE |
| 2 |
512061067 |
Protector Tube |
| 3 |
512061139 |
Rear Support PTO This part replaces 512060660. |
| 4 |
250000986 |
Hex. Flanged Screw M8 X 35 This part replaces 207583586. |
| 5 |
234281474 |
Conical Spring Washer M8 |
| 6 |
512061140 |
Front Support (PTO) This part replaces 512060661. |
| 7 |
250000986 |
Hex. Flanged Screw M8 X 35 This part replaces 207583586. |
| 8 |
234281474 |
Conical Spring Washer M8 |
| 9 |
512061142 |
Rear Support (MAG) This part replaces 512060894. |
| 10 |
230582544 |
Hex. Flange Screw M8 x 125, Scotch Grip |
| 11 |
250200157 |
Conical Spring Washer M8 |
| 12 |
512060505 |
Shim |
| 13 |
512060663 |
Front Support (MAG) |
| 14 |
230582544 |
Hex. Flange Screw M8 x 125, Scotch Grip |
| 15 |
250200157 |
Conical Spring Washer M8 |
| 16 |
512060729 |
Rubber Mount |
| 17 |
207561644 |
Hex Flange Screw M6 X 16, Scotch Grip |
| 18 |
207561644 |
Hex Flange Screw M6 X 16, Scotch Grip |
| 19 |
207562534 |
Hex. Flange Screw M6 X 25, Scotch Grip |
| 20 |
207586044 |
Hex. Flange Screw M8 X 60, Scotch Grip |
| 21 |
503183200 |
Yellow, Washer |
| 22 |
250200008 |
Flat Washer With Teflon 8 mm |
| 23 |
250000257 |
Cone Screw M8 x 30 |
| 24 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 25 |
512061203 |
Stopper This part replaces 512060647. |
| 26 |
512060285 |
Spacer |
| 28 |
Not |
Available As Spare Part - Housing |
| 29 |
Not |
Available As Spare Part - Housing |
| 30 |
Not |
Available As Spare Part - Sensor |
| 31 |
293250307 |
Shaft Seal |
| 32 |
Not |
Available As Spare Part - Swivel |
| 33 |
512060862 |
Cap |
| 34 |
250000623 |
Torx Screw M2.9 x 9.5 |
| 35 |
250000671 |
Torx Screw |
| 36 |
Not |
Available As Spare Part - Spring |
| 37 |
Not |
Available As Spare Part - Handle |
| 38 |
Not |
Available As Spare Part - O Ring |
| 39 |
Not |
Available As Spare Part - Screw |
| 40 |
250000528 |
Torx Screw M5 X 20 |
| 41 |
515177716 |
Protector Tube |
| 43 |
515175232 |
Male Terminal |
| 44 |
512061453 |
Switch Support This part replaces 512060844. |
| 45 |
294000973 |
Friction Tape |
| 46 |
515177946 |
Protector Tube |
| 47 |
250000263 |
Torx Screw #8-18 |
| 48 |
512060987 |
Front Housing |
| 49 |
250000632 |
Torx Screw M5 x 14 |
| 50 |
512060994 |
ECU Support |
| 51 |
271001530 |
Protect Trim |
| 52 |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. |
| 53 |
207552044 |
Hex. Flange Screw M5 X 20, Scotch Grip |
