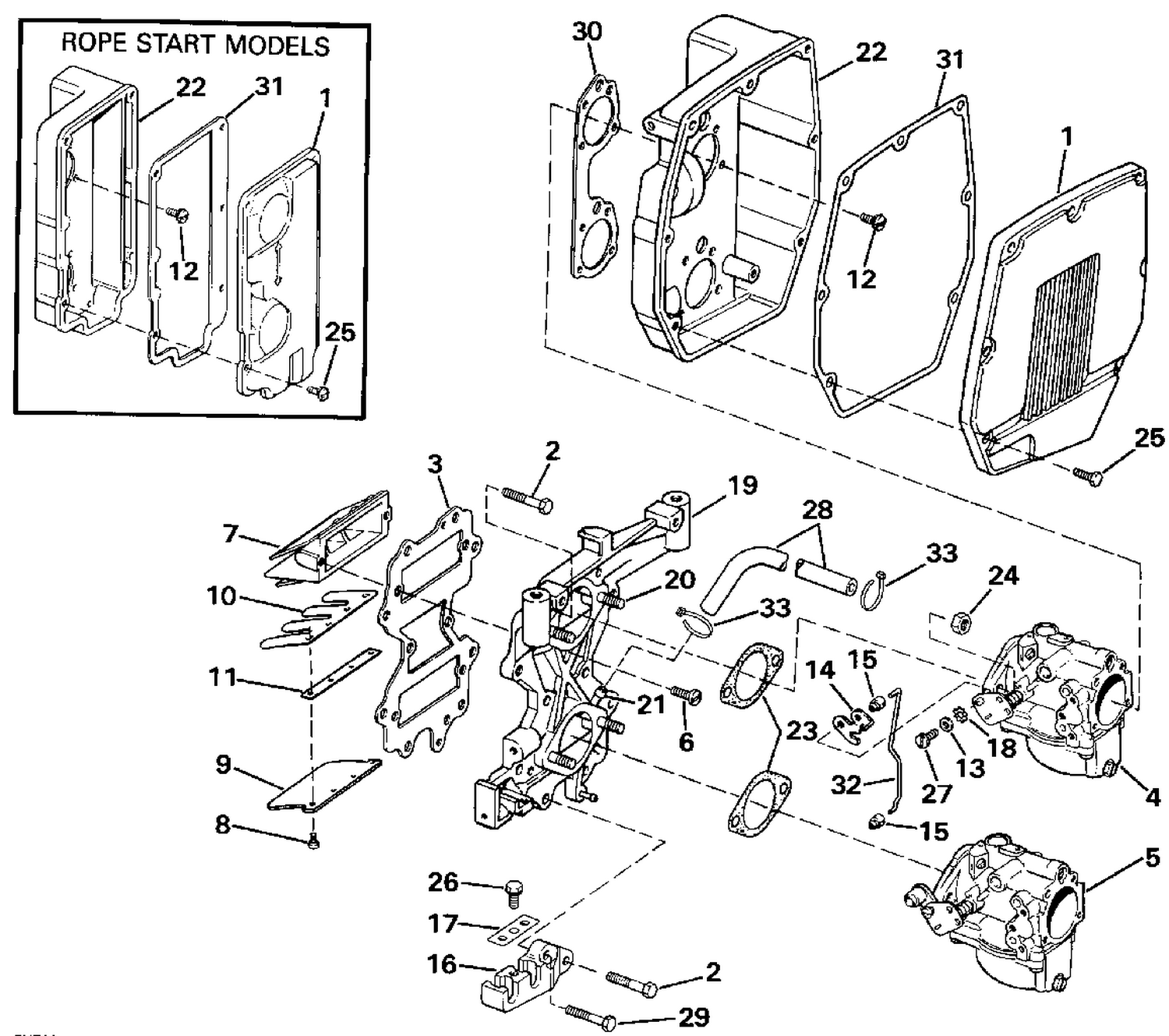

| Ref | Part Number | Description |
|---|
| 1 |
0329396 |
COVER |
| 1 |
0330912 |
COVER, Air silencer |
| 2 |
0306409 |
VIS, collecteur vers carter-moteur |
| 3 |
0335633 |
GASKET |
| 4 |
CARBURETOR |
ASSY., Upper |
| 5 |
CARBURETOR |
ASSY., Lower |
| 6 |
0306474 |
SCREW |
| 7 |
0389823 |
CLAPET |
| 14 |
0329418 |
LEVER, Synchronization adj. |
| 15 |
0318165 |
DISPOSITIF DE RETENUE, tringlerie de carburateur |
| 19 |
0431988 |
MANIFOLD ASSY. |
| 19 |
0433684 |
MANIFOLD Assy |
| 22 |
0333522 |
BASE |
| 23 |
0325092 |
GASKET |
| 24 |
0316355 |
BUT, Carburetor mounting |
| 28 |
HOSE, |
Air silencer to manifold, 4 3/4 in. (127mm) |
| 29 |
0306418 |
VIS, ancrage |
| 30 |
0330910 |
GASKET |
| 31 |
0330698 |
GASKET |
| 31 |
0330909 |
GASKET |
| 32 |
0329888 |
LINK |
