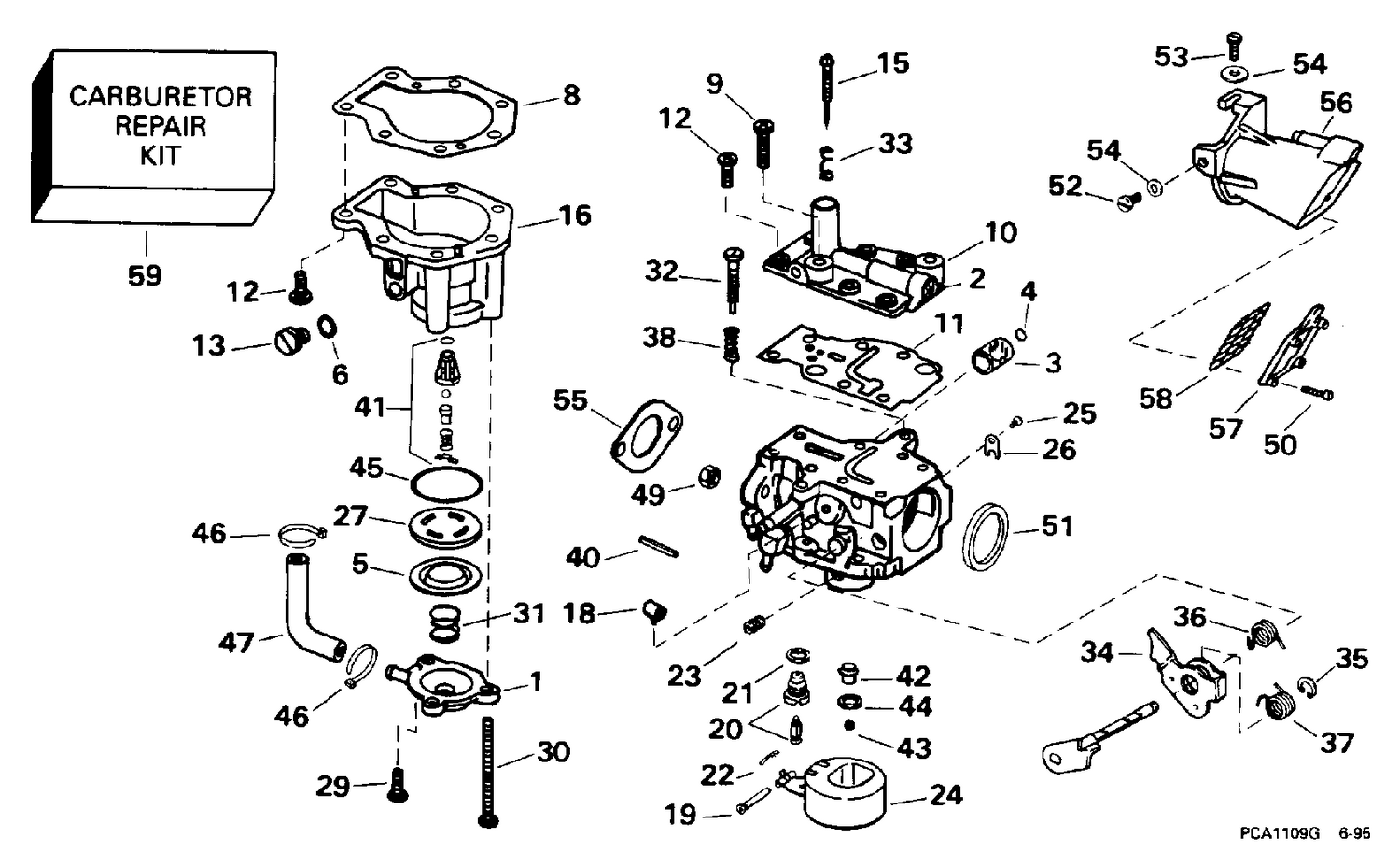

| Ref | Part Number | Description |
|---|
| 1 |
0437781 |
COVER & NIPPLE ASSY. |
| 4 |
0324678 |
JOINT TORIQUE Galet de came de papillon |
| 5 |
0435488 |
DIAPHRAGM ASSY. |
| 8 |
0342072 |
GASKET, Bowl |
| 10 |
0437287 |
COVER, Carb. body |
| 16 |
0338602 |
FLOAT CHAMBER |
| 18 |
0341560 |
CAP, Restrictor |
| 18 |
0342973 |
CAP, Restrictor |
| 22 |
0336842 |
CLIP, SPRING |
| 23 |
0323151 |
HIGH SPEED ORIFICE, No. 45 |
| 23 |
0328535 |
HIGH SPEED ORIFICE, No. 41 |
| 27 |
0342055 |
RETAINER, Check valve |
| 31 |
0341562 |
SPRING, Diaphragm |
| 41 |
0437782 |
CHECK VALVE ASSY. |
| 42 |
0342028 |
CAP, Check valve |
| 43 |
0340683 |
BALL, Fuel outlet |
| 44 |
0341185 |
GASKET, Nozzle well |
| 45 |
0342067 |
O-RING, Float chamber |
| 46 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 47 |
HOSE, |
Accelerator pump, 6 1/4 in. (159mm) |
| 49 |
0337415 |
NUT |
| 50 |
0337353 |
SCREW, Retainer & screen |
| 52 |
0337356 |
SCREW, Air horn to carb., side |
| 53 |
0337357 |
SCREW, Air horn to carb., top |
| 55 |
0318932 |
JOINT |
| 56 |
0338914 |
AIR HORN |
| 57 |
0341402 |
RETAINER, Screen to air horn |
| 58 |
0340009 |
SCREEN, Air horn |
| 0438125 |
5000283 |
CARBURETOR ASSY. This part replaces 0438125. |
| 0438126 |
5000284 |
CARBURETOR ASSY. This part replaces 0438126. |
| 0438130 |
5000283 |
CARBURETOR ASSY. This part replaces 0438130. |
| 0438131 |
5000284 |
CARBURETOR ASSY. This part replaces 0438131. |
