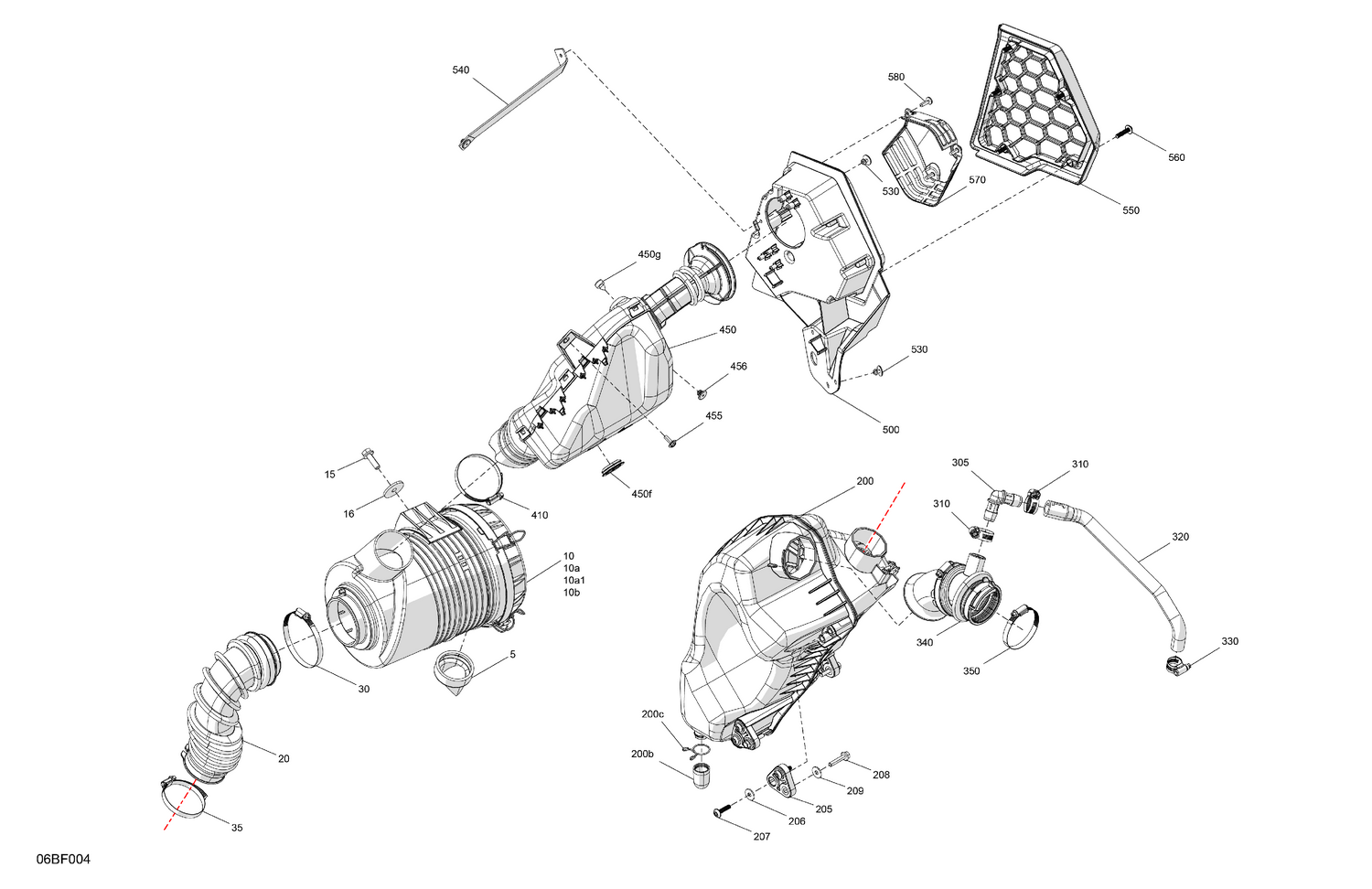

02- Engine - Air Intake
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 5 | 715003114 | Duct Bill Valve |
| 10a1 | 715900514 | O-Ring |
| 10b | 715900394 | Air Filter |
| 15 | 207682544 | Hex. Flange Screw M8 X 25 |
| 16 | 250200158 | Flat Washer M8 |
| 20 | 707800923 | Intake Adapter |
| 30 | 293650096 | Norma Clamp |
| 35 | 293650091 | Norma Clamp |
| 200b | 293000135 | Cap |
| 200c | 707801043 | Spring Clamp |
| 205 | 707801000 | Support |
| 206 | 234062410 | Flat Washer 6 mm |
| 207 | 250000980 | Hex. Screw Pt K60 X 25 |
| 208 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 209 | 234062410 | Flat Washer 6 mm |
| 305 | 293710155 | Elbow Fitting 90 |
| 310 | 293650173 | Tridon Gear Clamp |
| 320 | 707800924 | Crankcase Hose |
| 330 | 293650173 | Tridon Gear Clamp |
| 340 | 707800930 | Intake Adapter |
| 350 | 293650091 | Norma Clamp |
| 410 | 293650091 | Norma Clamp |
| 450f | 293000125 | Plug |
| 450g | 293830005 | Rubber Bumper |
| 455 | 250000959 | Screw PT Type K-50 X 16 |
| 456 | 293150292 | Black, Pop Rivet 3/16 X ,550 |
| 500 | 707800865 | Air Intake Box |
| 530 | 293150292 | Black, Pop Rivet 3/16 X ,550 |
| 540 | 707801109 | Duct Support |
| 550 | 707800751 | Air Intake Grid |
| 560 | 250000980 | Hex. Screw Pt K60 X 25 |
| 570 | 707800762 | Baffle |
