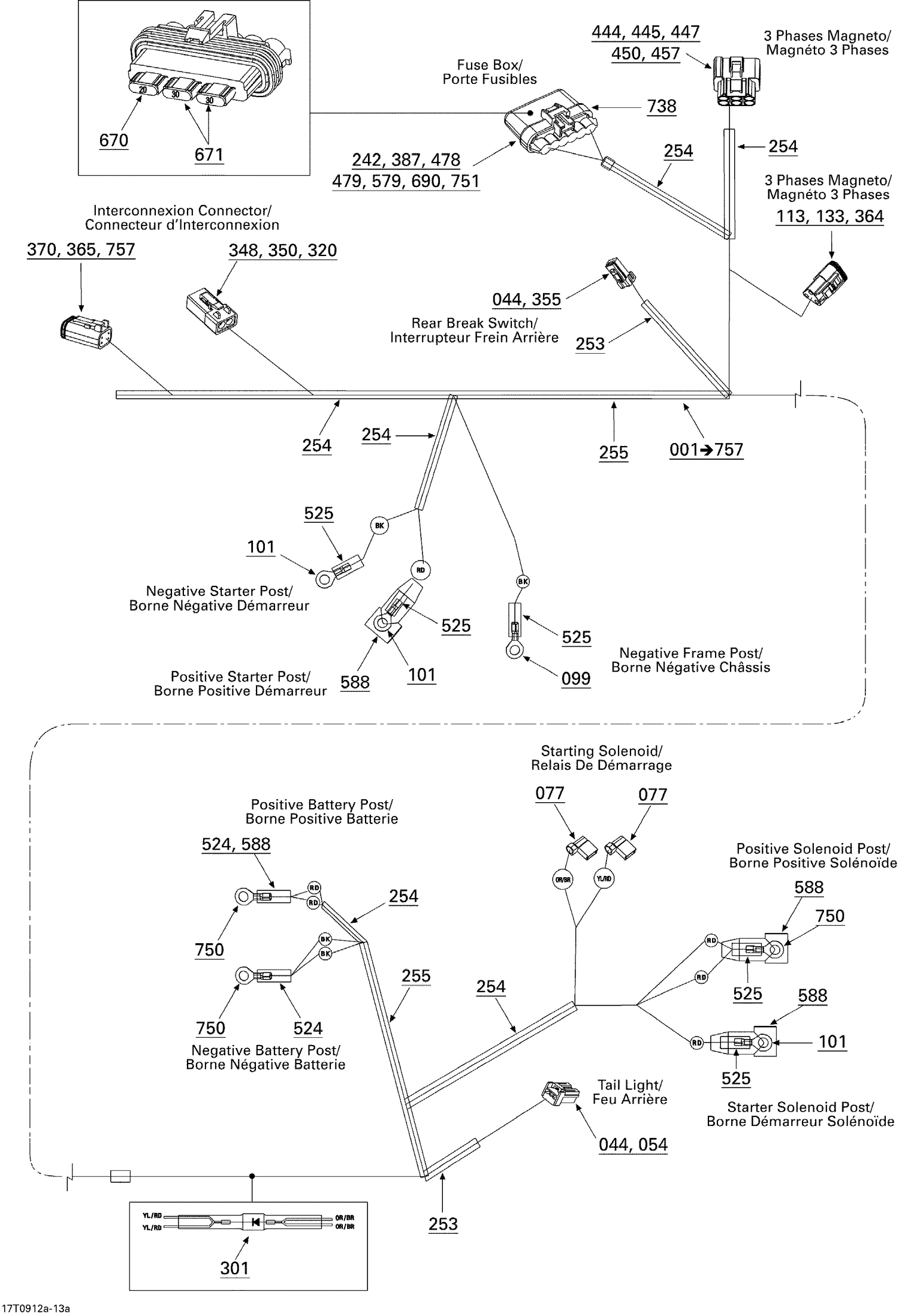

| Ref | Part Number | Description |
|---|
| 44 |
515175231 |
Female Terminal |
| 54 |
515175495 |
Female Housing, 3 Circuits |
| 77 |
409010300 |
Female Terminal |
| 99 |
278000992 |
Open Barrel |
| 101 |
278001392 |
Open Barrel Terminal |
| 113 |
278001661 |
FEMALE TERMINAL - Call your local BRP dealership |
| 133 |
409207200 |
Female Lock |
| 242 |
278000218 |
Wire Seal |
| 253 |
219704425 |
Tubing 6 Mm 3000Mm Long |
| 254 |
219704399 |
Was 409901700 Tubing (9 mm) |
| 255 |
219704400 |
Was 409901800 Tubing (13 mm) |
| 301 |
409012700 |
Diode |
| 320 |
515175567 |
Female Terminal |
| 348 |
278001673 |
Female Terminal Housing, 2 Circuits |
| 350 |
278001671 |
Female Lock, 2 Circuits |
| 355 |
515175658 |
Female Housing, 2 Circuits |
| 364 |
515175671 |
FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership |
| 365 |
515175672 |
CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership |
| 370 |
515175677 |
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership |
| 387 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 444 |
710000336 |
MALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership |
| 445 |
710000337 |
JOINT SEAL - Call your local BRP dealership |
| 447 |
710000339 |
SECONDARY LOCK - Call your local BRP dealership |
| 450 |
710000343 |
CAP - Call your local BRP dealership |
| 457 |
710000356 |
FEMALE TERMINAL - Call your local BRP dealership |
| 478 |
710000888 |
Housing, 6 Circuits |
| 479 |
710000889 |
Lock |
| 524 |
512059668 |
Heat Shrink Tubing 25 mm |
| 525 |
710000482 |
SHRINK TUBING - Call your local BRP dealership |
| 579 |
710000504 |
Wire Seal |
| 588 |
710000526 |
Protector Cap |
| 670 |
710000746 |
Little Fuse, 20 Amperes |
| 671 |
710000747 |
Little Fuse, 30 Amperes |
| 690 |
710000890 |
Female Terminal |
| 738 |
710000897 |
Cover |
| 750 |
710000913 |
Terminal |
| 751 |
710000918 |
Female Terminal |
