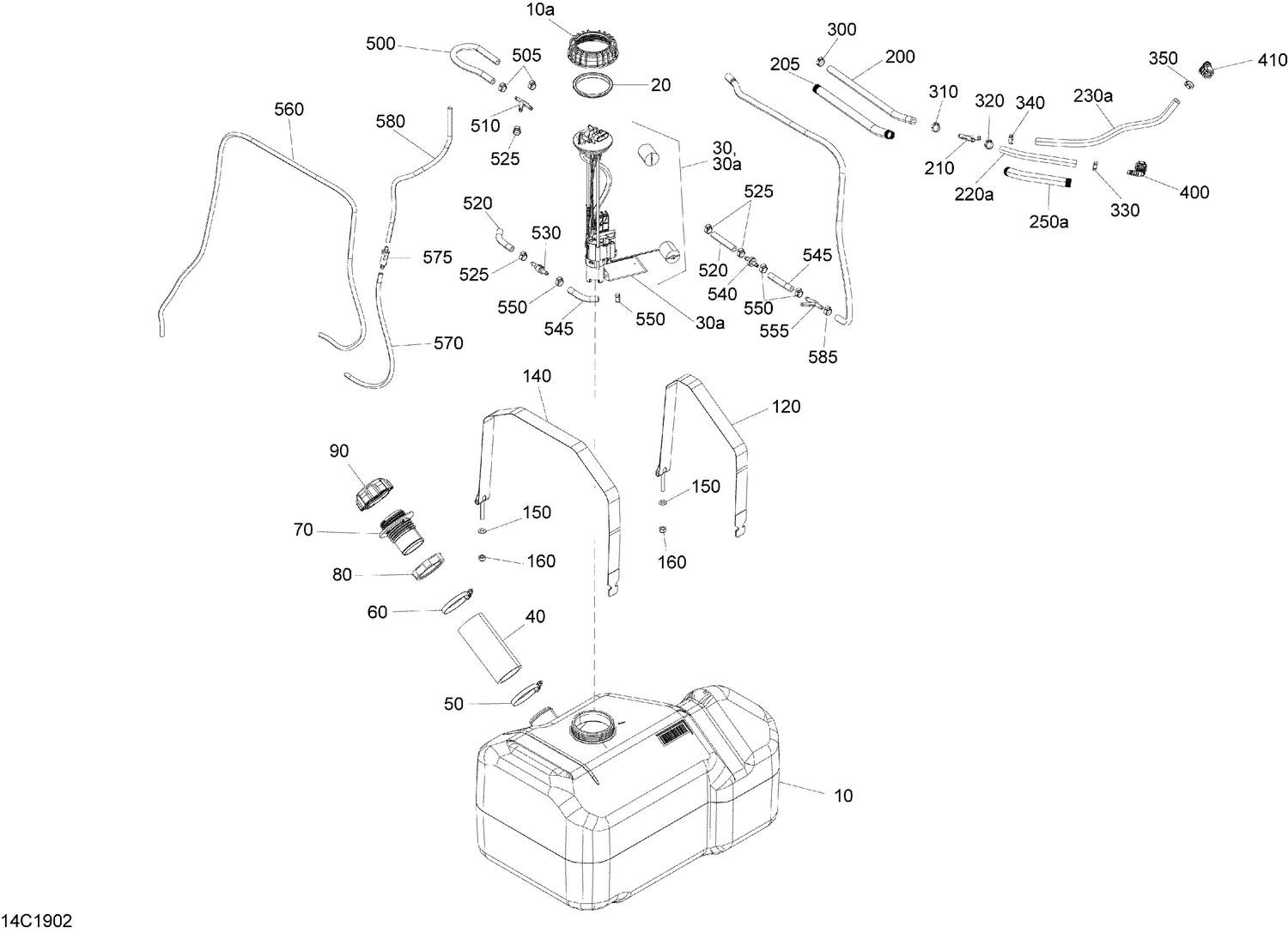

02- Fuel - NO EVAP
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 709000328 | Fuel Pump Module Nut |
| 20 | 709000208 | Seal |
| 30a | 715900322 | Prefilter Fuel Pump Kit 86mm Long |
| 40 | 709000595 | Hose Filler Neck |
| 50 | 293650081 | Norma Clamp |
| 60 | 293650081 | Norma Clamp |
| 70 | 709000867 | Filler Neck |
| 80 | 211100012 | Filler Neck Nut, Fuel |
| 90 | 709000868 | Fuel Cap |
| 120 | 709000521 | Fuel Tank Strap |
| 140 | 709000648 | Fuel Tank Strap |
| 150 | 234081410 | Flat Washer 8 mm |
| 160 | 232581200 | Hex. Elastic Nut M8 Brass |
| 200 | 219704440 | Was 709000163 Fuel Line |
| 205 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 210 | 293710136 | Y-Fitting, 5/16'' |
| 220a | 219704440 | Was 709000163 Fuel Line |
| 230a | 219704440 | Was 709000163 Fuel Line |
| 235a | 219704408 | Tubing 16 Mm 1000Mm Long |
| 250a | 219704408 | Tubing 16 Mm 1000Mm Long |
| 300 | 293650047 | Crimp Clamp, 15.3-706R |
| 310 | 293650047 | Crimp Clamp, 15.3-706R |
| 320 | 293650047 | Crimp Clamp, 15.3-706R |
| 330 | 293650047 | Crimp Clamp, 15.3-706R |
| 340 | 293650047 | Crimp Clamp, 15.3-706R |
| 350 | 293650047 | Crimp Clamp, 15.3-706R |
| 400 | 275500700 | Quick Attach 90° |
| 410 | 275500700 | Quick Attach 90° |
| 500 | 219704389 | Polyurethane Hose 4000MM Long |
| 520 | 219704389 | Polyurethane Hose 4000MM Long |
| 530 | 513033469 | Check Valve |
| 540 | 275500398 | Check Valve |
| 545 | 293710059 | Y-Fitting |
| 570 | 219704389 | Polyurethane Hose 4000MM Long |
| 575 | 709000330 | Filter |
