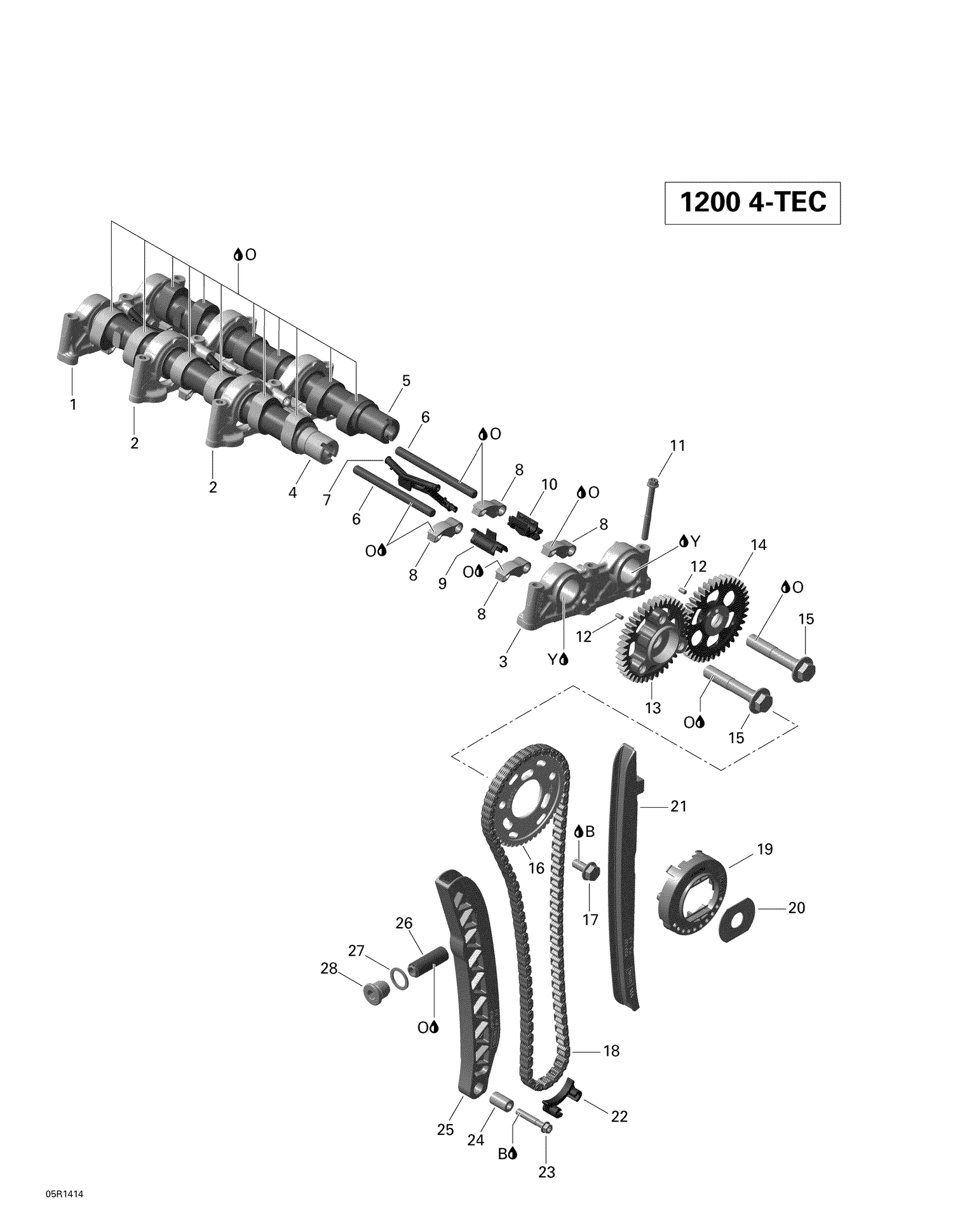

01_Camshafts and Timing chain
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| B | 293800060 | Loctite 243, 10 ml |
| O | 293600112 | Engine Oil |
| 1 | 420910200 | Camshaft Support |
| 2 | 420910202 | Camshaft Support |
| 3 | 420910205 | Camshaft Support |
| 4 | 420620850 | Camshaft, Intake |
| 5 | 420620840 | CAMSHAFT, EXHAUST - Call your local BRP dealership |
| 6 | 420254730 | Swing Arm Shaft |
| 7 | 420956060 | Oil Distribution Device |
| 8 | 420254722 | Finger Follower |
| 9 | 420460680 | Spacer, Interior |
| 10 | 420460685 | Spacer, Exterior |
| 11 | 420440702 | Flanged Torx Screw M6 X 55 |
| 12 | 420929600 | GROOVED PIN - Call your local BRP dealership |
| 13 | 420834930 | DRIVE GEAR, 39 TEETH - Call your local BRP dealership |
| 14 | 420834935 | MATING GEAR, 39 TEETH - Call your local BRP dealership |
| 15 | 420240780 | HEX. COLLAR SCREW M12 X 65 - Call your local BRP dealership |
| 16 | 420855070 | Camshaft Sprocket, 48 Teeth |
| 17 | 293501043 | Hex. Screw M8 X 18 |
| 18 | 420898530 | Camshaft Chain |
| 19 | 420460710 | Cover |
| 20 | 420627494 | Thrust Washer |
| 21 | 420936430 | Chain Guide |
| 22 | 420236355 | Chain Guide |
| 23 | 420440274 | Flanged Torx Screw M6 X 35 |
| 24 | 420247101 | DISTANCE SLEEVE - Call your local BRP dealership |
| 25 | 420936490 | Chain Tension Guide |
| 26 | 415129408 | Chain Tensioner |
| 27 | 420430622 | O-Ring |
| 28 | 420640455 | Plug Screw |
