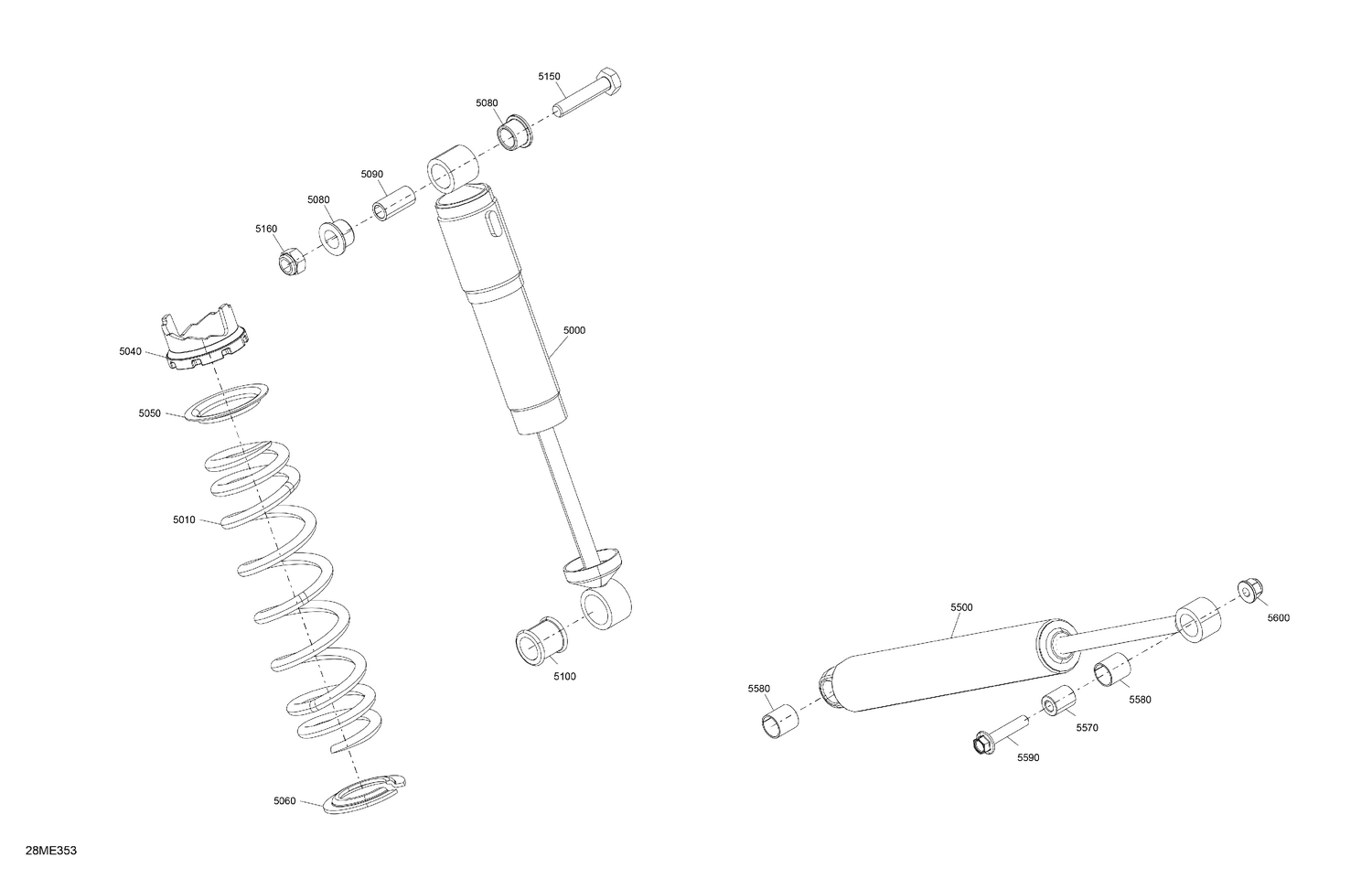

05- Suspension - Rear Shocks
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 5000 | 503195745 | Center Shock |
| 5010 | 503191882 | Black, Spring |
| 5040 | 505073625 | Adjustment Cam |
| 5050 | 503191872 | Spring Guide |
| 5060 | 503194270 | Spring Stopper |
| 5080 | 503189117 | Urethane Bushing |
| 5090 | 503189282 | Bushing |
| 5100 | 503189271 | Bushing |
| 5150 | 207005044 | Hex. Screw M10 X 1.5 X 50 |
| 5160 | 233601466 | Elastic Locking Nut M10 |
| 5500 | 503196630 | Rear Shock Absorber |
| 5570 | 503196509 | Axle Shock Absorber |
| 5580 | 505072663 | Leg Cushion |
| 5590 | 207684056 | Hex Flange Screw M8 X 40 |
