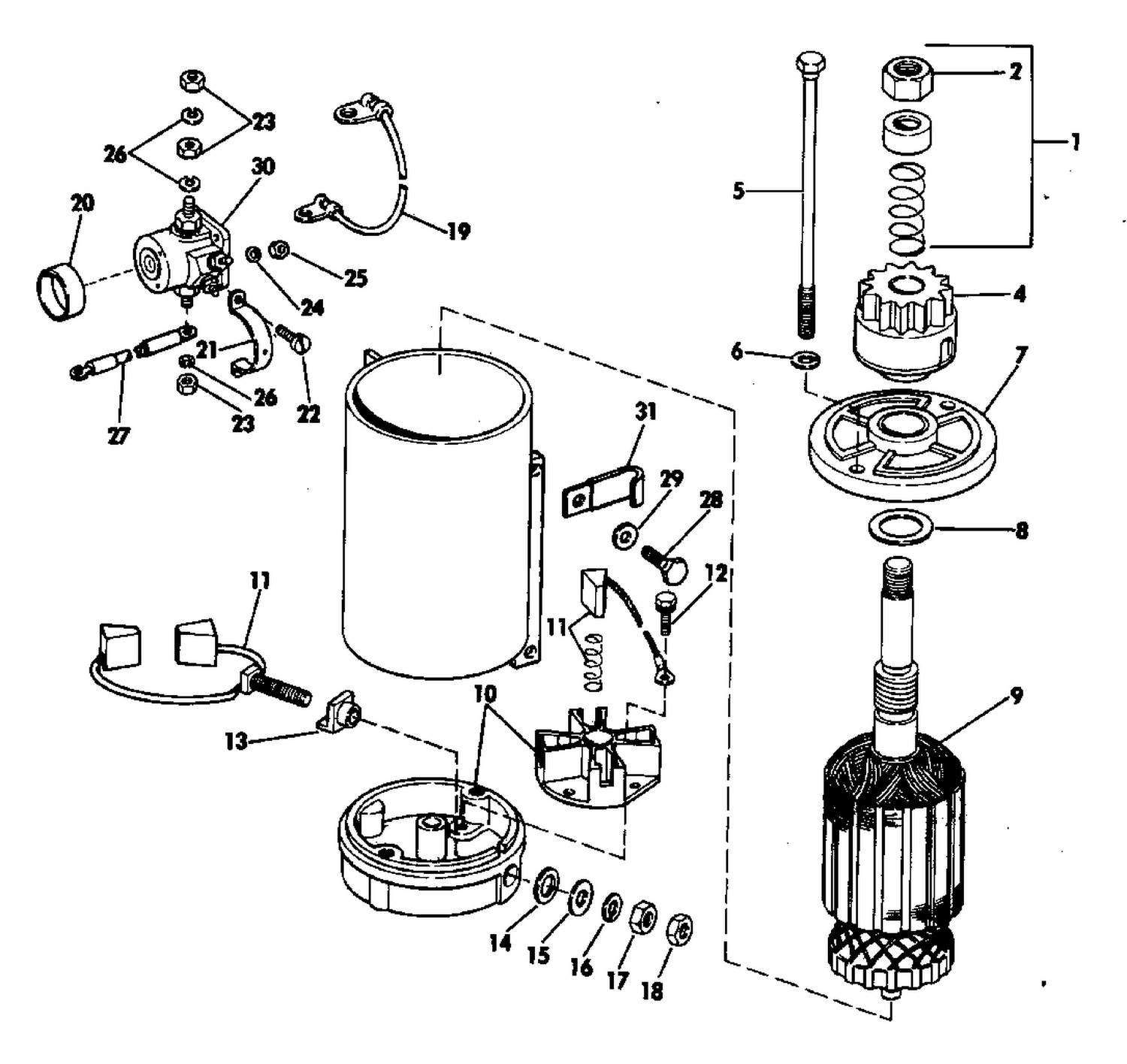

| Ref | Part Number | Description |
|---|
| 1 |
0393285 |
NUT SPRING & SPACER |
| 2 |
0393354 |
NUT SPRING & SPACER KIT This part replaces 0316740. |
| 4 |
0387683 |
DRIVE ASSY |
| 5 |
0387938 |
THRU BOLT PKG |
| 6 |
0321568 |
LOCKWASHER |
| 9 |
0387682 |
ARMATURE |
| 10 |
0386645 |
CAP ASSY ., Commutator |
| 12 |
0387680 |
BOLT |
| 17 |
0387678 |
NUT AND WASHER |
| 19 |
0580733 |
FIL, masse solénoïde |
| 20 |
0311217 |
MANCHON, solénoïde |
| 21 |
0330112 |
BRIDE, solénoïde vers démarreur This part replaces 0311218. |
| 22 |
0319292 |
SCREW, Clamp This part replaces 0308762. |
| 27 |
0581986 |
LEAD, Starter to solenoid |
| 28 |
0302479 |
VIS, démarreur vers bloc cylindres-carter |
| 0387094 |
0387094 |
ELECTRIC STARTER ASSY. |
