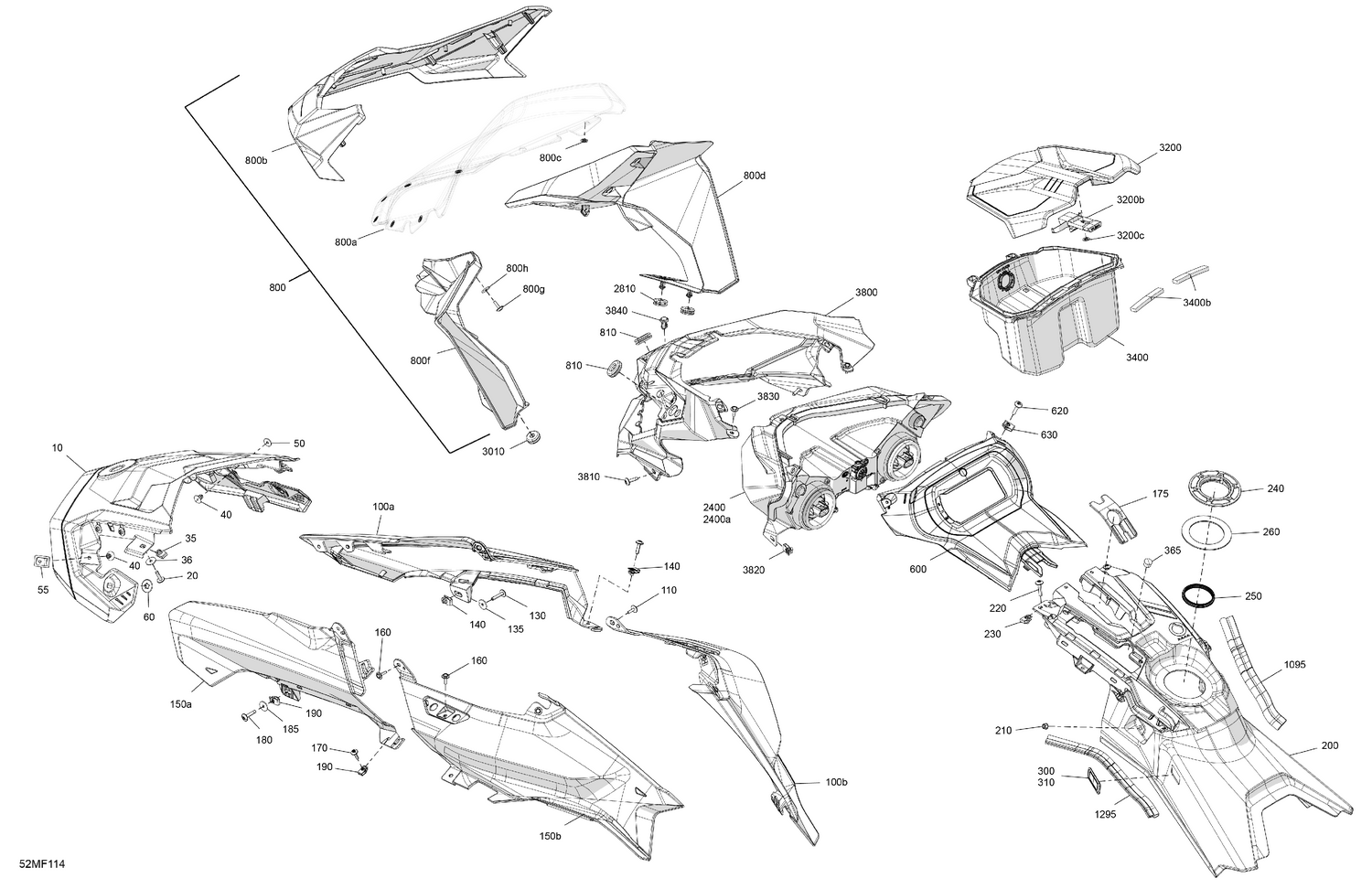

| Ref | Part Number | Description |
|---|
| 10 |
517306288 |
Deep Black, Center Hood |
| 20 |
250000528 |
Torx Screw M5 X 20 |
| 35 |
250000958 |
Panel Nut M5 X 0.8 |
| 36 |
250200166 |
Washer |
| 40 |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 50 |
517124300 |
Washer |
| 55 |
517305109 |
Rivet Plate |
| 60 |
508000853 |
Push Nut |
| 100a |
517307524 |
Neo Yellow, RH Front Hood |
| 100b |
517307525 |
Neo Yellow, RH Rear Hood |
| 110 |
250000725 |
Screw M4 X 16 |
| 130 |
250000587 |
Torx Screw M5 X 26 |
| 135 |
250200166 |
Washer |
| 140 |
250000958 |
Panel Nut M5 X 0.8 |
| 150a |
517307527 |
Hood Fl B-450 |
| 150b |
517307528 |
Neo Yellow, LH Rear Hood |
| 160 |
250000725 |
Screw M4 X 16 |
| 170 |
250000528 |
Torx Screw M5 X 20 |
| 175 |
517307744 |
Console Pad |
| 180 |
250000587 |
Torx Screw M5 X 26 |
| 185 |
250200166 |
Washer |
| 190 |
250000958 |
Panel Nut M5 X 0.8 |
| 200 |
517308119 |
Deep Black, RH Console |
| 210 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 220 |
250000587 |
Torx Screw M5 X 26 |
| 230 |
250000958 |
Panel Nut M5 X 0.8 |
| 240 |
517309507 |
Round Slotted Nut |
| 250 |
517309450 |
Gasket |
| 260 |
517309451 |
Joint |
| 300 |
517306587 |
RH Cap |
| 310 |
517306588 |
LH Cap |
| 365 |
572051500 |
Cap |
| 600 |
517307675 |
Gauge Support |
| 620 |
250000586 |
Torx Truss M5 X 20 |
| 630 |
250000958 |
Panel Nut M5 X 0.8 |
| 800a |
517306062 |
Windshield |
| 800b |
517306183 |
Deep Black, Windshield Support |
| 800c |
732610072 |
Push Nut |
| 800d |
517306063 |
Deflector RH, Black 63% Light Transm. |
| 800f |
517306064 |
Deflector LH, Black 63% Light Transm. |
| 800g |
250000889 |
Screw M4 X 16 |
| 800h |
517306524 |
Rubber Washer 4 MM |
| 810 |
517303756 |
Grommet |
| 1095 |
219704371 |
Neoprene Seal 3000 mm Long |
| 1295 |
219704371 |
Neoprene Seal 3000 mm Long |
| 2400a |
415130081 |
Bulb |
| 2810 |
517307161 |
Grommet |
| 3010 |
517307161 |
Grommet |
| 3200b |
517305779 |
Latch |
| 3200c |
732610072 |
Push Nut |
| 3400b |
517305157 |
Seal Joint |
| 3800 |
517306301 |
Headlamp Fairing |
| 3810 |
250000528 |
Torx Screw M5 X 20 |
| 3820 |
250000958 |
Panel Nut M5 X 0.8 |
| 3830 |
250000725 |
Screw M4 X 16 |
