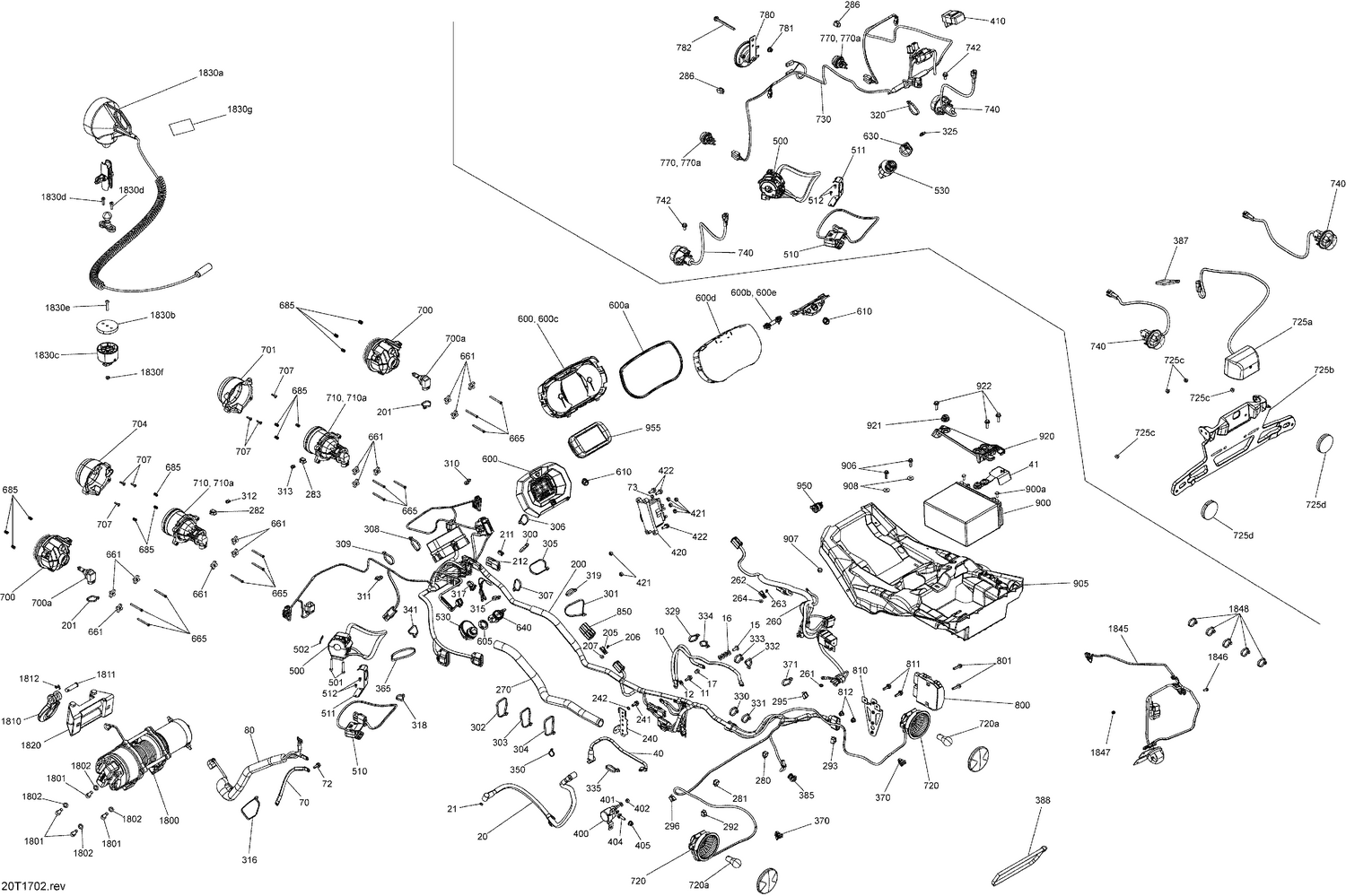

10- Electrical System - All Models
Parts (92)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 710004382 | Ground Cable |
| 11 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 12 | 234161601 | Lock Washer Helical M6 |
| 15 | 250000717 | Torx Head Screw M6 X 16 |
| 16 | 224061121 | Flat Washer |
| 17 | 232361493 | Domed Nut M6 |
| 20 | 710004377 | Positive Cable |
| 21 | 232561414 | Elastic Stop Nut M6 |
| 41 | 710006729 | Battery Cable Cap This part replaces 710002569. |
| 201 | 293750002 | Tie Wrap 142 mm |
| 205 | 270000141 | Clip |
| 206 | 390402300 | Pop Rivet 3/16" |
| 207 | 391301600 | Washer |
| 240 | 710004118 | Connector Bracket |
| 241 | 210262040 | Hex. Flange Screw M6 X 20 |
| 242 | 234461608 | External Serrated Lock Washer 6 mm |
| 280 | 414227300 | Clip |
| 281 | 414227300 | Clip |
| 282 | 414227300 | Clip |
| 283 | 414227300 | Clip |
| 292 | 414227300 | Clip |
| 293 | 414227300 | Clip |
| 295 | 414227300 | Clip |
| 296 | 414227300 | Clip |
| 300 | 293750008 | Tie Wrap 368 mm |
| 301 | 293750008 | Tie Wrap 368 mm |
| 302 | 293750008 | Tie Wrap 368 mm |
| 303 | 293750008 | Tie Wrap 368 mm |
| 304 | 293750008 | Tie Wrap 368 mm |
| 305 | 293750008 | Tie Wrap 368 mm |
| 306 | 293750008 | Tie Wrap 368 mm |
| 307 | 293750008 | Tie Wrap 368 mm |
| 308 | 293750008 | Tie Wrap 368 mm |
| 309 | 293750008 | Tie Wrap 368 mm |
| 310 | 414115200 | Tie-Rap 180 mm |
| 311 | 414115200 | Tie-Rap 180 mm |
| 312 | 414115200 | Tie-Rap 180 mm |
| 313 | 414115200 | Tie-Rap 180 mm |
| 315 | 414115200 | Tie-Rap 180 mm |
| 316 | 293750008 | Tie Wrap 368 mm |
| 317 | 710002896 | Tie-Rap Clip |
| 318 | 414115200 | Tie-Rap 180 mm |
| 319 | 293750008 | Tie Wrap 368 mm |
| 320 | 293750008 | Tie Wrap 368 mm |
| 325 | 414115200 | Tie-Rap 180 mm |
| 329 | 414115200 | Tie-Rap 180 mm |
| 330 | 414115200 | Tie-Rap 180 mm |
| 331 | 414115200 | Tie-Rap 180 mm |
| 332 | 414115200 | Tie-Rap 180 mm |
| 333 | 414115200 | Tie-Rap 180 mm |
| 334 | 414115200 | Tie-Rap 180 mm |
| 335 | 414115200 | Tie-Rap 180 mm |
| 341 | 414115200 | Tie-Rap 180 mm |
| 350 | 293750001 | Tie Wrap 94 mm |
| 365 | 293750008 | Tie Wrap 368 mm |
| 370 | 293730040 | Mount Dart |
| 371 | 414115200 | Tie-Rap 180 mm |
| 385 | 710002896 | Tie-Rap Clip |
| 387 | 293750008 | Tie Wrap 368 mm |
| 388 | 293750041 | Tie-rap 627 mm |
| 400 | 710007777 | Starter Relay This part replaces 710001364. |
| 401 | 234161601 | Lock Washer Helical M6 |
| 402 | 232561414 | Elastic Stop Nut M6 |
| 404 | 207662054 | Hex. Flange Screw M6 X 20 |
| 405 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 600a | 710002092 | Trim Ring |
| 600b | 710001473 | Button |
| 600c | 415129348 | Gauge Ring |
| 600e | 415129355 | Speedometer Button |
| 661 | 572106600 | Handle |
| 665 | 250000718 | Hex. Screw K40 X 45 |
| 685 | 517168600 | Spring |
| 700a | 715900141 | Bulb 12V 55W |
| 701 | 710002291 | RH High Front Housing |
| 704 | 710002292 | LH High Front Housing |
| 707 | 250000723 | Phillips Screw K40 X 16 |
| 710a | 415129249 | Halogen Bulb |
| 720a | 520000758 | Bulb |
| 801 | 210262550 | Hex. Flange Forming Screw M6 X 25 |
| 810 | 710001752 | Rectifier Support |
| 811 | 207662044 | Hex. Flange Screw M6 X 20 |
| 812 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 850 | 710003006 | Housing |
| 900a | 250000282 | Battery Bolt Kit |
| 905 | 710008370 | Battery Support This part replaces 710003990. |
| 906 | 210262050 | Hexagonal Head Screw |
| 907 | 293830005 | Rubber Bumper |
| 908 | 234062670 | Stainless Steel Flat Washer |
| 920 | 710009129 | Retaining Plate This part replaces 710002404. |
| 921 | 705014429 | Rubber Stopper This part replaces 705003666. |
| 922 | 207662054 | Hex. Flange Screw M6 X 20 |
| 950 | 710001248 | DC Outlet |
