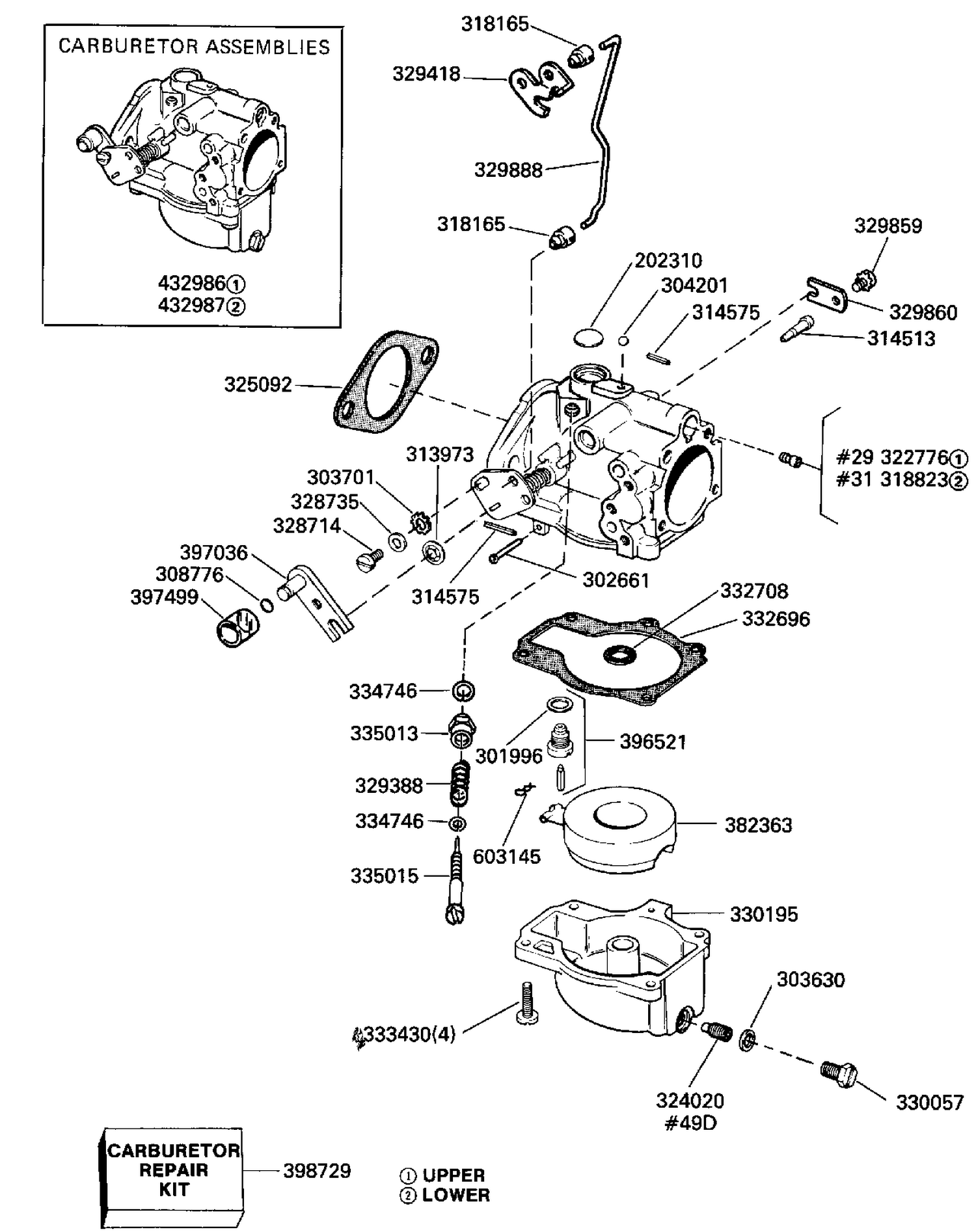

CARBURETOR
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 0308776 | 0308776 | O-RING |
| 0318165 | 0318165 | DISPOSITIF DE RETENUE, tringlerie de carburateur |
| 0322776 | 0322776 | ORIFICE 150 only |
| 0329418 | 0329418 | LEVER, Synchronization adj. |
| 0329888 | 0329888 | LINK |
| 0397036 | 0397036 | LEVER & PIN |
| 0397499 | 0397499 | ROLLER & SLEEVE ASSY. |
| 0398729 | 0396701 | CARBURETOR REPAIR KIT This part replaces 0398729. |
| 0432986 | 0432986 | CARB. ASSY. |
| 0432987 | 0432987 | CARB. ASSY. |
| 0603145 | 0336842 | CLIP, SPRING This part replaces 0603145. |
