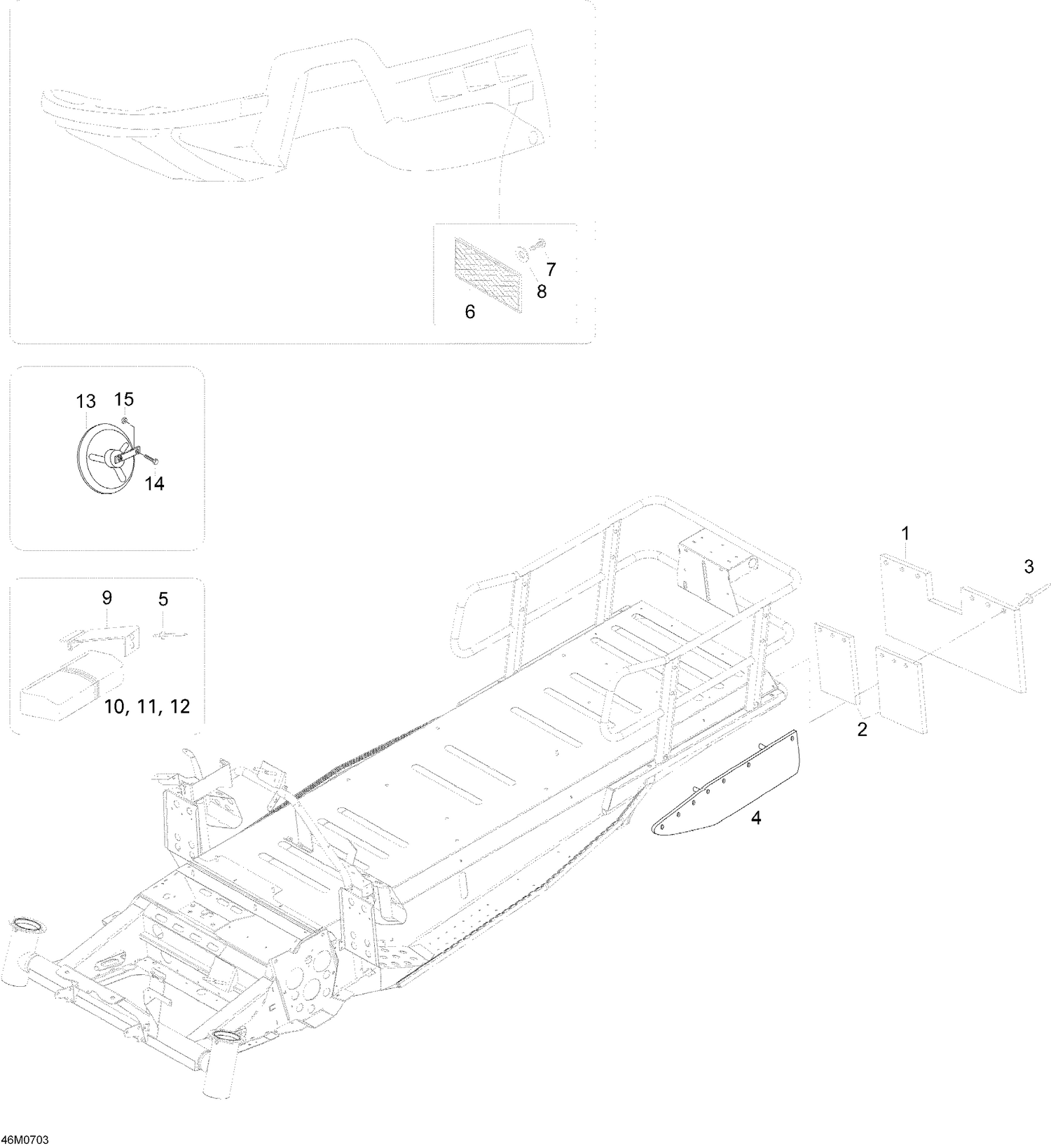

| Ref | Part Number | Description |
|---|
| 1 |
605354720 |
Snow Guard |
| 2 |
M5341770 |
Support |
| 3 |
36037 |
Black Rivet This part replaces M36037. |
| 4 |
605354746 |
LH SIDE SNOW GUARD - Call your local BRP dealership |
| 4 |
605354747 |
RH SIDE SNOW GUARD - Call your local BRP dealership |
| 5 |
36108 |
Rivet This part replaces M36108. |
| 6 |
414510200 |
REFLECTOR, AMBER - Call your local BRP dealership |
| 7 |
M40070 |
Screw |
| 8 |
234451418 |
WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership |
| 9 |
M5346728 |
SPRING PLATE - Call your local BRP dealership |
| 10 |
605352219 |
TOOL SET - Call your local BRP dealership |
| 11 |
A50121179000 |
TOOL BOX - Call your local BRP dealership |
| 12 |
Not |
Available As Spare Part - Box Cover |
| 13 |
M42016 |
HORN - Call your local BRP dealership |
| 14 |
207161644 |
Hex. Screw M6 X 16 |
