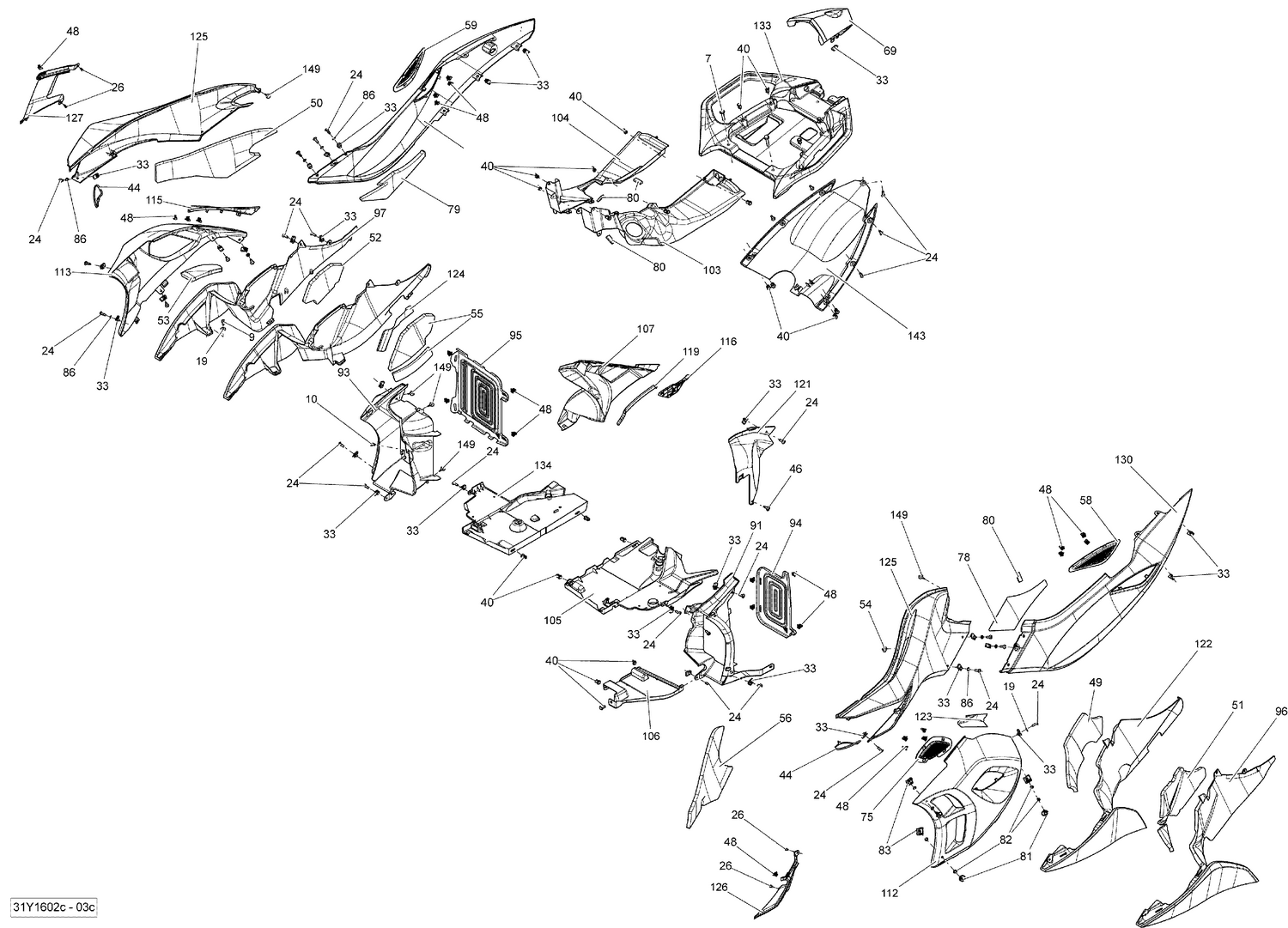

| Ref | Part Number | Description |
|---|
| 7 |
207584034 |
Hex. Flange Screw, Scotch Grip |
| 9 |
210261250 |
Hex. Flange Screw M6 X 12 |
| 10 |
210261650 |
Hex. Flange Screw M6 X 16 |
| 19 |
234062670 |
Stainless Steel Flat Washer |
| 24 |
250000350 |
Torx Truss Screw M6 X 20 |
| 26 |
250000577 |
Torx Truss Screw K40 X 12 |
| 33 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250100113. |
| 40 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 44 |
293750008 |
Tie Wrap 368 mm |
| 46 |
414745900 |
Tuflock Phillips Plastic Screw |
| 48 |
517302785 |
Edge Clip |
| 49 |
518324753 |
LH ROCKER PANEL FOAM - Call your local BRP dealership |
| 50 |
518325518 |
RH Upper Side Panel Foam |
| 51 |
518327010 |
LH ROCKER PANEL FOAM - Call your local BRP dealership |
| 52 |
518327011 |
RH ROCKER PANEL FOAM - Call your local BRP dealership |
| 53 |
518327438 |
RH LATERAL PANEL FOAM - Call your local BRP dealership |
| 54 |
518327441 |
Lateral Console Foam |
| 55 |
518327520 |
RH Rocker Panel Foam |
| 56 |
518327600 |
LH UPPER PANEL FOAM - Call your local BRP dealership |
| 58 |
705001542 |
LH REAR GRILL - Call your local BRP dealership |
| 59 |
705001544 |
RH REAR GRILL - Call your local BRP dealership |
| 69 |
705004657 |
Steel Black Rear Tip |
| 69 |
705010189 |
RED REAR TIP - Call your local BRP dealership |
| 75 |
705002369 |
LH LATERAL GRILL - Call your local BRP dealership |
| 78 |
705002508 |
LH Heat Reflective Sheet |
| 79 |
705002509 |
BLACK RH REAR PANEL FOAM - Call your local BRP dealership |
| 80 |
219704364 |
Neoprene Seal (1PAC=3M) |
| 81 |
705002649 |
Quarter Turn Screw |
| 82 |
705002650 |
Washer |
| 83 |
705002651 |
Quarter Turn Nut |
| 86 |
705003207 |
Plastic Washer |
| 91 |
705004636 |
LH RADIATOR MOULDING - Call your local BRP dealership |
| 93 |
705005261 |
RH RADIATOR MOULDING - Call your local BRP dealership |
| 94 |
705005262 |
LH RADIATOR GRILL - Call your local BRP dealership |
| 95 |
705005263 |
RH RADIATOR GRILL - Call your local BRP dealership |
| 96 |
705005266 |
LH ROCKER PANEL - Call your local BRP dealership |
| 97 |
705005267 |
RH Rocker Panel |
| 103 |
705005409 |
LH Tank Cover |
| 104 |
705005410 |
RH TANK COVER - Call your local BRP dealership |
| 105 |
705005413 |
LH DEFLECTOR PANNEL - Call your local BRP dealership |
| 106 |
705005447 |
LH Skid Plate |
| 107 |
705005462 |
HEAT DEFLECTOR - Call your local BRP dealership |
| 112 |
705006251 |
Black LH Side Panel |
| 113 |
705006242 |
Black RH Side Panel |
| 115 |
705006531 |
UPPER HEAT SEAL - Call your local BRP dealership |
| 116 |
705006532 |
LOWER HEAT SEAT - Call your local BRP dealership |
| 119 |
219704364 |
Neoprene Seal (1PAC=3M) |
| 121 |
705006981 |
LH INNER HEAT DEFLECTOR - Call your local BRP dealership |
| 122 |
705006985 |
LH Rocker Panel |
| 123 |
705007029 |
HEAT SHIELD - Call your local BRP dealership |
| 124 |
705007053 |
Heat Shield Rocker Panel |
| 125 |
705007265 |
NEEDS DESCRIPTION This part replaces 705007744. |
| 125 |
705007743 |
STEEL BLACK LH UPPER SIDE PANEL - Call your local BRP dealership |
| 125 |
705009971 |
PANEL_BODY UP L B-389 - Call your local BRP dealership |
| 126 |
705007329 |
LH UPPER SIDE PANEL - Call your local BRP dealership |
| 127 |
705007330 |
RH UPPER SIDE PANEL - Call your local BRP dealership |
| 130 |
705008908 |
PANEL_BODY REAR L B-266 - Call your local BRP dealership |
| 130 |
705008909 |
PANEL_BODY REAR R B-266 - Call your local BRP dealership |
| 133 |
705009315 |
Passenger Handle |
| 134 |
705009351 |
DEFLECTOR_BODY PANEL RH - Call your local BRP dealership |
| 143 |
705006829 |
UNDER TAIL COVER - Call your local BRP dealership This part replaces 705010190. |
| 143 |
705010191 |
RED UNDER TAIL COVER - Call your local BRP dealership |
