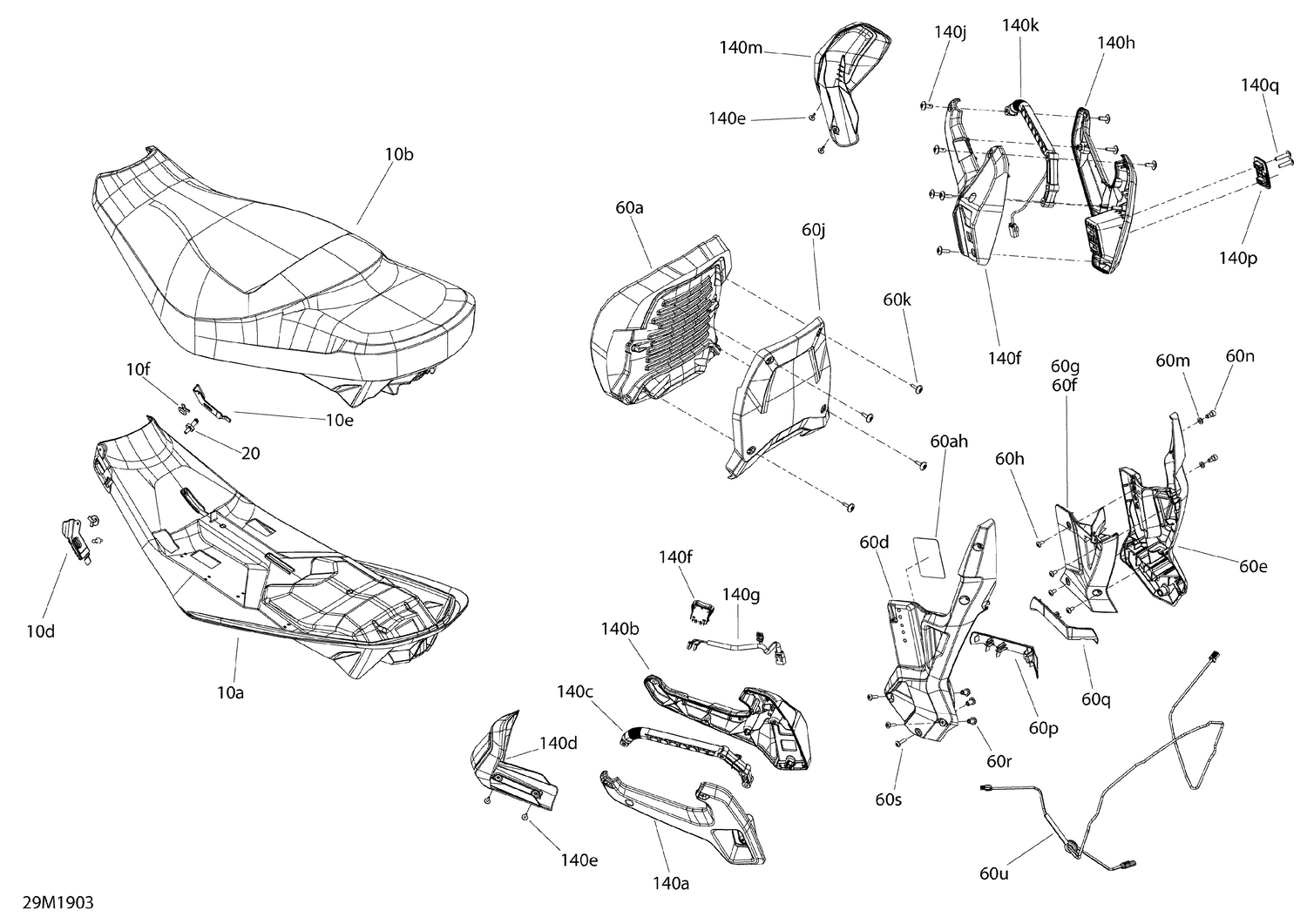

09- Seat - REV GEN4
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 510006556 | Base De Siège 1+1 |
| 10b | 510006336 | Seat Foam |
| 10d | 510006530 | LH Seat Latch |
| 10e | 510006531 | RH Seat Latch |
| 10f | 293150222 | Pop Rivet 3/16" |
| 20 | 510006514 | Pin |
| 60a | 510006363 | Backrest Foam |
| 60d | 510006479 | LH Arm |
| 60e | 510006480 | RH Arm |
| 60f | 510006706 | LH Trim |
| 60g | 510006705 | RH Trim |
| 60h | 250000789 | Torx Truss M6X14 |
| 60j | 510006366 | Backrest Trim |
| 60k | 250000889 | Screw M4 X 16 |
| 60m | 234080600 | Flat Washer M8, Stainless |
| 60n | 205081654 | Screw-Socket HD.DIN.912 |
| 60p | 510006169 | LH Base Cover |
| 60q | 510006170 | RH Base Cover |
| 60r | 511000822 | Threaded Insert |
| 60s | 250001000 | Torx-Truss M/S M6 X 25 |
| 60u | 515178490 | Seat Wiring Harness |
| 140a | 510006492 | LH Ext. Passenger Hand Hold |
| 140b | 510006527 | LH Int. Passenger Hand Hold |
| 140c | 510006488 | Passenger Heated Handhold |
| 140d | 510006495 | LH Passenger Handle Deflector |
| 140e | 250000889 | Screw M4 X 16 |
| 140f | 515178505 | Rocker Switch |
| 140g | 515178464 | Heated Grip Wiring Harness |
| 140h | 510006486 | RH Ext. Passenger Hand Hold |
| 140j | 510006487 | RH Int. Passenger Hand Hold |
| 140k | 510006488 | Passenger Heated Handhold |
| 140m | 510006489 | RH Passenger Handle Deflector |
| 140p | 510006602 | Passenger Handle Trim |
| 140q | 250000256 | Torx Truss Screw M8 X 35 |
