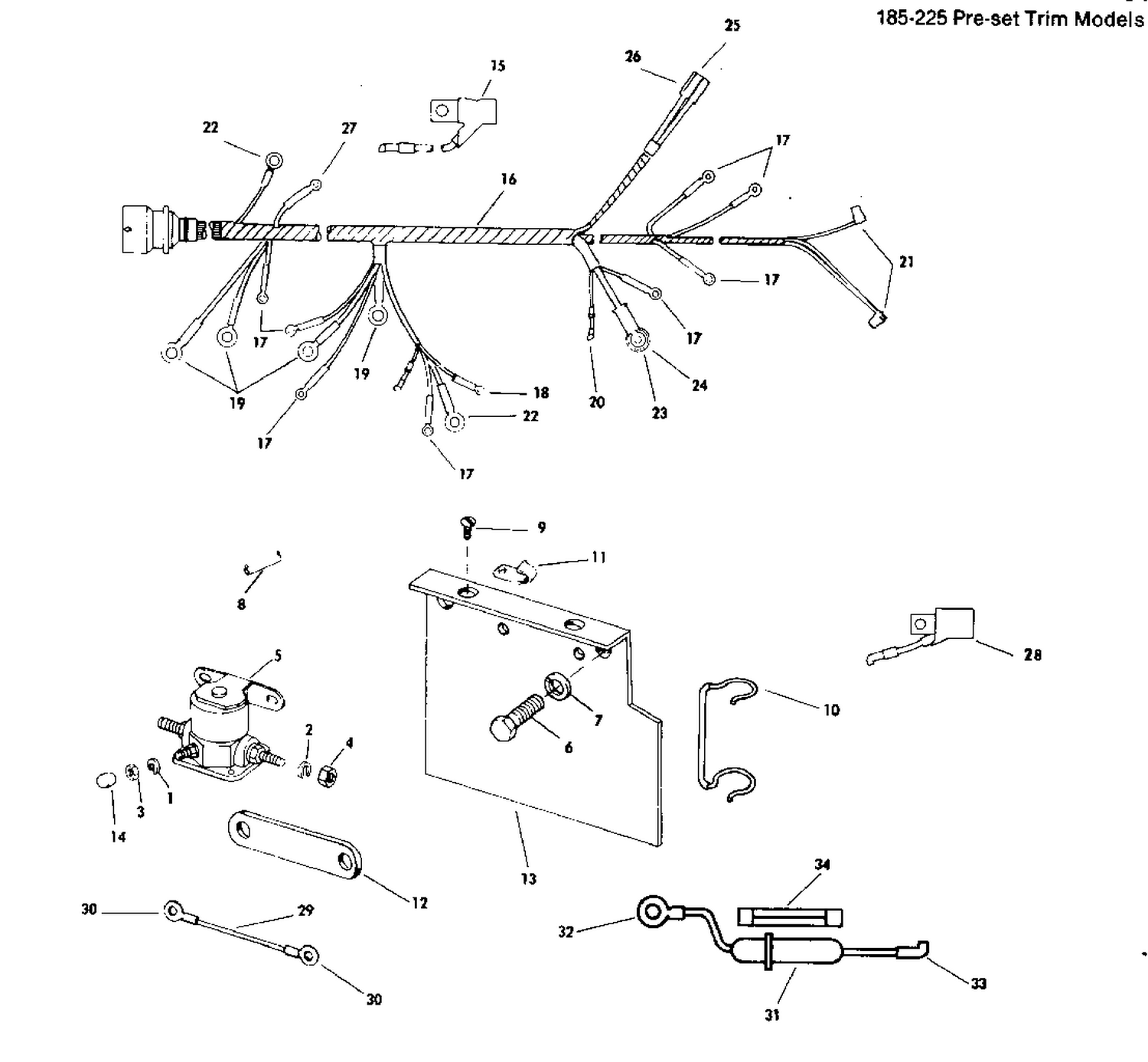

SOLENOID & CABLES GROUP 185-225 HP PRE-SET TRIM
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 5 | 0985063 | SOLENOID This part replaces 0981410. |
| 6 | 0306831 | BATTERY CABLE ASSY. |
| 6 | 0317753 | SCREW |
| 8 | 0314936 | HEAT SHRINK |
| 9 | 0303791 | SCREW |
| 11 | 0909424 | CLAMP |
| 12 | 0909450 | BUS BAR |
| 13 | 0909618 | BRACKET |
| 14 | 0909728 | STUD CAP |
| 15 | 0981849 | FUSE & LEAD ASSY This part replaces 0979788. |
| 15 | 0982093 | FUSE & LEAD ASSY |
| 16 | 0981618 | CABLE ASSY |
| 16 | 0981844 | CABLE ASSY |
| 22 | 3100502 | RING TERMINAL |
| 25 | 0510469 | TAB |
| 26 | 0510471 | CONNECTOR |
| 28 | 0981848 | FUSE & LEAD ASSY, Tilt This part replaces 0981419. |
| 28 | 0981849 | FUSE & LEAD ASSY |
| 29 | 0981856 | LEAD ASSEMBLY |
| 30 | 0020453 | TERMINAL |
| 31 | 0982133 | FUSEHOLDER & LEAD |
| 33 | 0314844 | KNIFE DISCONNECT |
