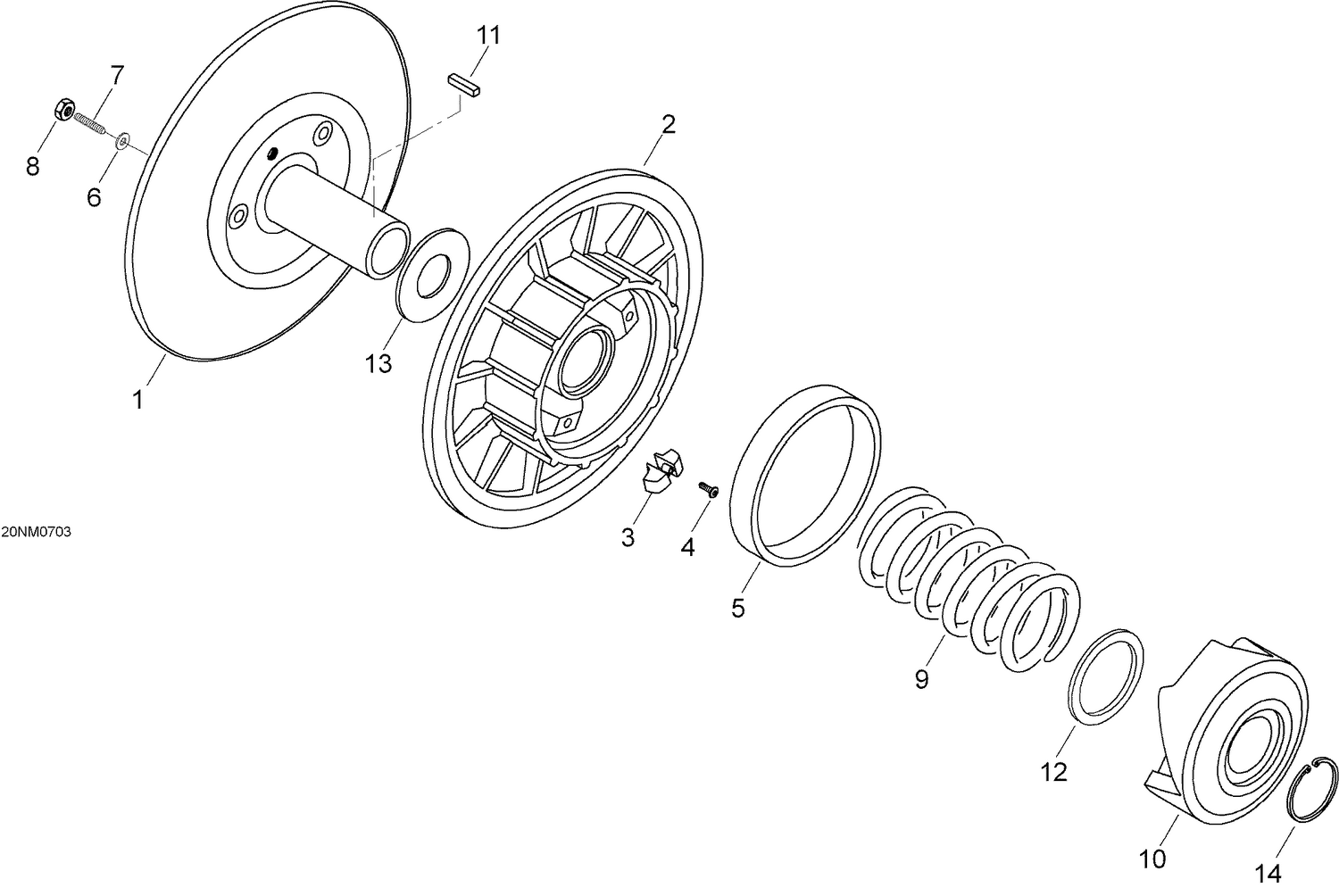

| Ref | Part Number | Description |
|---|
| 1 |
140065 |
Fixed half pulley |
| 3 |
140068 |
Cam shoe |
| 4 |
619100006 |
HEX. SCREW SET - Call your local BRP dealership |
| 5 |
140053 |
Cam bushing |
| 6 |
420245370 |
WASHER - Call your local BRP dealership |
| 7 |
619100003 |
Hex. socket set screw - Call your local BRP dealership |
| 8 |
232061414 |
Nut M6 |
| 9 |
417119100 |
RELEASE SPRING - Call your local BRP dealership |
| 10 |
140067 |
Fix cam 40 |
| 11 |
417119400 |
KEY - Call your local BRP dealership |
| 12 |
619100007 |
STOP WASHER - Call your local BRP dealership |
| 13 |
504099600 |
STOPPER WASHER - Call your local BRP dealership |
