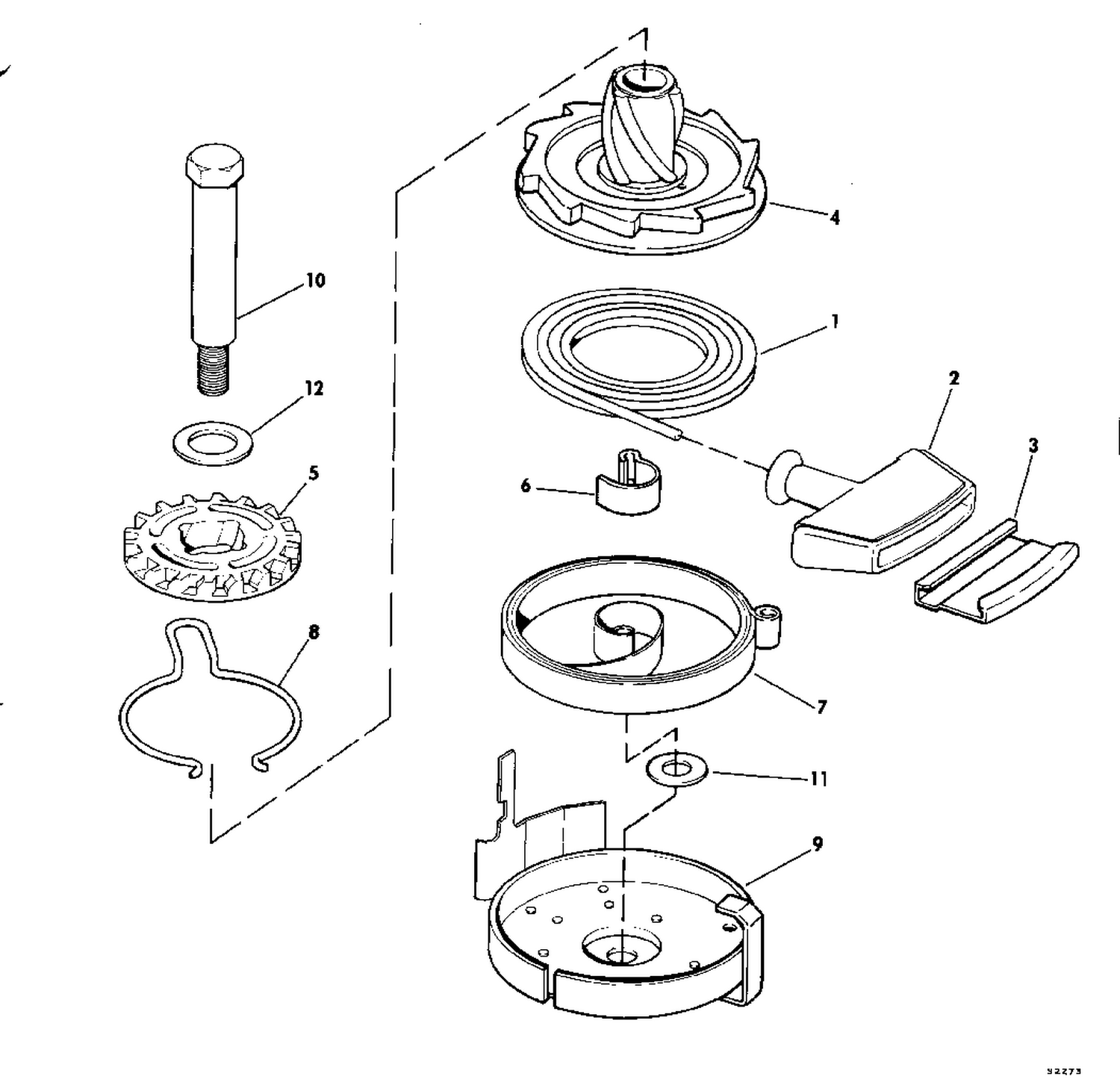

REWIND STARTER
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | ROPE,Starter | Ref: 2 0324513 HANDLE 0324513 |
| 3 | 0389713 | ANCHOR, Rope to handle |
| 4 | 0324909 | STARTER PULLEY |
| 5 | 0318940 | PINION, Rewind starter |
| 6 | 0323654 | RETAINER, Starter spring |
| 7 | 0323653 | SPRING, Rewind starter |
| 8 | 0318943 | SPRING, Pinion |
| 9 | 0389204 | CUP AND GUIDE ASSEMBLY |
| 10 | 0318936 | SCREW, Starter to manifold |
| 0281355 | 0389951 | REWIND STARTER ASSEMBLY This part replaces 0281355. |
