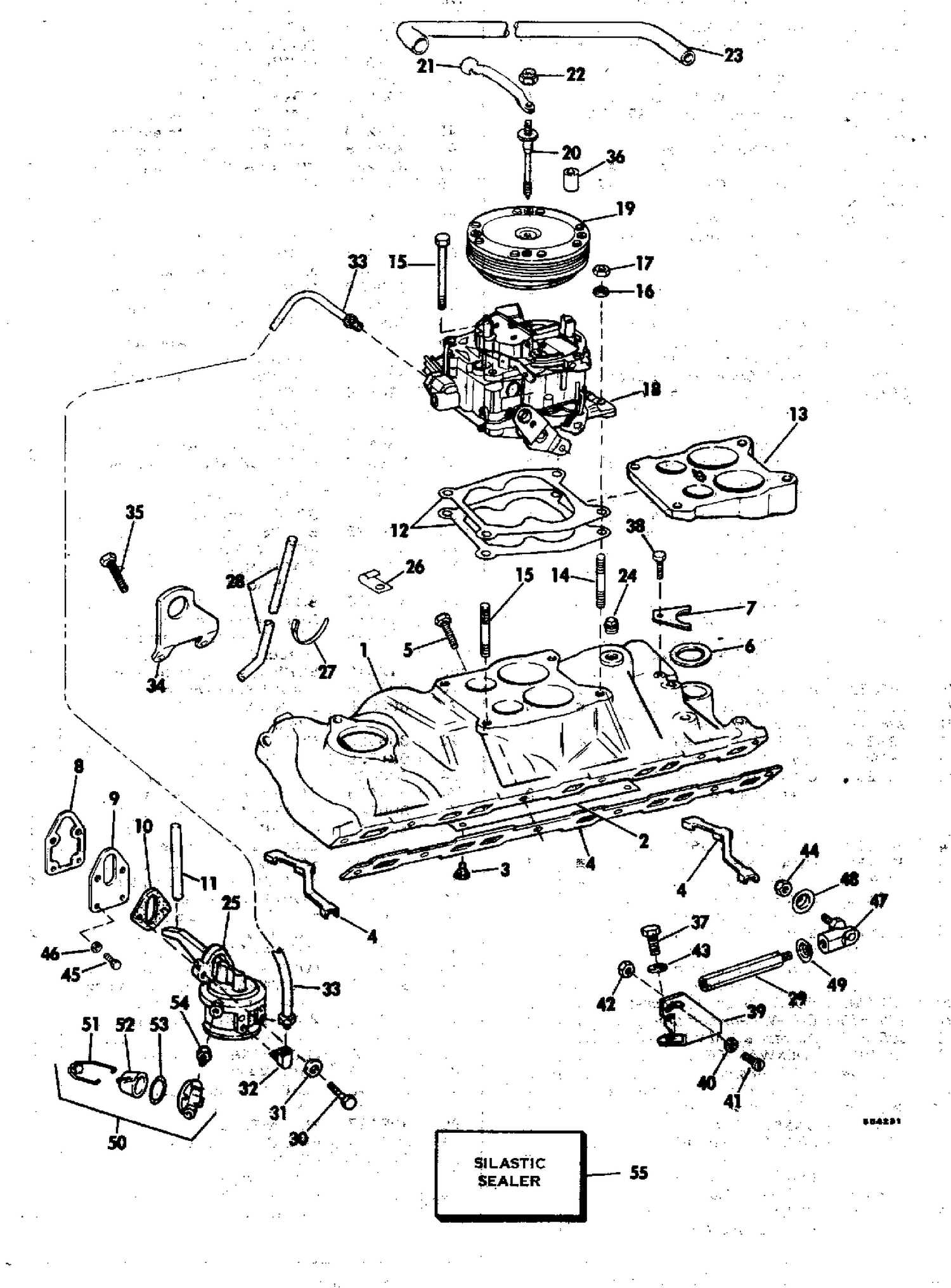

| Ref | Part Number | Description |
|---|
| 1 |
0333839 |
MANIFOLD, Intake |
| 1 |
0343765 |
COLLIER, flexible d'indicateur d’éjection |
| 1 |
9776705 |
GASKET, Pump to plate |
| 2 |
0346243 |
GUARD, Intake manifold |
| 2 |
6271071 |
GUARD, Intake manifold |
| 3 |
3959544 |
STUD, Gaurd |
| 4 |
0352670 |
GASKET SET, Manifold ends |
| 4 |
14024393 |
GASKET SET, Manifold sides |
| 4 |
14024464 |
GASKET SET, Manifold |
| 5 |
0120394 |
BOLD, Manifold to head |
| 5 |
0435611 |
BOLT, Hex, manifold to head, 3/8-16 x 1-1/8" |
| 6 |
3932344 |
GASKET, Dist. to manifold |
| 7 |
3704912 |
CLAMP, Distributor |
| 8 |
3705044 |
GASKET, Fuel pump mounting plate |
| 9 |
37019599 |
PLATE, Fuel pump mounting |
| 11 |
3704817 |
PUSH ROD, Fuel pump |
| 12 |
0908765 |
GASKET, Carburetor |
| 12 |
3852437 |
GASKET, Adapter to manifold This part replaces 0908238. |
| 13 |
0315830 |
WEDGE, Carburetor to manifold |
| 14 |
0315820 |
STUD, Carburetor mounting, rear |
| 15 |
0315821 |
STUD, Carburetor mounting, front |
| 15 |
9419047 |
SCREW, Carb to manifold |
| 16 |
0309948 |
WASHER, Stud |
| 16 |
0311388 |
ORING |
| 18 |
0982221 |
CARBURETOR ASSY |
| 18 |
0982223 |
CARBURETOR ASSY |
| 18 |
0982227 |
CARBURETOR ASSY |
| 19 |
0981433 |
FLAME ARRESTOR |
| 19 |
3854026 |
FLAME ARRESTOR This part replaces 0982304. |
| 20 |
0909428 |
STUD, Flame arrestor |
| 20 |
0909536 |
STUD, Flame arrestor |
| 21 |
3852438 |
CONNECTOR, Crankcase vent This part replaces 0908240. |
| 22 |
3852420 |
LOCKNUT, Throttle lever This part replaces 0900402. |
| 23 |
HOSE, |
Crankcase vent |
| 24 |
3852075 |
PLUG, Intake manifold This part replaces 0307948. |
| 25 |
0982228 |
FUEL PUMP ASSY |
| 25 |
3855276 |
FUEL PUMP ASSY. This part replaces 0981650. |
| 26 |
0310846 |
CLAMP, Overflow hose |
| 27 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 28 |
0909938 |
HOSE, Fuel overflow |
| 29 |
0909364 |
SPACER, Ball joint |
| 29 |
0909365 |
SPACER, Ball joint |
| 31 |
0120177 |
L'WASHER, Alternator to brkt |
| 32 |
3852453 |
FITTING, Cover, return line This part replaces 0908644. |
| 33 |
0981431 |
FUEL LINE ASSY |
| 33 |
0981666 |
FUEL LINE ASSY |
| 34 |
0312782 |
LIFT BRACKET, Byl.head |
| 34 |
3921984 |
LIFT BRACKET, Rear |
| 34 |
3994055 |
LIFT BRACKET, Front |
| 34 |
3995632 |
LIFT BRACKET, Front |
| 35 |
0180120 |
SCREW, Lift bracket, front |
| 35 |
0312997 |
SCREW, Adapter to engine |
| 36 |
0908825 |
SPACER |
| 37 |
0312997 |
SCREW, Adapter to engine |
| 38 |
0306834 |
BOLT, Throttle lever retainer |
| 39 |
0981369 |
THROTTLE BRACKET ASSY |
| 40 |
0303497 |
WASHER |
| 41 |
0310859 |
BOLT, Throttle lever to carb |
| 45 |
0306487 |
SCREW |
| 47 |
0379926 |
BALL JOINT |
| 48 |
0510150 |
WASHER, Ball joint |
| 49 |
0909362 |
PILOT, Ball joint |
| 50 |
0980524 |
BOWL ASSEMBLY |
| 51 |
0908872 |
BAIL |
| 52 |
0384154 |
BOWL & GASKET |
| 54 |
0908647 |
FITTING, Pump to bowl |
