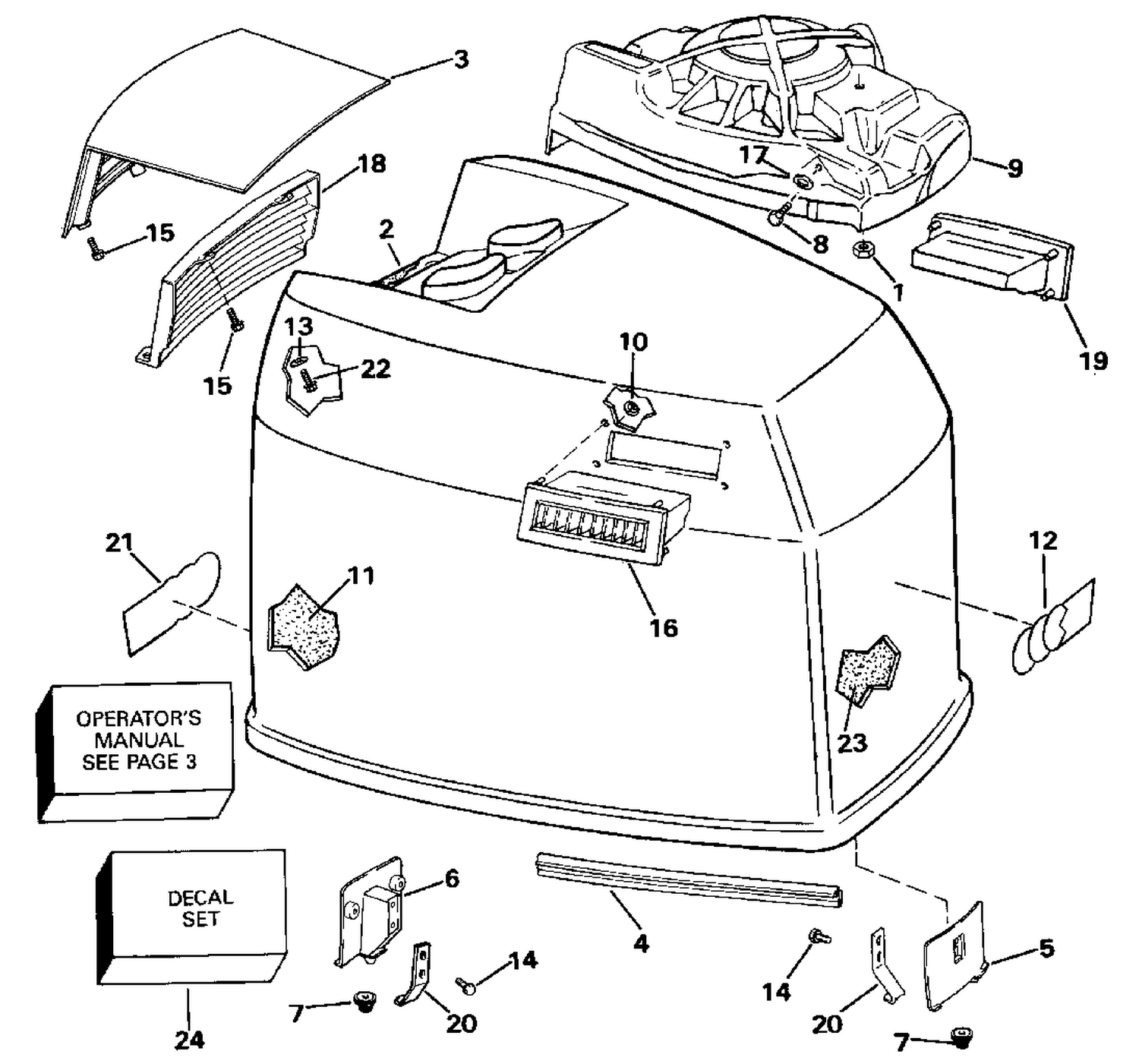

ENGINE COVER - EVINRUDE - 185
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0336188 | NUT, Baffle |
| 2 | 0334949 | SOUND BLANKET, Rear |
| 3 | 0331944 | TILT HANDLE |
| 5 | 0336991 | BRACKET, Locating, front |
| 8 | 0334967 | SCREW, Baffle |
| 9 | 0334911 | BAFFLE |
| 11 | 0334947 | SOUND BLANKET, Side |
| 12 | 0210944 | APPLIQUE, Front |
| 16 | 0334910 | LOUVER, Engine cover, stbd |
| 18 | 0331945 | BAFFLE |
| 19 | 0334909 | LOUVER, Engine cover, port |
| 21 | 0210945 | APPLIQUE, Rear |
| 23 | 0334948 | SOUND BLANKET, Front |
| 0284171 | 0284171 | ENGINE COVER ASSY., 185 |
