| Ref | Part Number | Description |
|---|
| 1 |
0390440 |
INTAKE MANIFOLD ASSEMBLY |
| 3 |
0314956 |
STUD |
| 4 |
0330115 |
CLAMP, Power pack connector This part replaces 0318174. |
| 5 |
0329594 |
SCREW, Cam follower This part replaces 0303737. |
| 7 |
0392988 |
CHECK VALVE This part replaces 0390436. |
| 8 |
CARB. |
ASSY., Lower |
| 9 |
CARB. |
ASSY., Upper |
| 10 |
CARB. |
ASSY., Middle |
| 11 |
0389823 |
CLAPET |
| 12 |
0313217 |
SCREW |
| 13 |
0329718 |
GASKET, Manifold to c'case This part replaces 0321198. |
| 15 |
0320930 |
COVER, Air silencer This part replaces 0387871. |
| 16 |
0320575 |
ADJ LEVER, Throttle link |
| 17 |
5007356 |
Kit Ay This part replaces 0582111. |
| 22 |
0511807 |
COVER&GASKET AY |
| 23 |
0333448 |
GASKET This part replaces 0511808. |
| 25 |
0333448 |
GASKET This part replaces 0511810. |
| 31 |
0511806 |
HOUSING |
| 32 |
0321907 |
GASKET, Leaf plate |
| 33 |
0313329 |
LOCKWASHER, Carburetor link |
| 34 |
0322722 |
FILLER BLOCK, 175, 185, 235 |
| 36 |
0330665 |
THROTTLE AM This part replaces 0326170. |
| 37 |
0133451 |
SCREW, Leaf plate manifold, short |
| 38 |
HOSE, |
Air silencer |
| 40 |
0306418 |
VIS, ancrage |
| 42 |
0328695 |
CLAMP, Engine cable This part replaces 0323480. |
| 44 |
0321218 |
CLAMP, Choke solenoid |
| 45 |
0319292 |
SCREW, Clamp This part replaces 0308762. |
| 46 |
0319771 |
GASKET SET, Air silencer |
| 47 |
0327707 |
GASKET, Air silencer |
| 49 |
0321183 |
GASKET, Cover |
| 50 |
0432272 |
LINK AND PIN, Throttle arm This part replaces 0387378. |
| 54 |
0204445 |
BOW WASHER |
| 55 |
0314416 |
BUMBER, Advance screw |
| 56 |
0317615 |
SCERW,Spark advance |
| 60 |
0316291 |
NUT |
| 61 |
0391254 |
BASE, Air silencer |
| 62 |
0325388 |
RETAINER, Air silencer base |
| 64 |
0317000 |
COLLIER, câble |
| 65 |
HOSE, |
Primer solenoid system |
| 66 |
0325563 |
CLAMP, Connector, timer to power pack |
| 67 |
0325569 |
T, amorçage |
| 68 |
0325637 |
CLAMP, Hose, intake manifold |
| 69 |
0315287 |
SCREW |

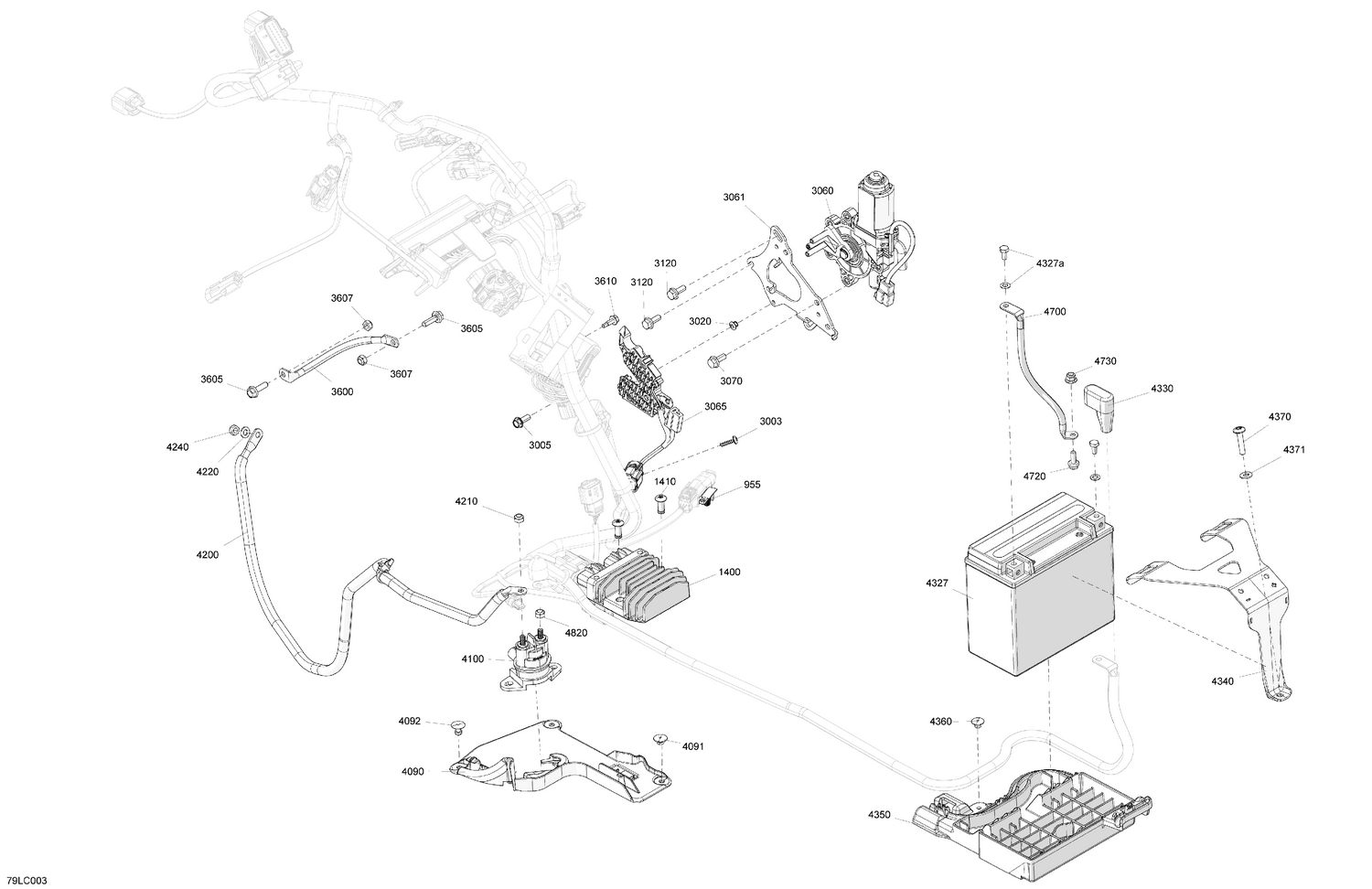

| 955 |
515178223 |
Clip Connector |
| 1400 |
710010539 |
Voltage Regulator This part replaces 710005569. |
| 1410 |
293150182 |
Monobolt Rivet 6.4 |
| 3003 |
250000742 |
Torx Screw M5 X 14 |
| 3005 |
250001062 |
Hex. Flanged Screw M6 X 16 |
| 3020 |
390402200 |
Pop Rivet 3/16 |
| 3060 |
515180200 |
Engine Assembly |
| 3061 |
515179332 |
Stop Plate |
| 3070 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 3120 |
207561644 |
Hex Flange Screw M6 X 16, Scotch Grip |
| 3600 |
515178338 |
Ground Wire |
| 3605 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 3607 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 3610 |
250000911 |
Hex. Flange Screw M5 X 16 |
| 4090 |
515178244 |
Support |
| 4091 |
293150103 |
Pop Rivet 3/16 |
| 4092 |
293150104 |
Pop Rivet 3/16 |
| 4100 |
278003012 |
Starter Relay |
| 4200 |
515178336 |
Battery Wire |
| 4210 |
232561434 |
Elastic Stop Nut M6 |
| 4220 |
234061410 |
Flat Washer 6 mm |
| 4240 |
232561434 |
Elastic Stop Nut M6 |
| 4327a |
250000282 |
Battery Bolt Kit |
| 4330 |
710001817 |
Protector Cap |
| 4340 |
515178695 |
Battery Strip |
| 4350 |
515178690 |
Battery Support Under |
| 4360 |
293150103 |
Pop Rivet 3/16 |
| 4370 |
250000843 |
Torx Truss Screw M6 X 30 |
| 4371 |
224061121 |
Flat Washer |
| 4700 |
515178564 |
Cable |
| 4720 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 4730 |
233261416 |
Elastic Flanged Nut M6 X 1.0 |
