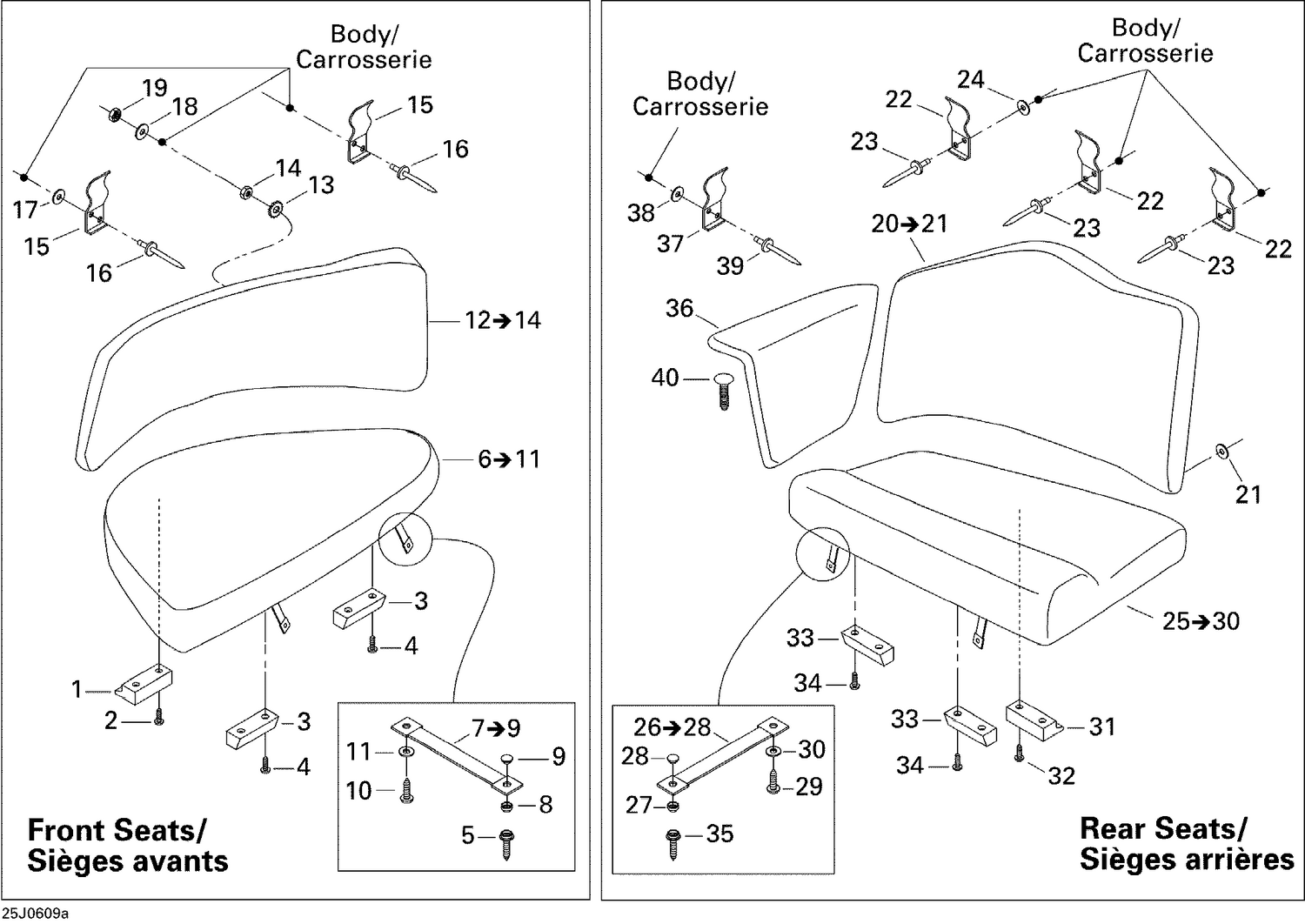

| Ref | Part Number | Description |
|---|
| 1 |
204611940 |
SEAT LATCH - Call your local BRP dealership |
| 2 |
204100039 |
SCREW 1/4?-20 X 2? - Call your local BRP dealership |
| 3 |
204611805 |
LATCH - Call your local BRP dealership |
| 4 |
209642560 |
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership |
| 5 |
202000159 |
SCREW-STUD TAPP. 3/8 SS - Call your local BRP dealership |
| 8 |
204000083 |
SNAP BASE - Call your local BRP dealership |
| 9 |
204611609 |
SNAP COVER - Call your local BRP dealership |
| 10 |
204100054 |
SCREW 8 X 3/4? - Call your local BRP dealership |
| 11 |
211200019 |
FLAT WASHER - Call your local BRP dealership |
| 13 |
234461608 |
External Serrated Lock Washer 6 mm |
| 14 |
204100060 |
Hex. Jam Nut |
| 15 |
204613998 |
SEAT SUPPORT - Call your local BRP dealership This part replaces 204610288. |
| 16 |
293150043 |
Pop Rivet 3/16" |
| 17 |
234052400 |
Flat Washer 5 mm, Stainless |
| 18 |
204100139 |
WASHER-FENDER/S.S. - Call your local BRP dealership |
| 19 |
211100026 |
HEX. NUT 1/4 - Call your local BRP dealership |
| 21 |
234062600 |
Flat Washer M6, Stainless |
| 22 |
204613998 |
SEAT SUPPORT - Call your local BRP dealership This part replaces 204610288. |
| 23 |
293150043 |
Pop Rivet 3/16" |
| 24 |
234052400 |
Flat Washer 5 mm, Stainless |
| 27 |
204000083 |
SNAP BASE - Call your local BRP dealership |
| 28 |
204611609 |
SNAP COVER - Call your local BRP dealership |
| 29 |
204100054 |
SCREW 8 X 3/4? - Call your local BRP dealership |
| 30 |
211200019 |
FLAT WASHER - Call your local BRP dealership |
| 31 |
204611940 |
SEAT LATCH - Call your local BRP dealership |
| 32 |
204100039 |
SCREW 1/4?-20 X 2? - Call your local BRP dealership |
| 33 |
204611805 |
LATCH - Call your local BRP dealership |
| 34 |
209642560 |
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership |
| 35 |
202000159 |
SCREW-STUD TAPP. 3/8 SS - Call your local BRP dealership |
| 36 |
204612989 |
Armrest, Starboard |
| 36 |
204612991 |
Armrest, Port Side |
| 37 |
204613998 |
SEAT SUPPORT - Call your local BRP dealership This part replaces 204610288. |
| 38 |
234052400 |
Flat Washer 5 mm, Stainless |
| 39 |
293150043 |
Pop Rivet 3/16" |
