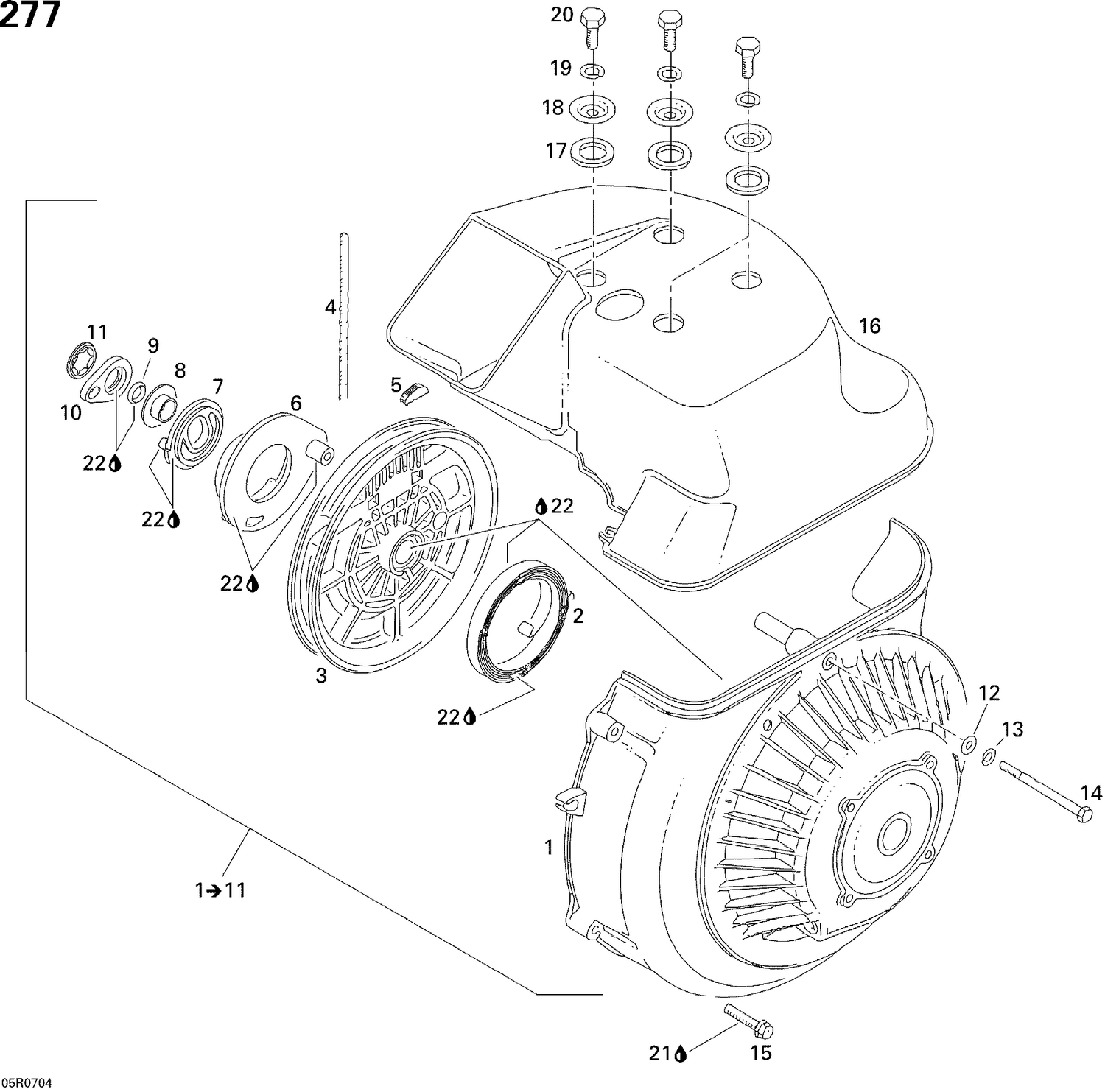

04- Rewind Starter
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | Not | Available As Spare Part - Fan Cowling |
| 2 | 420939115 | Rewind Spring |
| 3 | 420852289 | Rope Sheave |
| 4 | 219704403 | Was 412500100 Rope-Starter |
| 5 | 420852070 | Key Clamp |
| 6 | 420852296 | Pawl |
| 7 | 420852640 | Pawl Lock This part replaces 420852307. |
| 8 | 420847926 | Stage Sleeve This part replaces 420847925. |
| 9 | 420250400 | O-Ring |
| 10 | 420852520 | Lock Ring |
| 11 | 420845560 | Locking Element |
| 12 | 224061121 | Flat Washer |
| 13 | 420945751 | WASHER-LOCK DIN.128 - Call your local BRP dealership |
| 14 | 207067544 | Hex. Screw M6 X 75 |
| 15 | 420640411 | TAPPING SCREW M6 X 35 - Call your local BRP dealership |
| 16 | 420910020 | CYLINDER COWL - Call your local BRP dealership |
| 17 | 420960860 | RUBBER WASHER - Call your local BRP dealership |
| 18 | 420827140 | COWL COVER - Call your local BRP dealership |
| 19 | 420945832 | Washer-Lock Din.128 This part replaces 420945752. |
| 20 | 207181644 | Hex. Screw M8 x 16 |
| 21 | 293800060 | Loctite 243, 10 ml |
