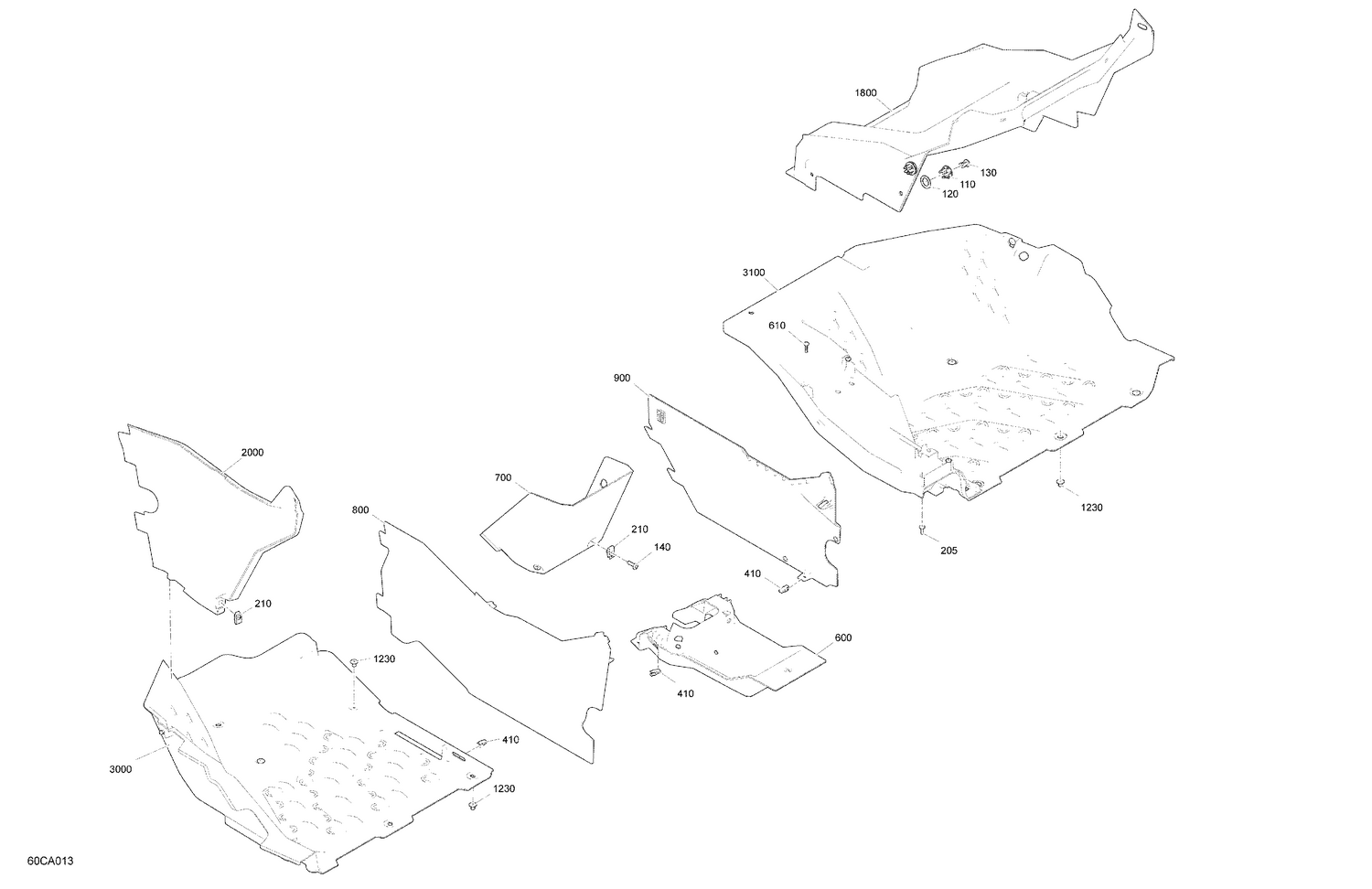

07- Body - Cab Interior - Floor
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 110 | 707900133 | Insert |
| 120 | 503189273 | Washer |
| 130 | 293150230 | Tuflok Plastic Rivet |
| 140 | 250000722 | Torx Screw M6 X 20 |
| 205 | 250000720 | Torx Screw K50 X 16 |
| 210 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 410 | 705010721 | Clip |
| 600 | 707900460 | Front Top Console This part replaces 707900460. |
| 610 | 250000720 | Torx Screw K50 X 16 |
| 700 | 707900473 | Cover Central Console |
| 800 | 707901087 | LH Console Panel This part replaces 707900398. |
| 900 | 707901088 | RH Console Panel This part replaces 707900399. |
| 1230 | 293150104 | Pop Rivet 3/16" |
| 1800 | 707900410 | RH Lower Dash Panel |
| 2000 | 707900477 | Side Panel Cover |
| 3000 | 707900339 | LH Front Floor |
