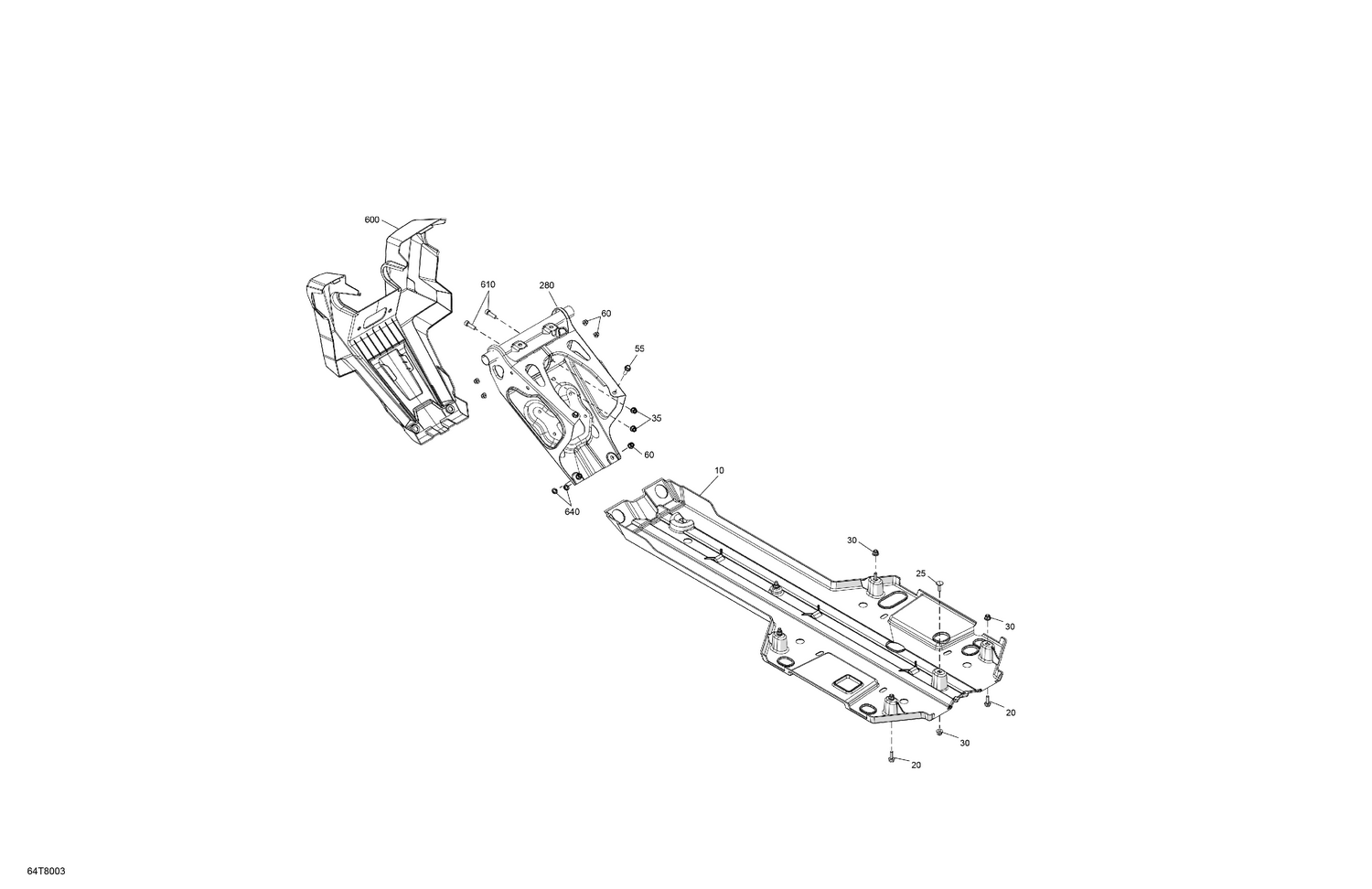

07- Body - Skid Plate and Bumper
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 715002374 | Protective Plate Kit |
| 20 | 207662054 | Hex. Flange Screw M6 X 20 |
| 25 | 207762044 | Carriage Bolt M6 X 20 |
| 30 | 233261434 | Flange Elastic Nut M6 |
| 35 | 233281434 | Hex. Flange Elastic Nut M8 |
| 55 | 207582544 | Hex. Flange Screw M8 X 25, Scotch Grip |
| 60 | 233281434 | Hex. Flange Elastic Nut M8 |
| 280 | 705016893 | Front Bumper Support This part replaces 705009253. |
| 600 | 705006299 | Front Guard Plate |
| 610 | 236282054 | Hex. Screw M8 X 20 |
