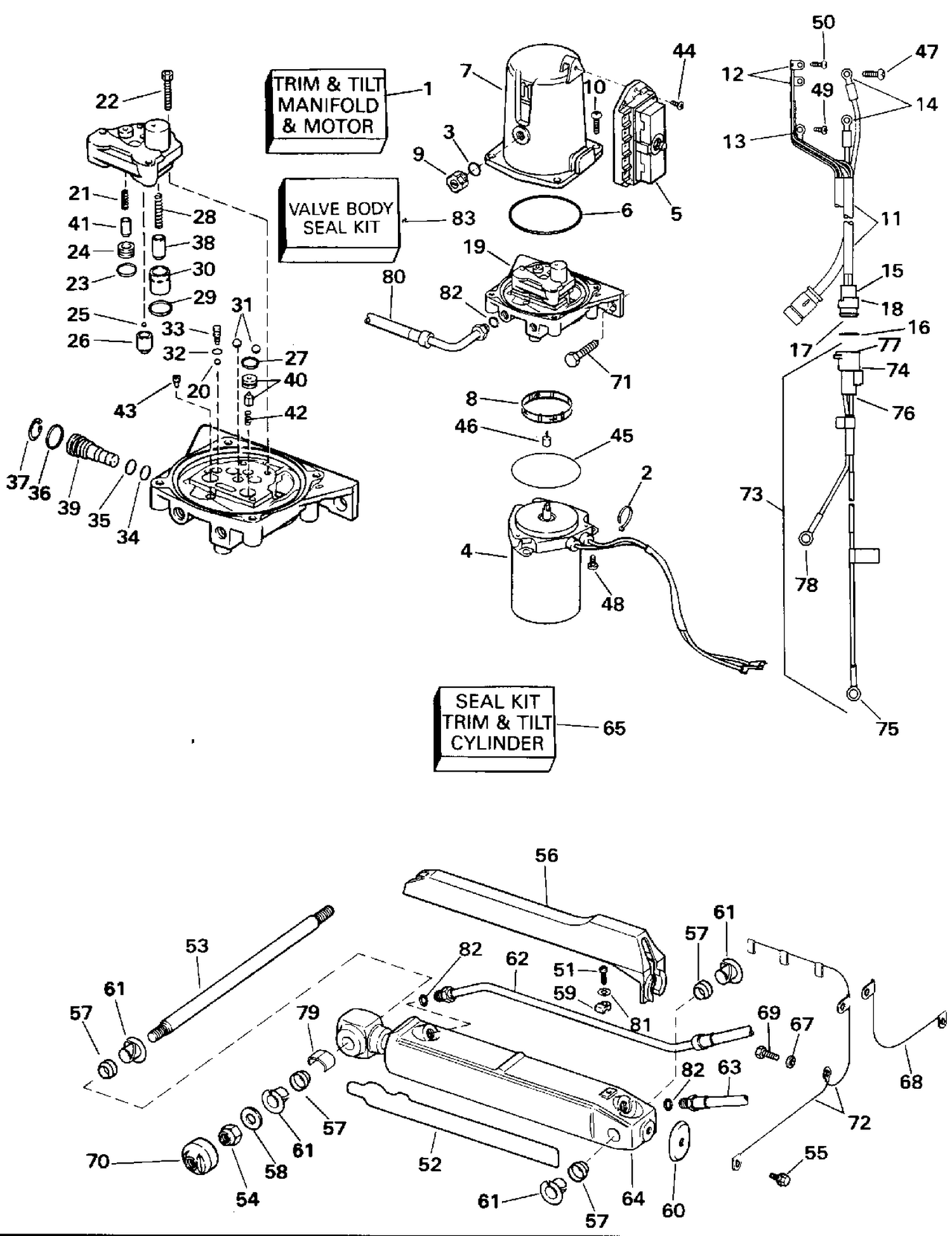

| Ref | Part Number | Description |
|---|
| 1 |
3860879 |
Manifold & Pump Ay This part replaces 3854030. |
| 2 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet This part replaces 3852158. |
| 4 |
0986280 |
MOTOR ASSY This part replaces 3853945. |
| 5 |
0986281 |
RELAY & CIRCUIT BREAKER ASSY This part replaces 3853946. |
| 6 |
3852508 |
O-RING, Reservoir |
| 7 |
0986535 |
RESERVOIR This part replaces 3853989. |
| 8 |
0914045 |
FILTER This part replaces 3852974. |
| 9 |
0914047 |
PLUG, Fill hole This part replaces 3852976. |
| 10 |
0914048 |
SCREW, Reservoir to manifold This part replaces 3852977. |
| 10b |
503192191 |
Slide Shoe |
| 10c |
208562531 |
Phillips Screw M6 X 25 |
| 10d |
232561434 |
Elastic Stop Nut M6 |
| 10f |
503196874 |
Rail Protector This part replaces 503194249. |
| 10g |
250200140 |
Washer |
| 10h |
207652544 |
Hex. Flange Screw M5 X 25 |
| 10j |
233251434 |
Flanged Elastic Nut M5 |
| 10k |
503197292 |
Rail Reinforcement |
| 10m |
503192494 |
Washer |
| 10n |
207183054 |
Hex. Cap Screw M8 X 30 |
| 10p |
233281466 |
Elastic Flang Nut M8 |
| 10q |
503190576 |
Rubber Stopper |
| 10r |
503191273 |
Washer |
| 10s |
293150256 |
Rivet Ornit 4.8 X 27.5 |
| 11 |
3854038 |
CABLE ASSY |
| 12 |
0510827 |
RING TERMINAL This part replaces 3852228. |
| 19 |
3850033 |
Manf This part replaces 3853943. |
| 21 |
0911965 |
SPRING, Pump relief This part replaces 3852578. |
| 22 |
0914054 |
SCREW, Pump to manifold This part replaces 3852983. |
| 23 |
0914055 |
O-RING, Valve seat This part replaces 3852984. |
| 24 |
0914056 |
BALL, Piston, pump control This part replaces 3852985. |
| 25 |
0914057 |
BALL Piston, pump control This part replaces 3852986. |
| 26 |
0914058 |
PISTON pump control This part replaces 3852987. |
| 27 |
0914059 |
O-RING, Piston, pump control This part replaces 3852988. |
| 28 |
0914060 |
SPRING, Valve core, trim up This part replaces 3852989. |
| 29 |
0914061 |
O-RING, Valve seat, trim up This part replaces 3852990. |
| 30 |
0914062 |
SEAT, Valve core, trim up This part replaces 3852991. |
| 32 |
0914064 |
O-RING, Cap manual release This part replaces 3852992. |
| 33 |
0914065 |
CAP, Manual release This part replaces 3852993. |
| 34 |
0914066 |
BACK-UP RING, Manual release This part replaces 3852994. |
| 35 |
0914067 |
O-RING, Manual release This part replaces 3852995. |
| 36 |
0914068 |
O-RING, Manual release This part replaces 3852996. |
| 38 |
0983786 |
VALVE CORE & SEAL This part replaces 3853803. |
| 39 |
0986279 |
VALVE, Manual release This part replaces 3853944. |
| 40 |
0986283 |
CHECK VALVE ASSY This part replaces 3853947. |
| 41 |
0986284 |
VALVE CORE & SEAL ASSY This part replaces 3853948. |
| 42 |
0914046 |
SPRING, Check valve This part replaces 3852975. |
| 43 |
0914712 |
FILTER, Oil This part replaces 3853313. |
| 44 |
0914049 |
SCREW, Motor to manifold This part replaces 3852978. |
| 47 |
0914052 |
SCREW, Terminal This part replaces 3852981. |
| 48 |
0914049 |
SCREW, Motor to manifold This part replaces 3852978. |
| 49 |
0914050 |
SCREW, Terminal This part replaces 3852979. |
| 50 |
0914051 |
SCREW, Terminal This part replaces 3852980. |
| 52 |
3852589 |
APPLIQUE, Tilt cylinder |
| 53 |
3853422 |
PIVOT PIN, Tilt cylinder |
| 54 |
3853329 |
LOCKNUT, Transom plate This part replaces 3852648. |
| 55 |
3852568 |
SCREW, Cover |
| 56 |
3852378 |
COVER, Tilt cylinder This part replaces 3852572. |
| 57 |
3853424 |
GROMMET, Pivot pin |
| 58 |
3852573 |
WASHER, Pivot pin |
| 59 |
3852579 |
RETAINER, Oil line |
| 60 |
3852681 |
RETAINER, Cover |
| 61 |
3853423 |
BUSHING, Pivot pin |
| 62 |
3853854 |
OIL LINE, Starboard, down |
| 62 |
3853856 |
OIL LINE, Port, down |
| 63 |
3853855 |
OIL LINE, Starboard, up |
| 63 |
3853857 |
OIL LINE, Port, up |
| 64 |
3852414 |
CYLINDER ASSY. This part replaces 3852392. |
| 65 |
0985060 |
SEAL KIT This part replaces 3854247. |
| 67 |
0329241 |
RONDELLE This part replaces 3852193. |
| 68 |
0985394 |
GROUND WIRE, 2-loop This part replaces 3853849. |
| 70 |
3852958 |
CAP, Pivot shaft |
| 71 |
3852581 |
LAG SCREW |
| 72 |
3853848 |
GROUND WIRE, 3-loop |
| 73 |
3854031 |
CABLE ASSY., Trim/tilt |
| 75 |
3852527 |
RING TERMINAL |
| 79 |
3853421 |
SPRING, Ground |
| 80 |
3853825 |
OIL LINE ASSY., Pump to manifold |
| 440a |
503190396 |
Ball Bearing |
| 440b |
415129371 |
Retaining Ring |
| 441 |
503193894 |
Casted Support |
| 443 |
503191820 |
Wheel Cup M6 |
| 444 |
250000944 |
Hex. Flange Screw M6 X 70 |
| 445 |
233261466 |
Hex. Flanged Elastic Nut M6 |
| 446 |
250000945 |
Hex. Flange Screw M6 X 25 |
| 447 |
233261466 |
Hex. Flanged Elastic Nut M6 |
| 448 |
503195345 |
Black, Wheel Cap |
| 450a |
503190396 |
Ball Bearing |
| 450b |
415129371 |
Retaining Ring |
| 451 |
503193894 |
Casted Support |
| 453 |
503191820 |
Wheel Cup M6 |
| 454 |
250000944 |
Hex. Flange Screw M6 X 70 |
| 455 |
233261466 |
Hex. Flanged Elastic Nut M6 |
| 456 |
250000945 |
Hex. Flange Screw M6 X 25 |
| 457 |
233261466 |
Hex. Flanged Elastic Nut M6 |
| 458 |
503192771 |
Black, Wheel Cap |
| 610 |
503196252 |
Rear Axle |
| 630 |
503196947 |
Socket |
| 660 |
503196246 |
Rear Wheel Support |
| 670a |
503190396 |
Ball Bearing |
| 670b |
415129371 |
Retaining Ring |
| 710 |
503196357 |
Washer |
| 730 |
503195748 |
Bolt M10 |
| 735 |
233201466 |
Flanged Elastic Nut M10 |
| 900 |
503194266 |
Tensioner |
| 920 |
503194267 |
Hex. Cap Screw M8 X 95 |
| 930 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 1000 |
503192842 |
Front Wheel Shaft |
| 1001a |
503190396 |
Ball Bearing |
| 1001b |
415129371 |
Retaining Ring |
| 1020 |
503192496 |
Washer |
| 1030 |
205505054 |
Socket Screw |
| 1090 |
503195775 |
Shock Lower Shaft |
| 1110 |
503192491 |
Washer |
| 1112 |
605449294 |
Support Plate |
| 1113 |
31013 |
Shim Ring |
| 1115 |
503197324 |
Sleeve |
| 1120 |
205525554 |
Socket Screw |
| 1140 |
503191260 |
Axle Strap |
| 1150 |
503192496 |
Washer |
| 1155 |
503195837 |
Limiter Bussing |
| 1160 |
205503554 |
Socket Head Screw M10 X 35 |
| 1165 |
205506044 |
Screw Socket S,Grip M10 X 60 |
| 1400 |
503194900 |
LH Spring |
| 1410 |
503194901 |
RH Spring |
| 1420 |
503194294 |
LH Support |
| 1430 |
503194295 |
RH Support |
| 1440 |
207683054 |
Hex. Flange Screw M8 X 30 |
| 1445 |
503192494 |
Washer |
| 1450 |
233281466 |
Elastic Flang Nut M8 |
| 1470 |
503196336 |
Hook Ass'y |
| 1480 |
207167054 |
Hex. Cap Screw M6 X 70 |
| 1485 |
250200039 |
Flat Washer |
| 3854248 |
3854248 |
SPACER, Tilt limit |
