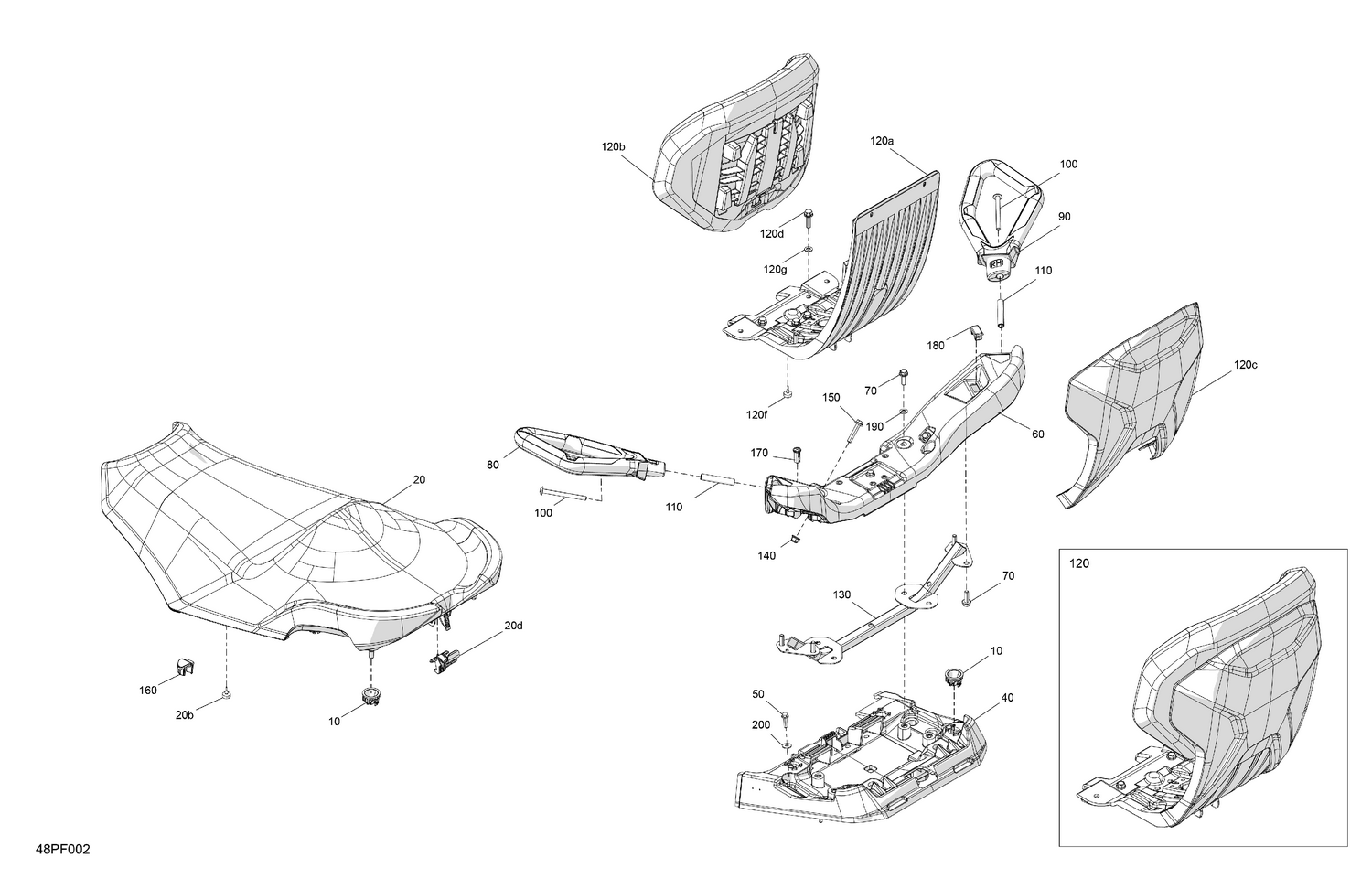

07- Body - Seat
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 708003609 | Seat Stopper |
| 20b | 708003866 | Seat Stopper |
| 20d | 708003926 | Seat Latch |
| 40 | 708003811 | Seat Anchorage |
| 50 | 207662544 | Hex. Flange Screw M6 X 25 |
| 60 | 708004132 | Handle Support This part replaces 708004132. |
| 70 | 207682544 | Hex. Flange Screw M8 X 25 |
| 80 | 703500806 | LH Passenger Seat Handle Kit |
| 90 | 703500807 | RH Passenger Seat Handle Kit |
| 100 | 250000806 | Torx Truss M8 X 90 |
| 110 | 705009248 | Sleeve |
| 120a | 708003937 | Backrest Support |
| 120b | 708003112 | Passenger Backrest |
| 120c | 708003191 | Backrest Trim |
| 120d | 207682544 | Hex. Flange Screw M8 X 25 |
| 120f | 708003866 | Seat Stopper |
| 120g | 234081410 | Flat Washer 8 mm |
| 130 | 708003529 | Handle Support Reinforcement Ass'y |
| 140 | 233281414 | Hex. Flange Elastic Nut M8 |
| 150 | 207684054 | Hex. Flange Screw M8 X 40 |
| 160 | 708004198 | Cap |
| 170 | 710003910 | Pilot Lamp Cap |
| 180 | 708001511 | Insert |
| 190 | 234081410 | Flat Washer 8 mm |
