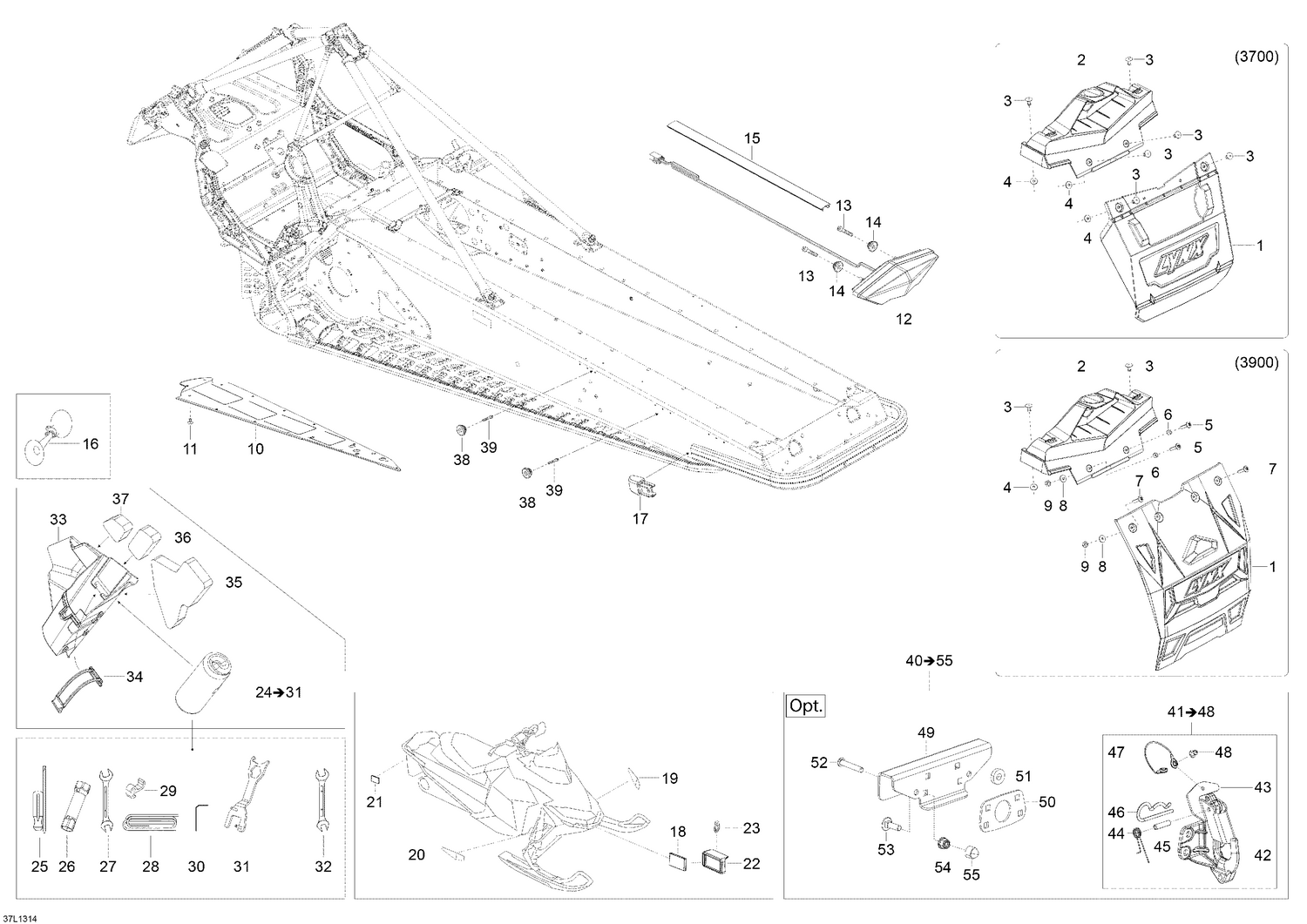

09- Utilities — Parts Catalog

Ref	Part Number	Description
2	511000583	Light Cover
12	520000955	REAR LIGHT - Call your local BRP dealership
13	250000451	Torx Screw K40 x 20
14	705014429	Stopper_Rubber This part replaces 705003666.
15	520000829	Trim
16	549011291	Horn
18	21118	Reflector, Bright
19	520000719	Reflector Front LH
20	520000718	Reflector Front RH
21	21121	REFLECTOR (YELLOW) - Call your local BRP dealership
22	520000871	Reflector Support
23	27120	TIE RAP - Call your local BRP dealership
25	529000004	SCREWDRIVER - Call your local BRP dealership
26	529000046	Socket Wrench
27	529000002	FORK WRENCH, 10/13 MM - Call your local BRP dealership
28	412500200	Starter Rope
29	529000060	Starter Grip
30	520001142	Key
31	520000988	WRENCH SUSPENSION - Call your local BRP dealership
32	34017	Wrench 17/19
33	520000842	Tool Kit Rack
34	520000528	Latch
35	520001059	Foam
36	520001061	Foam
37	520001062	Foam
38	520000889	Anchor Link
39	250000767	Torx Truss Screw M6 X 12 This part replaces 250000325.
42	520001040	Hook
43	520001041	LOCKING PLATE - Call your local BRP dealership
44	545693	SPRING - Call your local BRP dealership
45	41012	Spring Pin
46	41029	Cotter Pin
47	293750069	Retainer Cable This part replaces 5446839.
48	390909100	Avex Rivet
49	520001242	Hitch Support
50	520001243	Hitch Fastening Plate
51	520001288	Sleeve
52	205484546	Socket Screw M8 x 45
53	207782544	Carriage Bolt M8 x 25
54	233281414	Hex. Flange Elastic Nut M8
