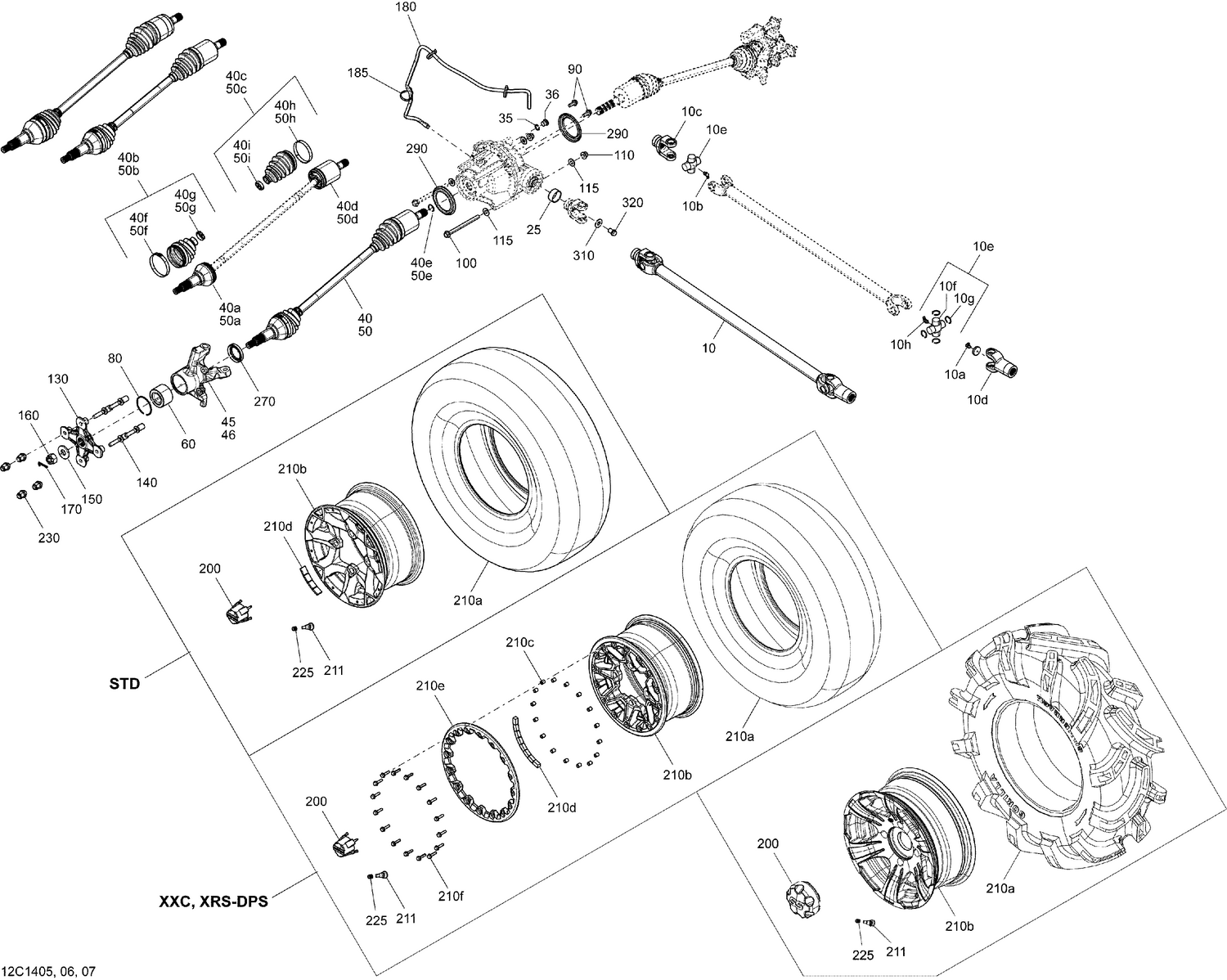

07- Drive System, Front
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 705402068 | Drive Shaft Assembly This part replaces 705401196. |
| 10a | 703500815 | Grease Fitting |
| 10b | 703500813 | GREASE FITTING - Call your local BRP dealership |
| 10c | 715900116 | Fixed Yoke Joint This part replaces 715900232. |
| 10e | 715900325 | Ens. Croix*U-Joint Cross Kit This part replaces 703500814. |
| 10f | 715900183 | U-Joint |
| 10g | 715900117 | SNAP RING - Call your local BRP dealership |
| 10h | 703500813 | GREASE FITTING - Call your local BRP dealership |
| 25 | 705400036 | Wear Ring |
| 35 | 705500504 | Fill Level Plug |
| 36 | 705500506 | Copper Washer |
| 45 | 705401548 | LH Front Knuckle |
| 46 | 705401549 | RH Front Knuckle |
| 60 | 293350150 | Ball Bearing This part replaces 293350040. |
| 80 | 293370019 | Circlip |
| 90 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 100 | 230603046 | Hex. Flange Screw, M10 X 130 |
| 110 | 233201436 | Hex. Flange Elastic Nut M10 |
| 115 | 234201474 | Conical Spring Washer 10 mm |
| 130 | 705501900 | Wheel Hub |
| 140 | 250300060 | Wheel Stud This part replaces 250300051. |
| 150 | 250200171 | Conical Spring Washer M18 This part replaces 250200049. |
| 160 | 232291413 | Hex. Flange Castellated Nut M18 This part replaces 250100047. |
| 170 | 250400036 | Cotter Pin |
| 180 | 219704410 | Polyurethane Hose 10000Mm Long |
| 185 | 414115200 | Tie-Rap 180 mm |
| 200 | 705400928 | Wheel Cap |
| 211 | 705400193 | Rim Valve With Cap |
| 225 | 293000110 | Valve Cap |
| 230 | 250100184 | Black, Wheel Nut M10 X 1.25 This part replaces 250100100. |
| 270 | 293250246 | O-Ring |
| 290 | 705400780 | Wear Sleeve |
| 310 | 250200102 | Flat Washer M12 |
