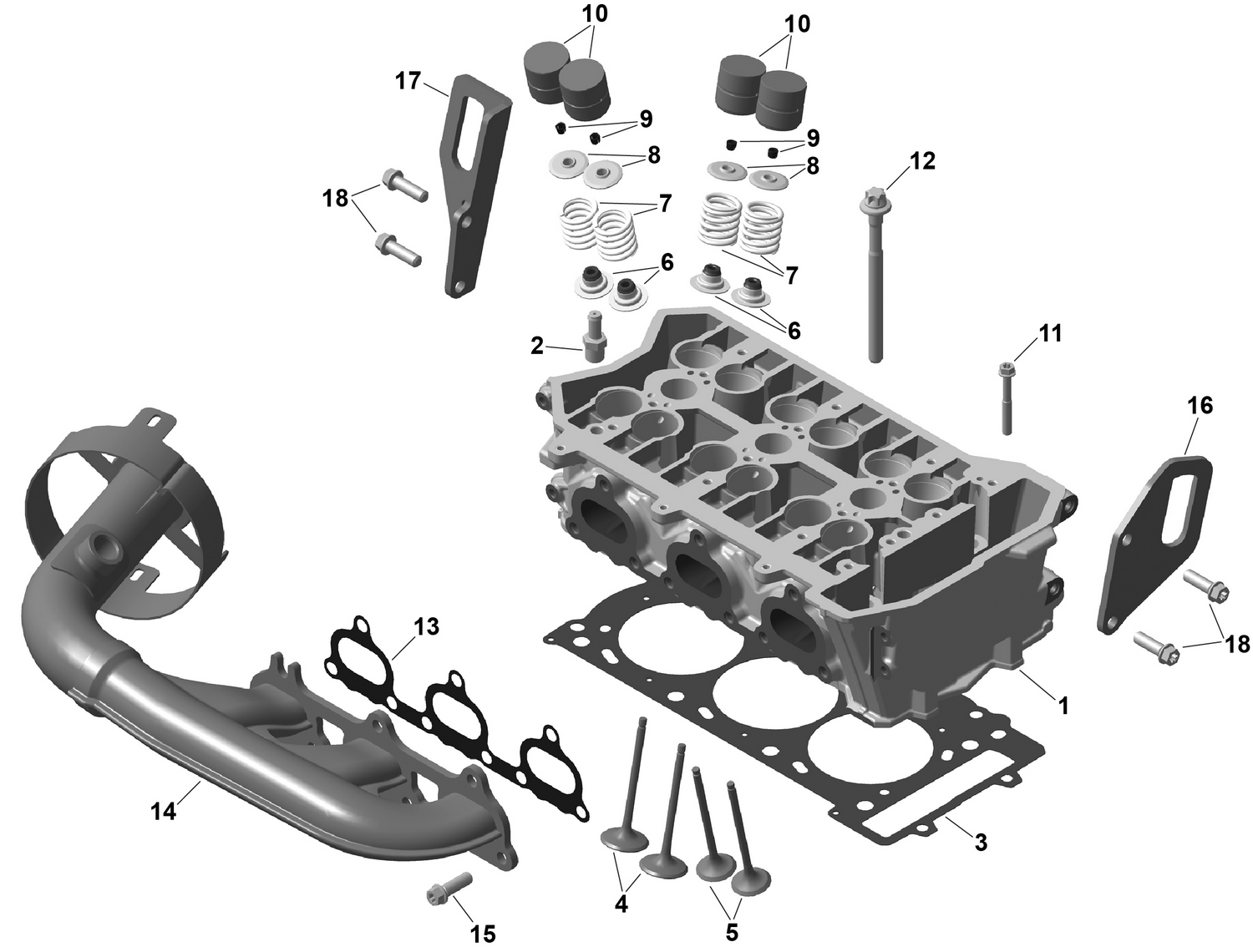

01- ROTAX - Cylinder Head
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420623882 | Cylinder Head Ass'y |
| 2 | 420441420 | Hose Nipple |
| 3 | 420431819 | Cylinder Head Gasket |
| 4 | 420855155 | Exhaust Valve, 25 Mm |
| 5 | 420855138 | Intake Valve, 30 Mm |
| 6 | 420431671 | Valve Stem Seal |
| 7 | 420939540 | Valve Spring |
| 8 | 420855150 | Valve Spring Retainer |
| 9 | 420254630 | Cotter Valve |
| 10 | 420855165 | Valve Lifter Bucket |
| 11 | 420440324 | Torx Flange Screw M6 X 45 |
| 12 | 420940945 | Torx Flange Screw M9 X 113 |
| 14 | 420673499 | Exhaust Manifold Ass'y |
| 15 | 420440372 | Torx Flange Screw M8 X 25 |
| 16 | 420227124 | PTO Retaining Plate |
| 17 | 420227122 | MAG Retaining Plate |
