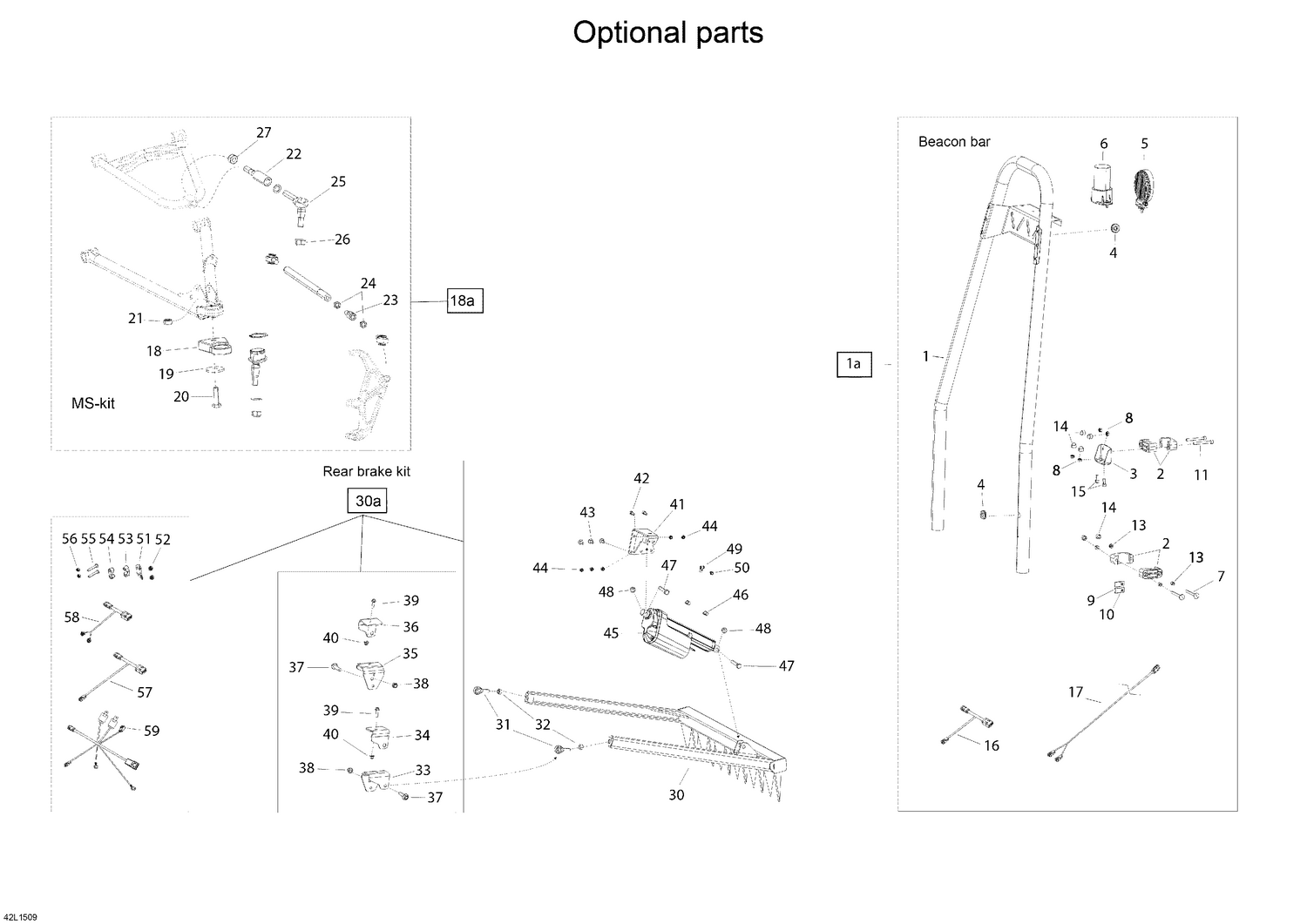

11- Optional
Parts (58)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 520001337 | BEACON BAR PREASSEMBLY |
| 2 | 520001141 | BEACON BAR HALF FASTENER |
| 3 | 520001202 | BEACON BAR FASTENING PLATE |
| 4 | 517303756 | Grommet |
| 5 | 520001293 | WORKING LIGHT LED |
| 6 | 520001294 | BEACON LIGHT ORANGE LED |
| 7 | 207652044 | Hex. Flange Screw M5 X 20 |
| 8 | 233251434 | Flanged Elastic Nut M5 |
| 9 | 270000141 | Clip |
| 10 | 293150144 | RIVET STAVEX *STAVEX RIVET |
| 11 | 207788044 | M8 X 80 CARRIAGE BOLT - Call your local BRP dealership |
| 12 | 510005735 | SLEEVE 8,6 MM |
| 13 | 232581434 | NUT-STOP ELASTIC DIN.985 |
| 14 | 28056 | Cover |
| 15 | 205082044 | SCREW-SOCKET HD.DIN.912 |
| 16 | 515177364 | ACCESSORY HARNESS |
| 17 | 515177455 | LIGHT / BEACON HARNESS |
| 18 | 505073304 | LOWER ARM EXTENSION |
| 19 | 505073305 | WASHER |
| 20 | 207004044 | SCREW-HEX.CAP DIN.931 |
| 21 | 232500416 | Elastic Stop Nut M10 |
| 22 | 505073306 | UPPER ARM EXTENSION |
| 23 | 506152609 | TIEROD EXTENSION |
| 24 | 732610010 | RH Threaded Hex. Jam Nut M10 |
| 25 | 505073308 | BALL JOINT |
| 26 | 250100089 | NUT M12 |
| 27 | 250100165 | Hex. Flanged Elastic Nut M10 This part replaces 250100088. |
| 28 | 232500416 | Elastic Stop Nut M10 |
| 29 | 233201414 | Hex. Flanged Elastic Nut M10 |
| 30 | 520001166 | REAR BRAKE ASSEMBLY |
| 31 | 520001200 | Rod end |
| 32 | 250100045 | Nut |
| 33 | 520001198 | BRAKE FASTENING BRACKET LH |
| 34 | 520001320 | BRAKE FASTENING BRACKET SUPPORT LH |
| 35 | 520001199 | BRAKE FASTENING BRACKET RH |
| 36 | 520001321 | BRAKE FASTENING BRACKET SUPPORT RH |
| 37 | 207624544 | SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership |
| 38 | 232521414 | NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership |
| 39 | 207683034 | SCREW-HEX.FLANGE DIN.6921 |
| 40 | 233281434 | NUT-FLANGE ELASTIC DIN.6926 |
| 41 | 520001177 | ENGINE UPPER BRACKET PAINTED |
| 42 | 207182034 | HEX. CAP SCREW M8 X 20 - Call your local BRP dealership |
| 43 | 207782044 | BOLT-CARRIAGE DIN.603 |
| 44 | 232581434 | NUT-STOP ELASTIC DIN.985 |
| 45 | 520001201 | LINEAR ACTUATOR |
| 46 | 520001235 | CABLE HOLDER |
| 47 | 207125534 | SCREW-HEX.CAP DIN.933 |
| 48 | 232521414 | NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership |
| 49 | 293650256 | Clamp This part replaces 705600459. |
| 50 | 210261040 | SCREW-FORMING HEX.HD.FL.DIN.7500D |
| 51 | 520001197 | SWITCH BRACKET |
| 52 | 515177436 | RUBBER COVER FOR PUSH BUTTON |
| 53 | 506152751 | Steering Support This part replaces 506152395. |
| 54 | 506152610 | STEERING BAR SUPPORT MACHINED |
| 55 | 250000761 | Torx Truss Screw M8 X 50 This part replaces 250000298. |
| 56 | 232581434 | NUT-STOP ELASTIC DIN.985 |
| 57 | 520001291 | CABLE FOR LINEAR ACTUATOR |
| 58 | 515177489 | ACCESSORY HARNESS SLOPE CONTROL |
