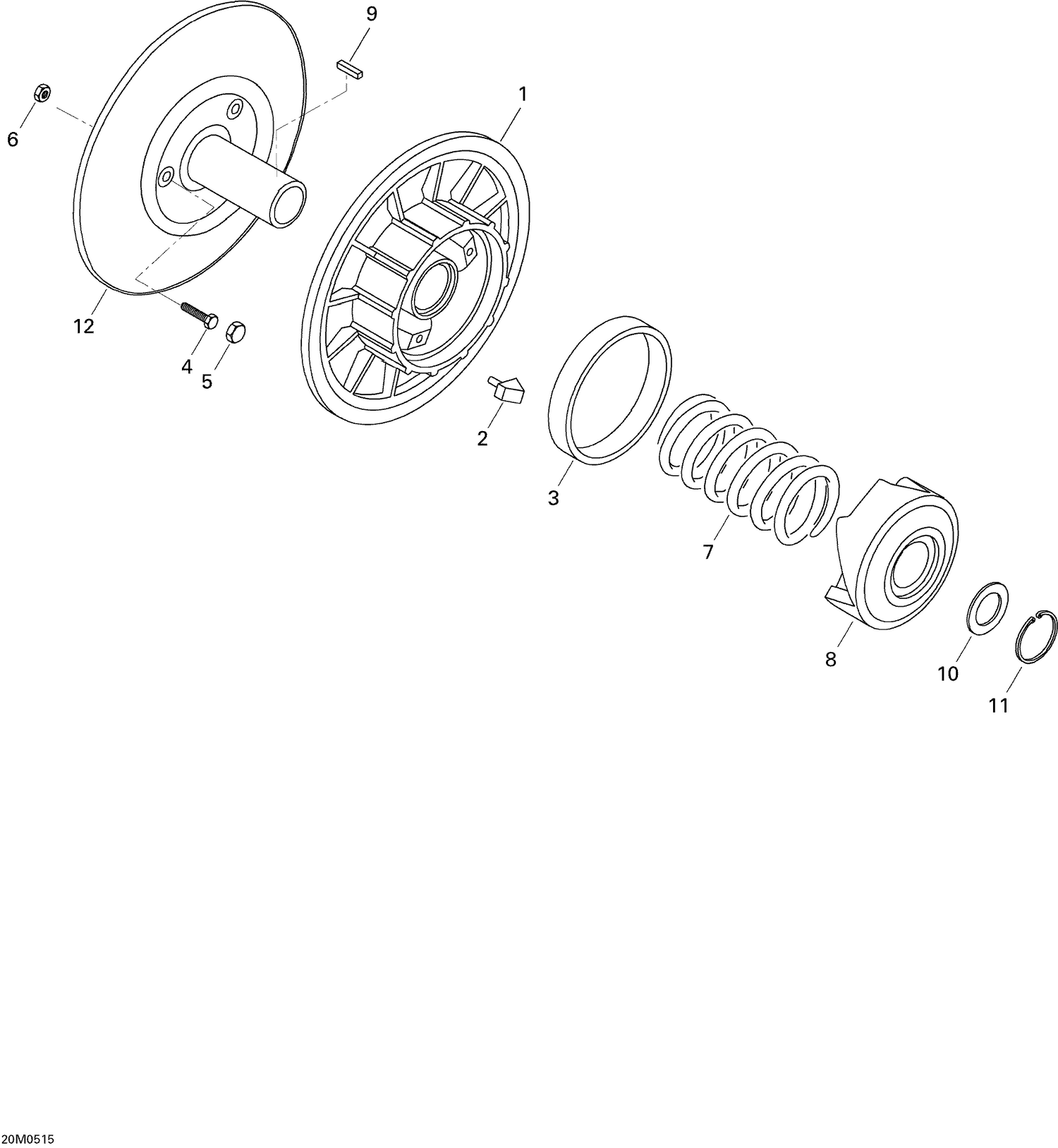

05- Driven Pulley 550F SUV
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 417212500 | SHOE CAM SLIDER - Call your local BRP dealership |
| 4 | 417118900 | HEX. SCREW - Call your local BRP dealership |
| 5 | 417119600 | PLASTIC CAP - Call your local BRP dealership |
| 6 | 417119000 | NUT - Call your local BRP dealership |
| 7 | 417119100 | RELEASE SPRING - Call your local BRP dealership |
| 9 | 417119400 | KEY - Call your local BRP dealership |
| 10 | 417114900 | Shim |
| 10 | 417117000 | SHIM - Call your local BRP dealership |
| 11 | 371903100 | CIRCLIP - Call your local BRP dealership |
