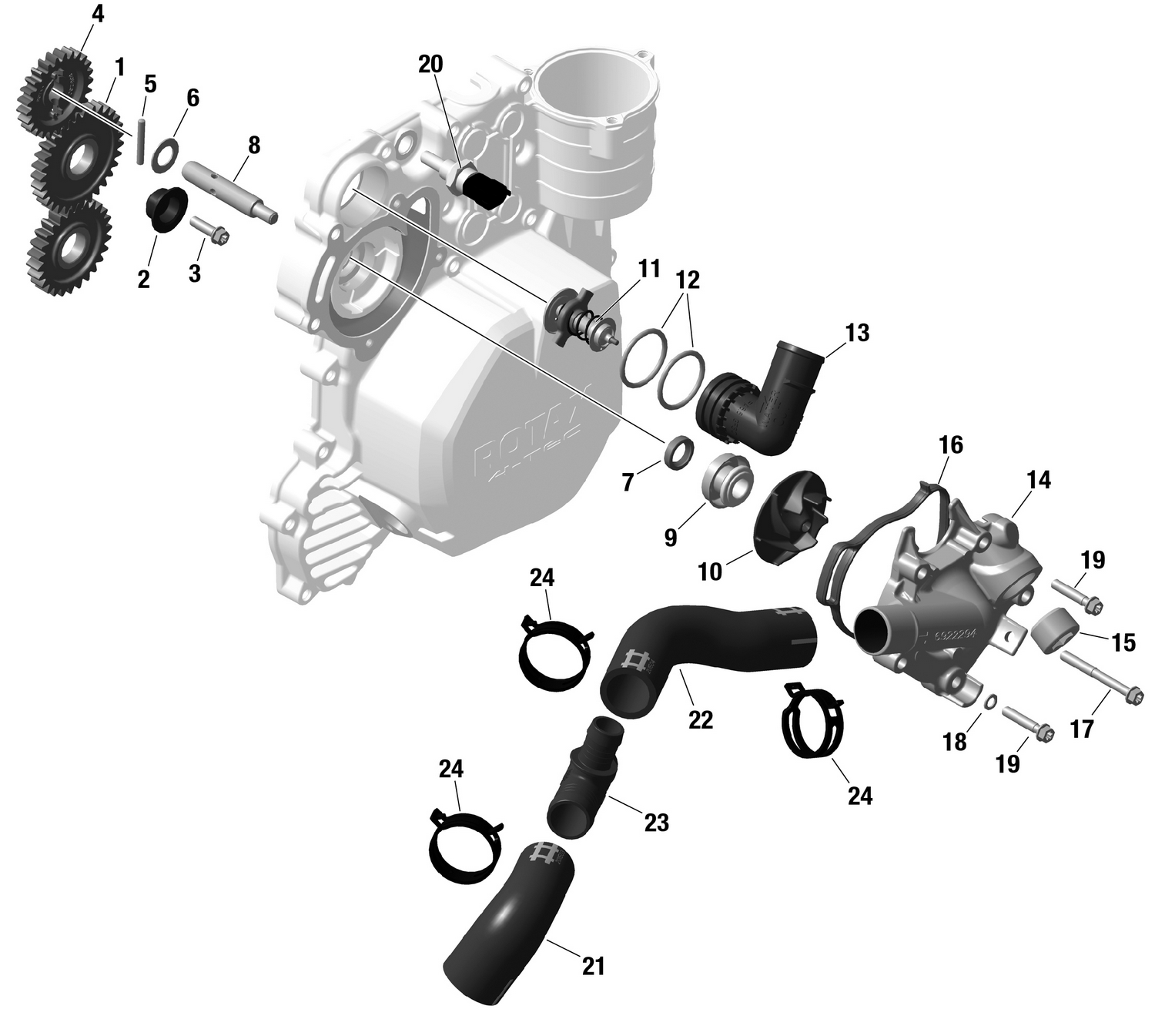

01- ROTAX - Engine Cooling
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420835067 | Idle Gear, 31 Teeth This part replaces 420835059. |
| 2 | 420947394 | Graduated Spacer |
| 3 | 420440207 | Flanged Torx Screw M6X20-SW8/T30 |
| 4 | 420835230 | Waterpump Gear (25 T) |
| 5 | 420232431 | Needle Pin B 4 x 29,8 |
| 6 | 420827261 | Thrust Washer 12,5/21,5/1 |
| 8 | 420820150 | Waterpump Shaft |
| 9 | 420850946 | Rotary Seal |
| 10 | 420822750 | Water Impeller |
| 11 | 420822655 | Thermostat |
| 13 | 420922158 | Thermostat cover |
| 16 | 420431682 | Gasket |
| 18 | 404146600 | Sealing Washer |
| 20 | 278002895 | Temperature Sensor |
| 21 | 420201507 | Molded Hose |
| 22 | 420201504 | Molded Hose |
| 23 | 420660551 | T Fitting |
