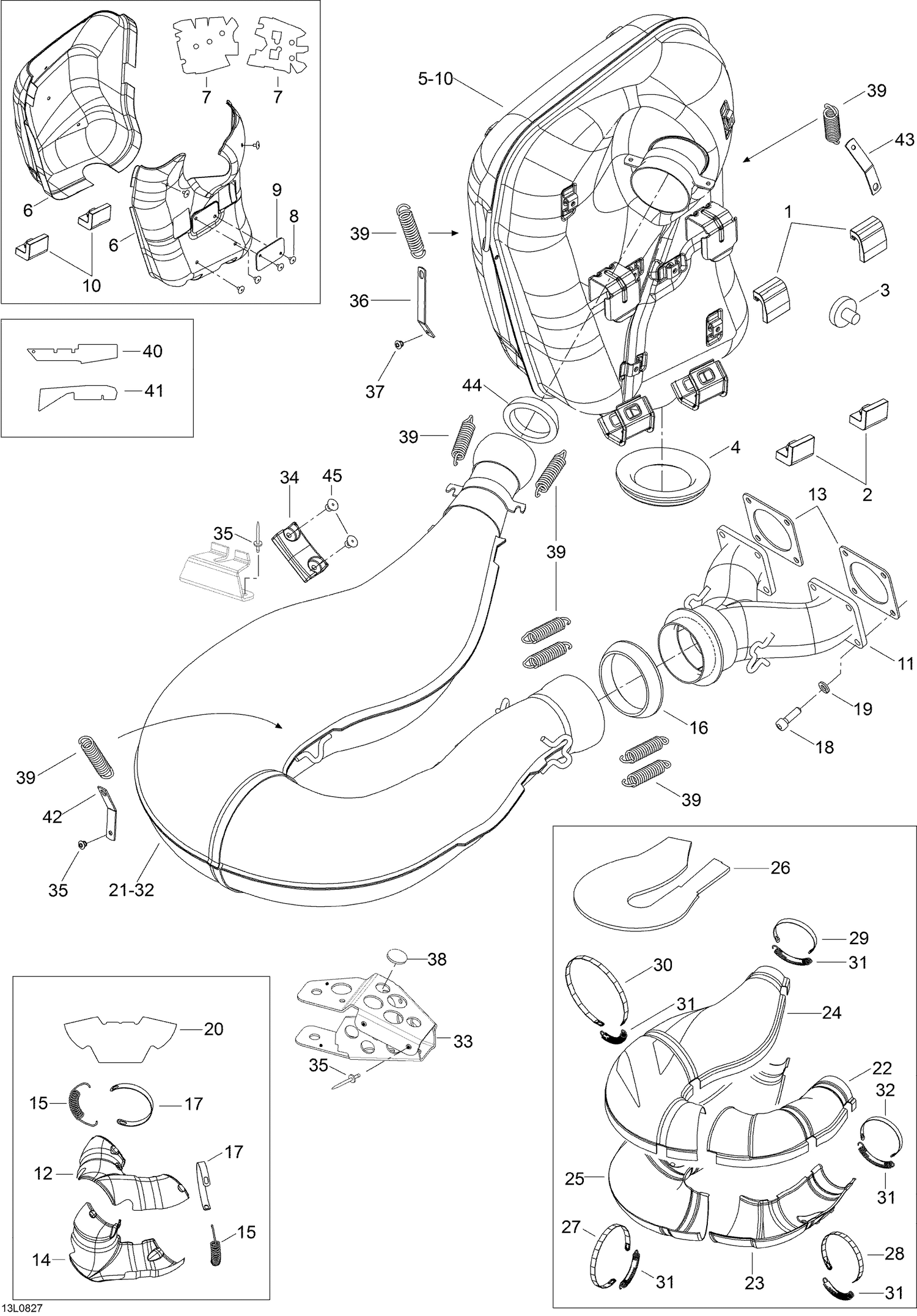

| Ref | Part Number | Description |
|---|
| 1 |
514053372 |
UPPER STOPPER - Call your local BRP dealership |
| 2 |
514054223 |
LOWER STOPPER - Call your local BRP dealership |
| 3 |
514053654 |
Rubber Bumper |
| 4 |
514054240 |
EXHAUST GROMMET - Call your local BRP dealership |
| 6 |
514053585 |
Värme skydd, vänster |
| 6 |
514054122 |
RH HEAT SHIELD - Call your local BRP dealership |
| 7 |
514053589 |
RH INSULATING WOOL - Call your local BRP dealership |
| 7 |
514053590 |
LH INSULATING WOOL - Call your local BRP dealership |
| 8 |
390910000 |
Pop Rivet 3/16” |
| 9 |
514053429 |
Reinforcement |
| 10 |
514054223 |
LOWER STOPPER - Call your local BRP dealership |
| 11 |
420673370 |
Exhaust manifold assy |
| 12 |
514053831 |
UPPER ENVELOPPE, EXHAUST MANIFOLD - Call your local BRP dealership |
| 13 |
420430480 |
Tiiviste |
| 14 |
514053830 |
LOWER ENVELOPPE, EXHAUST MANIFOLD - Call your local BRP dealership |
| 15 |
514053643 |
Spring |
| 16 |
514053487 |
Exhaust Gasket |
| 17 |
514053603 |
RETAINING STRAP - Call your local BRP dealership |
| 18 |
40052 |
Allen sc. M6 x 20 DIN912m8.8Zne(1=10pcs) - Call your local BRP dealership |
| 19 |
605620001 |
Lukitusaluslevy Nord-lock M6 |
| 20 |
514053284 |
Värmeisolering, Y-rör |
| 22 |
514053609 |
Suojakuori, pakoputken yläosa |
| 23 |
514053610 |
Suojakuori, pakoputken alaosa |
| 24 |
514053951 |
Suojakuori, pakoputken yläosa |
| 25 |
514053996 |
Suojakuori, pakoputken alaosa |
| 26 |
514053584 |
INSULATING WOOL - Call your local BRP dealership |
| 27 |
514053437 |
RETAINING STRAP - Call your local BRP dealership |
| 28 |
514053500 |
RETAINING STRAP - Call your local BRP dealership |
| 29 |
514053534 |
RETAINING STRAP - Call your local BRP dealership |
| 30 |
514053535 |
RETAINING STRAP - Call your local BRP dealership |
| 31 |
514053643 |
Spring |
| 32 |
514053536 |
Retaining strap |
| 33 |
605355517 |
Pakoputken alatuki kok |
| 34 |
514053352 |
BUMPER - Call your local BRP dealership |
| 35 |
36108 |
Rivet steel 4.8x8 ZN bright |
| 36 |
605451629 |
Pakoputken kiinnike |
| 37 |
36489 |
Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 38 |
514053654 |
Rubber Bumper |
| 39 |
415107100 |
Jousi äänenv.kiinnit. |
| 40 |
514053560 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 41 |
514053622 |
Reflection sheet |
| 42 |
514053725 |
SPRING BRACKET - Call your local BRP dealership |
| 43 |
514053393 |
Jousen kiinnike |
| 44 |
514054174 |
Exhaust Gasket |
