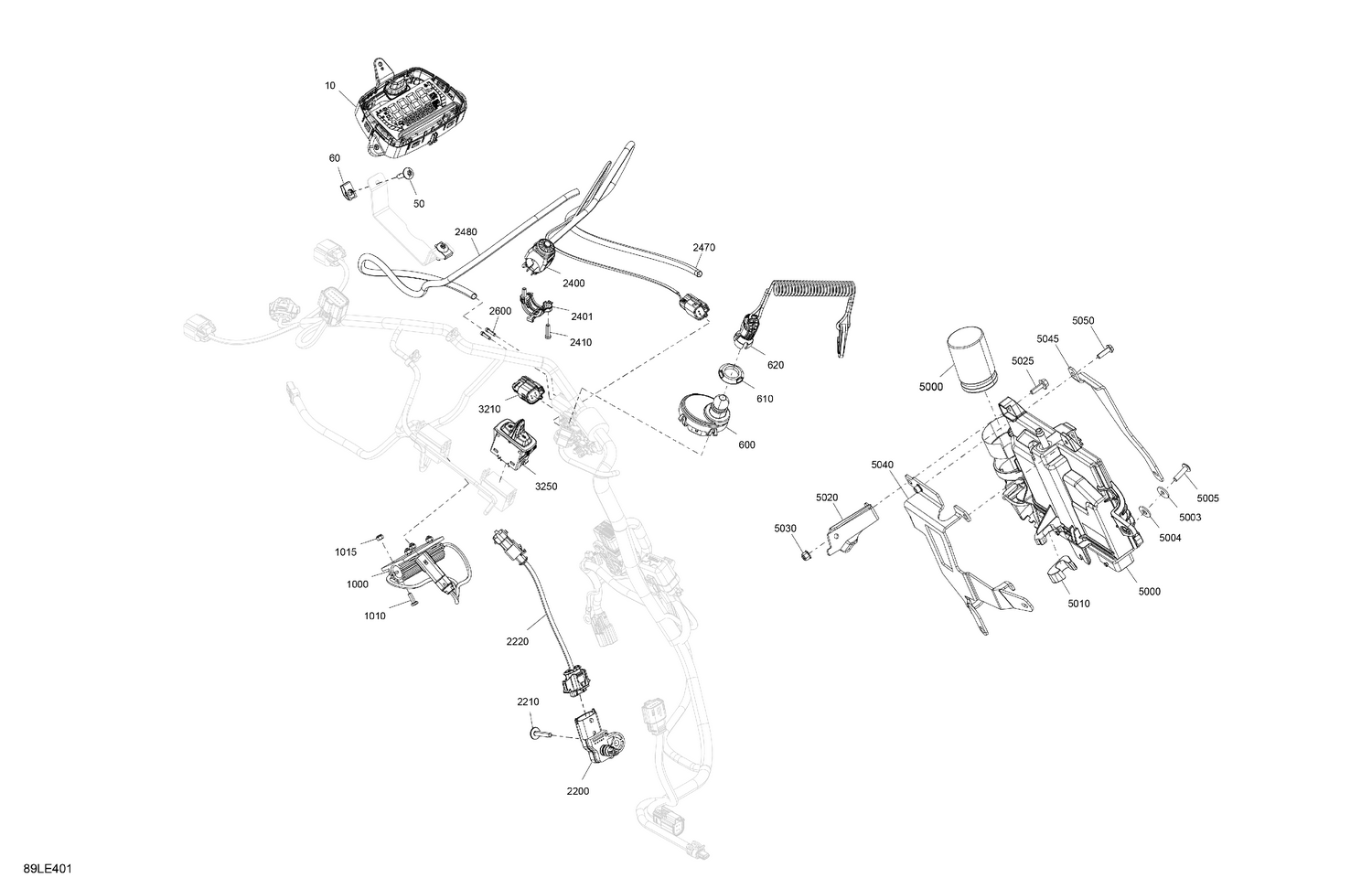

08- Electric - Upper Section
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 515179303 | Multifunction Gauge Compact Mono |
| 50 | 250000586 | Torx Truss M5 X 20 |
| 60 | 250000958 | Panel Nut M5 X 0.8 |
| 600 | 515179240 | Terminal Dess One Wire |
| 610 | 278004274 | Specialized Nut |
| 620 | 515178288 | Key |
| 1000 | 515179517 | Resistor Harness |
| 1010 | 207141260 | Screw Hex. M4 X 12 |
| 1015 | 232541484 | Elastic Stop Nut M4 |
| 2200 | 707000995 | Pressure And Temperature Sensor |
| 2210 | 250000725 | Screw M4 X 16 |
| 2220 | 515179866 | Sensor Wiring Harness |
| 2400 | 515178857 | Ignition Switch |
| 2401 | 515177952 | Clamp |
| 2410 | 250000671 | Torx Screw |
| 2470 | 415130141 | Sleeve |
| 2480 | 415130141 | Sleeve |
| 2600 | 293000052 | Sealing Cap |
| 3250 | 515178462 | Switch Rocker Hand Warmer |
| 5000 | 515179352 | ECM Module |
| 5003 | 250200140 | Washer |
| 5004 | 250200024 | Rubber Washer 5 mm |
| 5005 | 250000724 | Torx Screw M5 X 20 |
| 5010 | 515178430 | Rubber Stopper |
| 5020 | 515178801 | Module Support |
| 5025 | 207551634 | Hex. Flange Screw, Scotch Grip |
| 5030 | 233251434 | Flanged Elastic Nut M5 This part replaces 233251414. |
| 5040 | 515178951 | Module Support |
| 5045 | 515179351 | Module Support |
