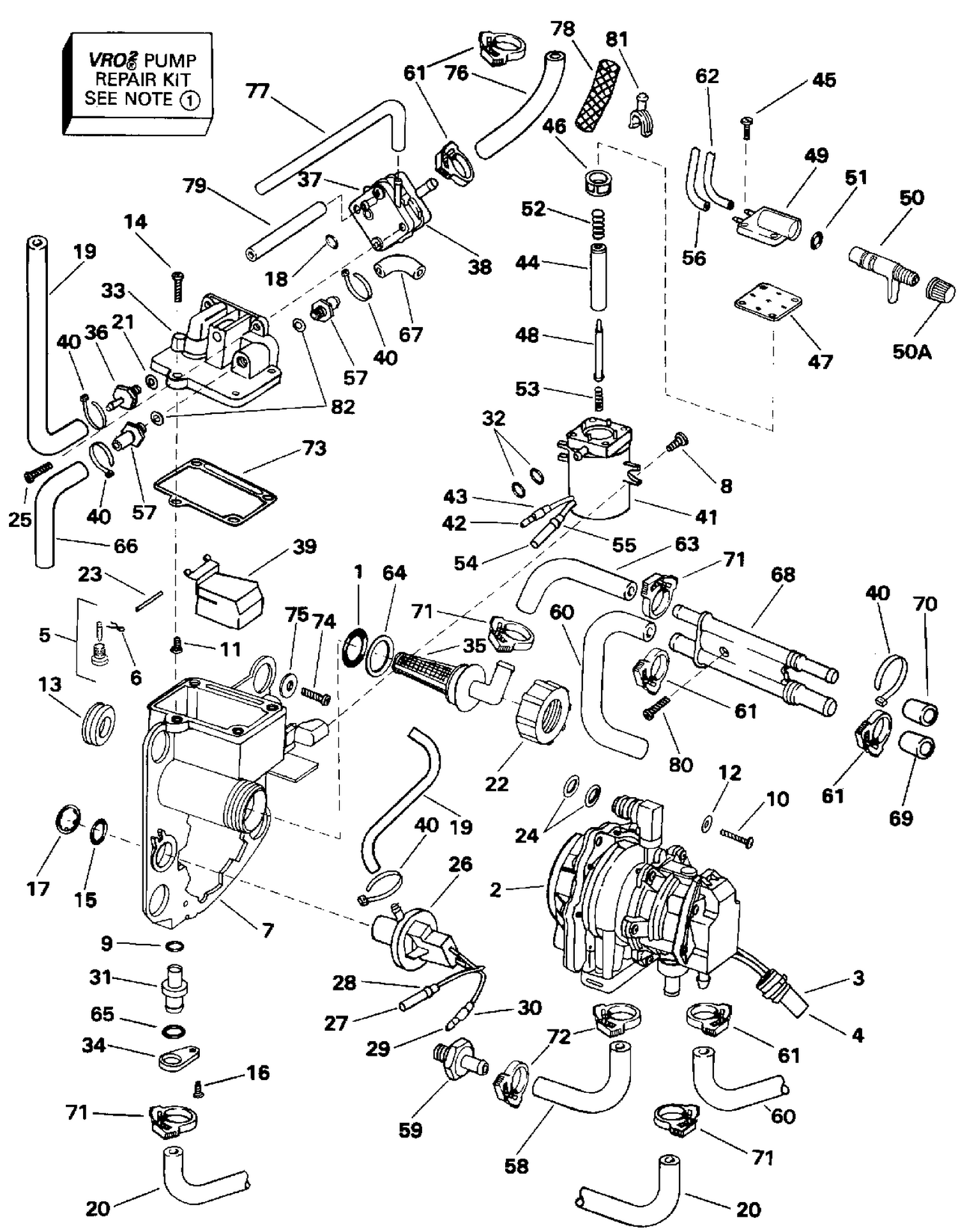

| Ref | Part Number | Description |
|---|
| 2 |
5007420 |
Kit Ay This part replaces 0174955. |
| 6 |
0336842 |
CLIP, SPRING |
| 15 |
0909678 |
JOINT TORIQUE, interrupteur d'aspiration vers support |
| 19 |
HOSE, |
Vapor sep, to vacuum switch, 5 1/2" |
| 24 |
0335230 |
O-RING |
| 25 |
0335229 |
SCREW, Bracket to crkc. cover |
| 26 |
0586544 |
VACUUM SWITCH This part replaces 0433409. |
| 30 |
0125294 |
SLEEVE |
| 32 |
0335231 |
O-RING, primer solenoid to bracket |
| 37 |
0433352 |
PUMP AY, VAPOR |
| 40 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 41 |
0437232 |
SOLENOID ASSEMBLY, priming This part replaces 0433374. |
| 47 |
0333448 |
GASKET |
| 49 |
0511807 |
COVER&GASKET AY |
| 56 |
HOSE, |
Primer solenoid to stbd. primer nipple 14" |
| 58 |
0333407 |
FLEXIBLE, filtre à carburant vers pompe à carburant |
| 60 |
0336128 |
HOSE, Connector to pump, oil |
| 61 |
0322654 |
PINCE RAPIDE, flexible d'huile |
| 62 |
HOSE, |
Primer solenoid to port primer nipples, 10 1/2" |
| 63 |
0336129 |
HOSE, Fuel conn. to filter |
| 66 |
0336131 |
HOSE, Bracket to manifold - Stbd |
| 67 |
0336132 |
HOSE, Bracket to port manifold |
| 68 |
0335626 |
NIPPLE, Fuel & oil |
| 70 |
0331649 |
CAP, Connector - fuel |
| 75 |
0336316 |
WASHER, screw, bracket to hood |
| 76 |
0336318 |
HOSE, pulses, steam pump to crankcase cover |
| 77 |
HOSE, |
Vapor pump to air silencer, 7in. (178m) |
| 79 |
HOSE, |
Vapor pump to brg. vent nipple |
| 81 |
0329661 |
SUPPORT/BOUCHON |
