Home / BRP / STERN DRIVE / 1991 / 7.40 / 744APERGD 1991 / ALTERNATOR

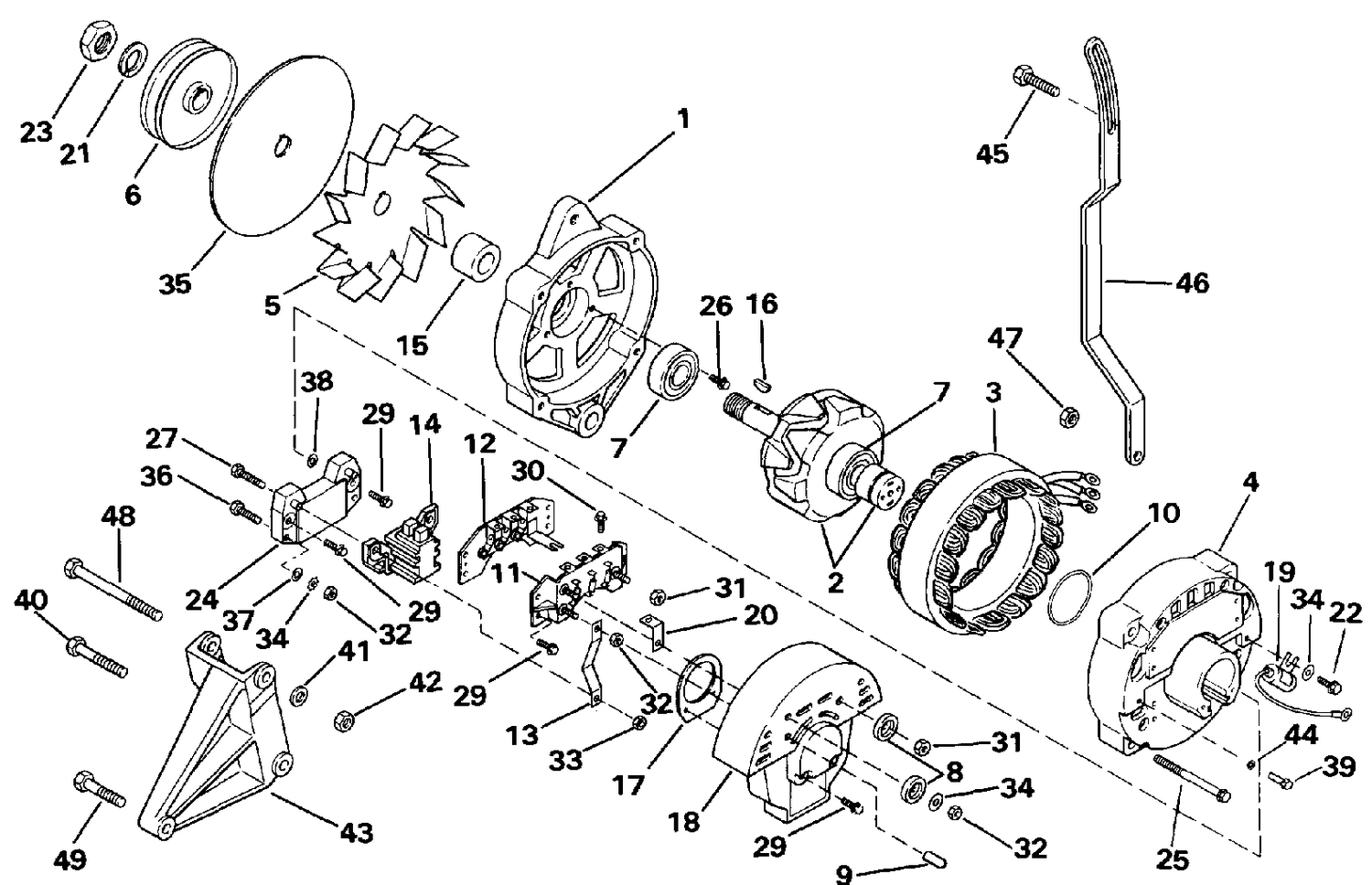

ALTERNATOR

ALTERNATOR

Parts (46)

RefPart NumberDescription
1 3852647 HOUSING, Front This part replaces 0912919.
2 3853838 ROTOR ASSY. This part replaces 0985029.
3 3853837 STATOR ASSY. This part replaces 0985028.
4 3852646 HOUSING, Rear This part replaces 0912918.
5 3852645 FAN This part replaces 0912917.
6 3852644 PULLEY This part replaces 0912916.
7 3852643 BEARING, Front & rear This part replaces 0912915.
8 3852624 INSULATOR, Red This part replaces 0912893.
9 3852623 INSULATOR, Boot This part replaces 0912892.
10 3852642 RETAINER, Rear bearing This part replaces 0912914.
11 3852641 DIODE FIELD This part replaces 0912913.
12 3853836 DIODE BRIDGE This part replaces 0985027.
13 3852640 STRAP, B+ This part replaces 0912912.
14 3853835 BRUSH ASSEMBLY This part replaces 0985026.
15 3852639 SPACER, Fan This part replaces 0912911.
16 3852638 KEY, Woodruff This part replaces 0912910.
17 3852637 FELT GASKET This part replaces 0912909.
18 3853834 COVER ASSEMBLY This part replaces 0985025.
19 3852636 CAPACITOR This part replaces 0912908.
20 3852635 STRAP, AC Tap This part replaces 0912907.
21 3852625 LOCK WASHER, Pulley This part replaces 0912894.
22 3852736 SCREW, Alternator ground This part replaces 0913580.
23 3852630 NUT, Pulley This part replaces 0912902.
24 0985713 SCREW, Front housing
25 3852634 BOLT, Through This part replaces 0912906.
26 3852734 SCREW, Front housing This part replaces 0913578.
27 3852629 SCREW, Regulator This part replaces 0912900.
29 3852735 SCREW, Diode field This part replaces 0913579.
30 3852628 SCREW, Diode field This part replaces 0912898.
31 3852633 NUT This part replaces 0912905.
32 3852632 LOCKNUT This part replaces 0912904.
33 3852631 Nut This part replaces 0912903.
34 3852626 WASHER This part replaces 0912895.
35 3853881 FAN BAFFLE This part replaces 0985889.
36 3852737 SCREW, Terminal This part replaces 0913581.
37 3852733 Washer This part replaces 0913577.
38 3852732 WASHER, Insulator This part replaces 0913576.
39 3852736 SCREW, Alternator ground This part replaces 0913580.
40 3853547 SCREW, Bracket This part replaces 0915002.
42 0305496 LOCKNUT, Alternator to bracket
43 3853828 BRACKET, Alternator This part replaces 0984900.
45 3853396 SCREW, Brace to alternator This part replaces 0915005.
46 3853461 BRACE, Alternator This part replaces 0915169.
47 3853403 NUT, Alternator brace to pump This part replaces 0915012.
48 3853367 SCREW Bracket This part replaces 0914901.
0985466 3860769 Alternator Kit This part replaces 0985466.
