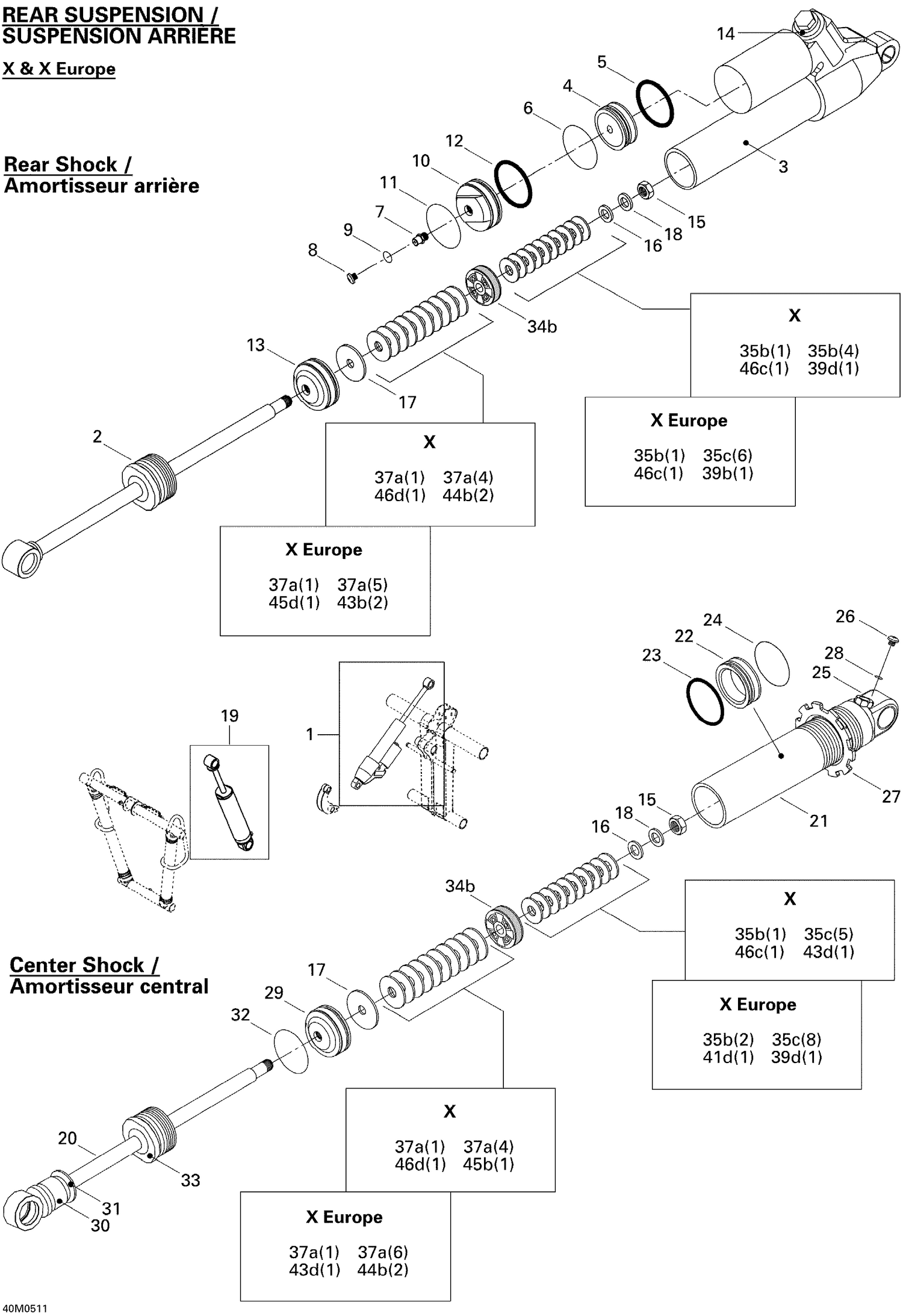

| Ref | Part Number | Description |
|---|
| 2 |
Not |
Available As Spare Part - Rod Ass'Y |
| 3 |
Not |
Available As Spare Part - Cylinder Tube |
| 4 |
415093812 |
FREE PISTON - Call your local BRP dealership |
| 5 |
415093807 |
O-Ring |
| 6 |
415093806 |
Piston Ring |
| 7 |
505070398 |
Air Valve |
| 8 |
505070399 |
Screw |
| 9 |
505070400 |
O-Ring |
| 10 |
Not |
Available As Spare Part - Guide |
| 11 |
Not |
Available As Spare Part - Stop Ring |
| 12 |
415093804 |
O-Ring |
| 13 |
Not |
Available As Spare Part - Bearing Compressor |
| 14 |
Not |
Available As Spare Part - Valve Ass'y |
| 15 |
Not |
Available As Spare Part - Nut |
| 16 |
Not |
Available As Spare Part - Valve Stopper |
| 17 |
Not |
Available As Spare Part - Valve Stopper |
| 18 |
Not |
Available As Spare Part - Washer |
| 20 |
Not |
Available As Spare Part - Rod Ass'y |
| 21 |
Not |
Available As Spare Part - Cylinder Tube |
| 22 |
503189309 |
FREE PISTON - Call your local BRP dealership |
| 23 |
414888312 |
O-Ring |
| 24 |
503189308 |
Piston Ring |
| 25 |
505070398 |
Air Valve |
| 26 |
505070399 |
Screw |
| 27 |
414888316 |
SPRING COLLAR - Call your local BRP dealership |
| 28 |
505070400 |
O-Ring |
| 29 |
Not |
Available As Spare Part - Bearing Compressor |
| 30 |
Not |
Available As Spare Part - Rubber Cushion |
| 31 |
Not |
Available As Spare Part - Washer |
| 32 |
Not |
Available As Spare Part - Stop Ring |
| 33 |
Not |
Available As Spare Part - Seal Ass'y |
| 34a |
414888304 |
Piston (C36) |
| 34b |
Not |
Available As Spare Part - Piston (2 X 0.3-1) (C36) |
| 34c |
414888305 |
Piston (2 X 0.3-2) (C36) |
| 34d |
Not |
Available As Spare Part - Piston (2 x 0.3-3) (C36) |
| 34e |
414888306 |
Piston (2 X 0.3-4) (C36) |
| 34f |
Not |
Available As Spare Part - Piston (2 x 0.3-5) (C36) |
| 34g |
414888307 |
Piston (2 X 0.3-6) (C36) |
| 35a |
415039100 |
Leaf Valve Ø30 X 0.254 (C36) |
| 35b |
414888318 |
Leaf Valve Ø30 X 0.203 (C36) |
| 35c |
414888319 |
Leaf Valve Ø30 X 0.152 (C36) |
| 35d |
Not |
Available As Spare Part - Leaf Valve Ø30 x 0.114 (C36) |
| 36a |
Not |
Available As Spare Part - Leaf Valve Ø28 x 0.254 (C36) |
| 36b |
414888320 |
Leaf Valve Ø28 X 0.203 (C36) |
| 36c |
414888321 |
Leaf Valve Ø28 X 0.152 (C36) |
| 36d |
Not |
Available As Spare Part - Leaf Valve Ø28 x 0.114 (C36) |
| 37a |
415039000 |
Leaf Valve Ø26 X 0.254 (C36) |
| 37b |
414888322 |
Leaf Valve Ø26 X 0.203 (C36) |
| 37c |
414888323 |
Leaf Valve Ø26 X 0.152 (C36) |
| 37d |
Not |
Available As Spare Part - Leaf Valve Ø26 x 0.114 (C36) |
| 38a |
Not |
Available As Spare Part - Leaf Valve Ø24 x 0.254 (C36) |
| 38b |
Not |
Available As Spare Part - Leaf Valve Ø24 x 0.203 (C36) |
| 38c |
Not |
Available As Spare Part - Leaf Valve Ø24 x 0.152 (C36) |
| 38d |
Not |
Available As Spare Part - Leaf Valve Ø24 x 0.114 (C36) |
| 39a |
Not |
Available As Spare Part - Leaf Valve Ø22 x 0.254 (C36) |
| 39b |
414888324 |
Leaf Valve Ø22 X 0.203 (C36) |
| 39c |
414888325 |
Leaf Valve Ø22 X 0.152 (C36) |
| 39d |
Not |
Available As Spare Part - Leaf Valve Ø22 x 0.114 (C36) |
| 40a |
Not |
Available As Spare Part - Leaf Valve Ø21 x 0.254 (C36) |
| 40b |
Not |
Available As Spare Part - Leaf Valve Ø21 x 0.203 (C36) |
| 40c |
Not |
Available As Spare Part - Leaf Valve Ø21 x 0.152 (C36) |
| 40d |
414888340 |
Leaf Valve Ø21 X 0.114 (C36) |
| 41a |
Not |
Available As Spare Part - Leaf Valve Ø20 x 0.254 (C36) |
| 41b |
414888326 |
Leaf Valve Ø20 X 0.203 (C36) |
| 41c |
414888327 |
Leaf Valve Ø20 X 0.152 (C36) |
| 41d |
414888328 |
Leaf Valve Ø20 X 0.114 (C36) |
| 42a |
Not |
Available As Spare Part - Leaf Valve Ø19 x 0.254 (C36) |
| 42b |
Not |
Available As Spare Part - Leaf Valve Ø19 x 0.203 (C36) |
| 42c |
Not |
Available As Spare Part - Leaf Valve Ø19 x 0.152 (C36) |
| 42d |
Not |
Available As Spare Part - Leaf Valve Ø19 x 0.114 (C36) |
| 43a |
Not |
Available As Spare Part - Leaf Valve Ø18 x 0.254 (C36) |
| 43b |
414888329 |
Leaf Valve Ø18 X 0.203 (C36) |
| 43c |
414888330 |
Leaf Valve Ø18 X 0.152 (C36) |
| 43d |
Not |
Available As Spare Part - Leaf Valve Ø18 x 0.114 (C36) |
| 44a |
Not |
Available As Spare Part - Leaf Valve Ø17 x 0.254 (C36) |
| 44b |
Not |
Available As Spare Part - Leaf Valve Ø17 x 0.203 (C36) |
| 44c |
Not |
Available As Spare Part - Leaf Valve Ø17 x 0.152 (C36) |
| 44d |
Not |
Available As Spare Part - Leaf Valve Ø17 x 0.114 (C36) |
| 45a |
414888331 |
Leaf Valve Ø16 X 0.254 (C36) |
| 45b |
414888332 |
Leaf Valve Ø16 X 0.203 (C36) |
| 45c |
414888333 |
Leaf Valve Ø16 X 0.152 (C36) |
| 45d |
415038900 |
Leaf Valve Ø16 X 0.114 (C36) |
| 46a |
414888334 |
Leaf Valve Ø15 X 0.254 (C36) |
| 46b |
414888335 |
Leaf Valve Ø15 X 0.203 (C36) |
| 46c |
414888336 |
Leaf Valve Ø15 X 0.152 (C36) |
| 46d |
414888337 |
Leaf Valve Ø15 X 0.114 (C36) |
| 47a |
Not |
Available As Spare Part - Leaf Valve Ø14 x 0.254 (C36) |
| 47b |
Not |
Available As Spare Part - Leaf Valve Ø14 x 0.203 (C36) |
| 47c |
Not |
Available As Spare Part - Leaf Valve Ø14 x 0.152 (C36) |
| 47d |
Not |
Available As Spare Part - Leaf Valve Ø14 x 0.114 (C36) |
| 48a |
Not |
Available As Spare Part - Leaf Valve Ø13 x 0.254 (C36) |
| 48b |
Not |
Available As Spare Part - Leaf Valve Ø13 x 0.203 (C36) |
| 48c |
Not |
Available As Spare Part - Leaf Valve Ø13 x 0.152 (C36) |
| 48d |
Not |
Available As Spare Part - Leaf Valve Ø13 x 0.114 (C36) |
| 49a |
503189538 |
Leaf Valve Ø12 X 0.254 (C36) |
| 49b |
414888338 |
Leaf Valve Ø12 X 0.203 (C36) |
| 49c |
414888339 |
Leaf Valve Ø12 X 0.152 (C36) |
| 49d |
415038800 |
Leaf Valve Ø12 X 0.114 (C36) |
