Home / BRP / 2008 / Xtrim / Xtrim 600 SDI, 2008 / 01- Cylinder And Cylinder Head

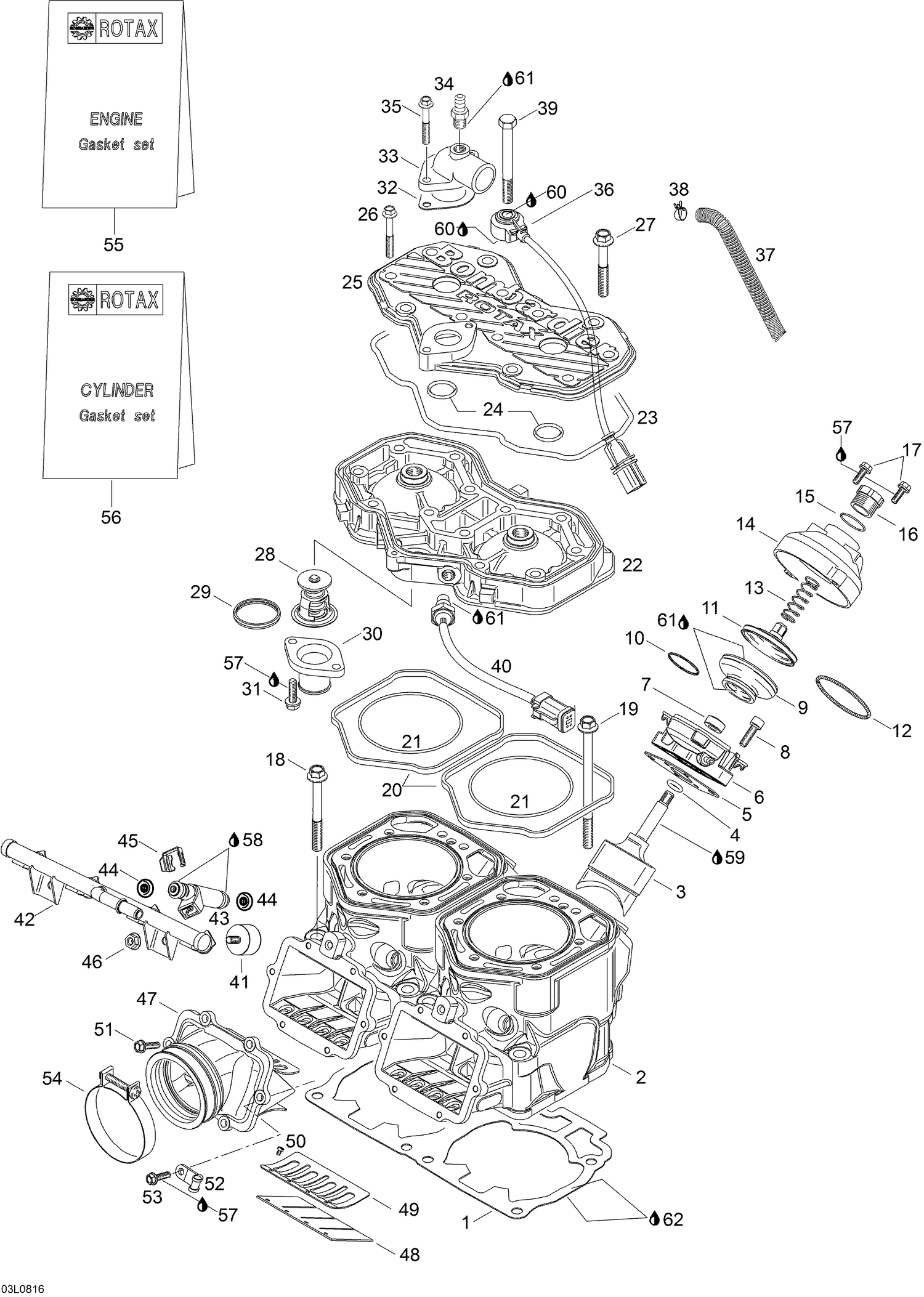

01- Cylinder And Cylinder Head

01- Cylinder And Cylinder Head

Parts (63)

RefPart NumberDescription
1 420431160 Double Gasket 0.5 mm This part replaces 420931893.
1 420431161 Double Gasket 0.6 mm This part replaces 420931892.
1 420431162 Double Gasket 0.7 mm This part replaces 420931894.
1 420431163 Double Gasket 0.8 mm This part replaces 420931895.
2 420613944 CYLINDER H.O. SDI - Call your local BRP dealership
3 420854650 Avloppsventil
4 420430110 O-Ring
5 420931542 Packning
6 420854454 VALVE HOUSING - Call your local BRP dealership
7 420950732 Oil Seal This part replaces 420950730.
8 205062544 Allen Screw M6 x 25 This part replaces 420840861.
9 420260729 Bellows
10 420838255 Kiristysjousi
11 420854449 Exhaust valve piston
12 420939281 Hose Spring This part replaces 420939280.
13 420239942 SPRING - Call your local BRP dealership
14 420911559 Valve Cover This part replaces 420911558.
15 420430220 O-rengas
16 420241221 Adjustment screw
17 420241271 Hex. Taptite Screw M5 X 25 This part replaces 420241270.
18 420640524 Hex. Collar Screw M10 x 80
19 420640534 Hex. Collar Screw M10 x 120
20 420931590 Tiivisterengas
21 293300026 O-Ring This part replaces 420850540.
22 420923465 CYLINDER HEAD COVER - Call your local BRP dealership
23 420950320 O-rengas
24 420430782 O-rengas
25 420923465 CYLINDER HEAD COVER - Call your local BRP dealership This part replaces 420923460.
26 420841307 Hex. Collar Screw M8 X 65 This part replaces 420841306.
27 270000484 Hex. collar screw M8 x 56.5
28 420922519 Termostaatti
29 420931272 Thermostat gasket
30 420922025 BENT OUTLET SOCKET - Call your local BRP dealership
31 207089044 Hex. Screw M8 x 90 This part replaces 40264.
32 420850339 Gasket This part replaces 420850338.
33 507032477 Clamp And Screw Kit
34 420822340 Hose nipple
35 415128592 Hex. Collar screw M6 x 40
36 270000484 Hex. collar screw M8 x 56.5
37 420460010 TUBE - Call your local BRP dealership
38 420960890 CLIP - Call your local BRP dealership
39 420941221 HEX. SCREW M8 X 80 - Call your local BRP dealership
40 515177835 Capteur Temp. *Sensor-Temp. This part replaces 420664500.
41 420960065 STOPPER - Call your local BRP dealership
42 420874490 RAIL FUEL - Call your local BRP dealership
43 420874485 Injektionmustycke
44 420631220 O-Ring
45 420851800 CLIP - Call your local BRP dealership
46 420442172 NUT - Call your local BRP dealership
48 420924680 Reed ventil komp.
49 420924695 Venttiilin rajoitin
50 420941215 Oval-head screw M3 x 5
51 420941928 Taptite Screw M5 X 16 This part replaces 420941925.
52 420851115 Hållare
53 420841550 Tapping Screw M5 X 22
54 420851065 Kiristin
55 420889931 Engine Gasket Set This part replaces 420889922.
56 420889936 Cylinder Gasket Set This part replaces 420889926.
57 293800060 Liima Loctite 243, 10ml
58 Not Available As Spare Part - Multipurpose grease
59 779119 NEEDS DESCRIPTION This part replaces 413802900.
60 293800081 Loctite 5910, 300 ml
61 420297907 Sealing Compound Loctite 5366 310Ml This part replaces 420297906.
