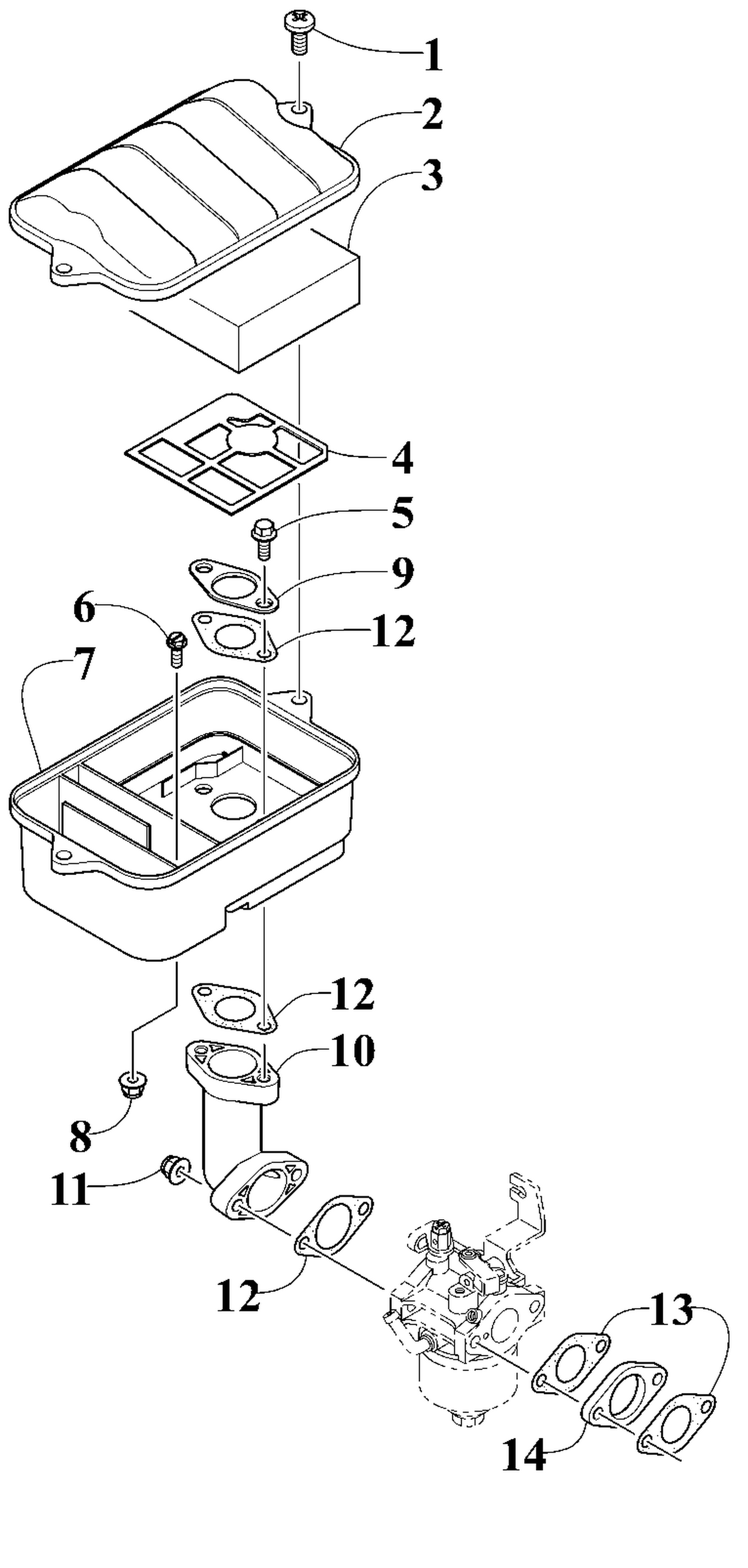

Engine - Air Cleaner
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3020-094 | Self tapping Screw |
| 2 | 3020-055 | Filter Cover |
| 3 | 3020-056 | Air Cleaner Filter |
| 4 | 3020-057 | Retaining Plate |
| 5 | 1623-661 | Self Tapping Screw |
| 6 | 8408-825 | M8X1.25X25 CAP Screw |
| 7 | 3020-054 | Air Cleaner Case |
| 8 | 8427-802 | Hex Lock Nut M8X1.25 |
| 9 | 3020-058 | Intake Insulator |
| 10 | 2670-110 | Intake Tube |
| 11 | 8427-602 | Hex Flange Elastic Nut M6X1.0 |
| 12 | 3020-053 | Carburator To Intake Gasket |
| 13 | 3020-021 | Intake Gasket |
