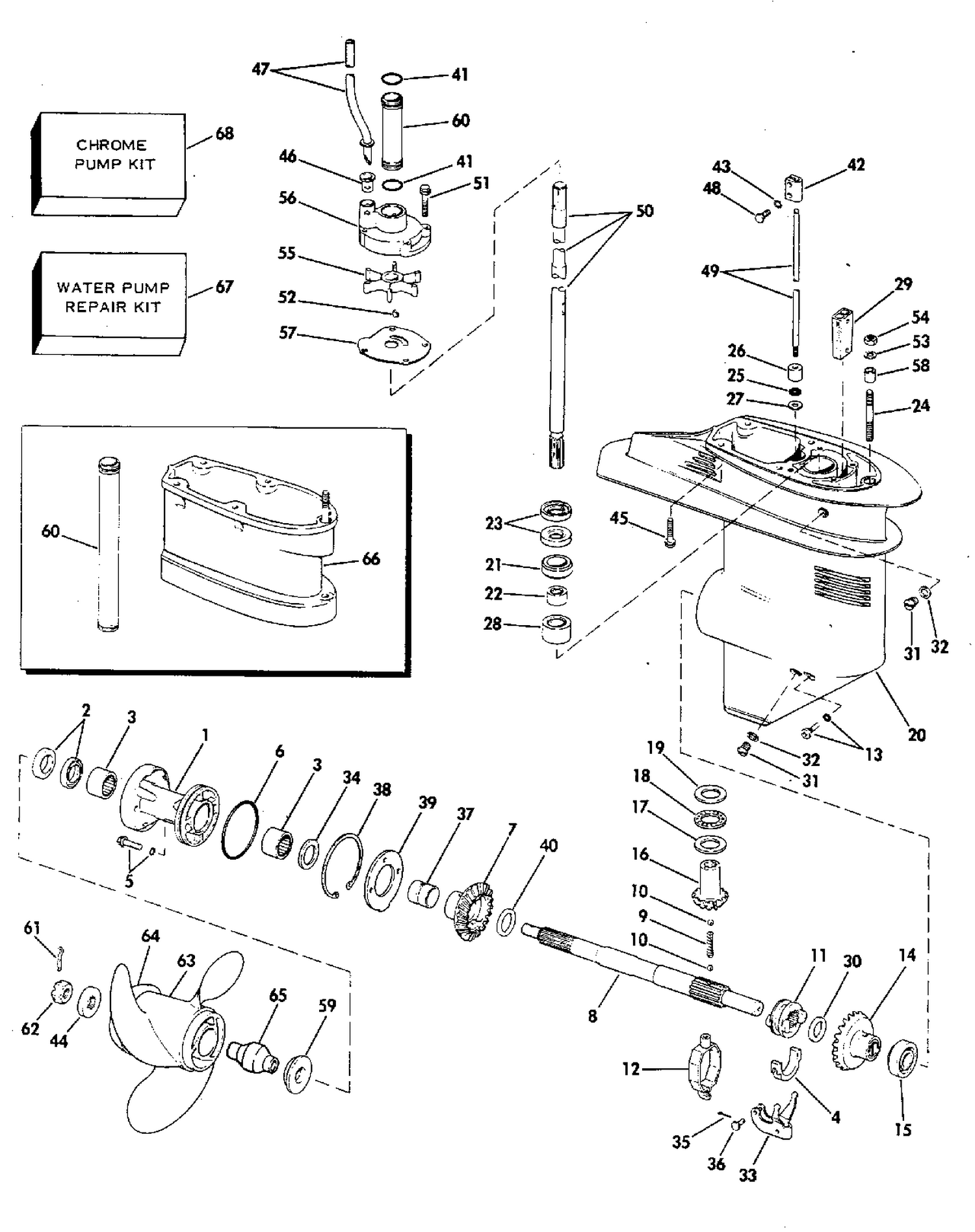

| Ref | Part Number | Description |
|---|
| 1 |
5008160 |
LOGEMENT DE ROULEMENT & JOINT This part replaces 0387023. |
| 2 |
0319678 |
SHIFT ROD, Lower std |
| 4 |
0321512 |
CRADLE, Clutch dog |
| 7 |
0322080 |
GEAR, Reverse |
| 8 |
0386418 |
PROPELLEER SHAFT |
| 9 |
0323278 |
SPRING, Detent |
| 11 |
0319565 |
SHIFTER, Clutch dog |
| 14 |
0388125 |
GEAR & BUSHING ASSY., Fwd |
| 16 |
0322079 |
PINION, Driveshaft |
| 17 |
0322688 |
THRUST WASHER, Bearing |
| 19 |
0319667 |
THRUST WASHER |
| 20 |
0389729 |
GEARCASE, Bearing & seal This part replaces 0388089. |
| 25 |
0301877 |
O RING SHIFT ROD |
| 30 |
0319686 |
THRUST WASHER, Front |
| 33 |
0320118 |
LEVER, Shifting |
| 40 |
0319685 |
THRUST WASHE,Rear |
| 42 |
0304081 |
CONNECTOR 5 " EXTENSION KIT |
| 45 |
0308707 |
SCREW |
| 45 |
0909533 |
SCREW, Pressure relief valve cover This part replaces 0316357. |
| 47 |
0322077 |
WATER TUBE, Standard |
| 47 |
0322078 |
WATER TUBE, Long |
| 49 |
0319679 |
SHIFT ROD, Lower Long |
| 50 |
0319629 |
DRIVESHAFT, Std. |
| 50 |
0319630 |
DRIVESHAFT, Long |
| 51 |
0312978 |
SCREEN, Ground plt to intmd hsg |
| 52 |
0317078 |
KEY, Impeller |
| 55 |
0378891 |
IMPELLER ASSY. |
| 56 |
0322260 |
IMPELLER HOUSING |
| 57 |
0322259 |
PLATE, Impeller housing |
| 59 |
0319890 |
THRUST BUSHING, Prop |
| 60 |
0326692 |
SPACER, Impeller housing This part replaces 0322408. |
| 63 |
0387320 |
PROPELLER 11 1/4 X 7 AL |
| 63 |
0387525 |
PROPELLER 10 1/2 X 11 SST |
| 63 |
0387526 |
PROPELLER 11 X 9 SST |
| 63 |
0765048 |
PROPELLER, Aluminum, 3 x 11 in. x 9 P This part replaces 0386317. |
| 63 |
0765049 |
PROPELLER This part replaces 0386637. |
| 63 |
0778863 |
PROPELLER This part replaces 0386933. |
| 67 |
0388256 |
WATER PUMP REPAIR KIT |
| 68 |
0388257 |
CHROME PUMP KIT |
| 0317178 |
0317178 |
O RING |
| 0386992 |
0386992 |
EXTENSION KIT ASSY |
| 0388117 |
0388117 |
GEARCASE ASSY. |
