| Ref | Part Number | Description |
|---|
| 1 |
0396409 |

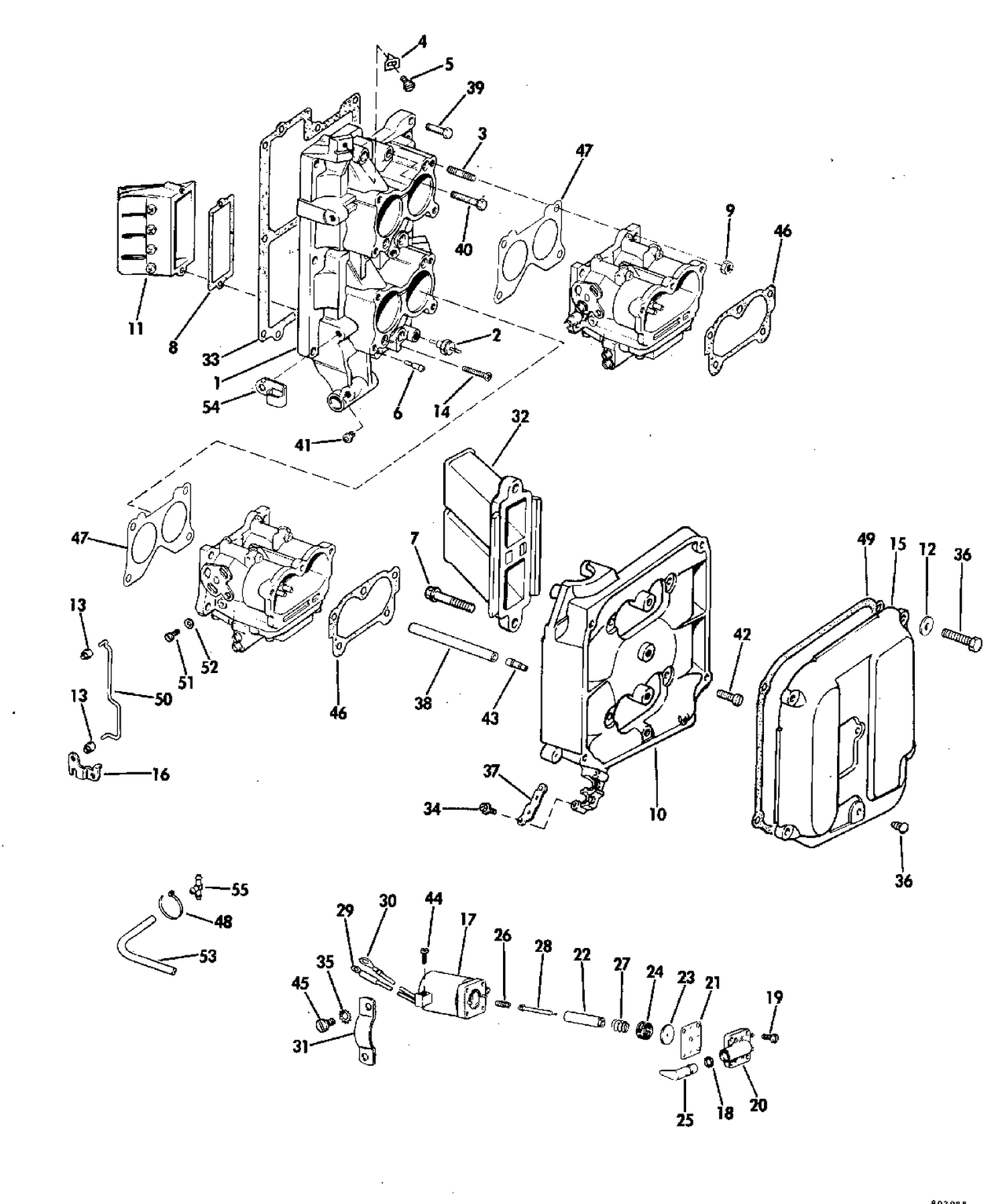

INTAKE MANIFOLD ASSY. This part replaces 0390454. |
| 2 |
0392988 |
CHECK VALVE This part replaces 0390436. |
| 3 |
0314956 |
STUD |
| 4 |
0330115 |
CLAMP, Power pack connector This part replaces 0318174. |
| 5 |
0303212 |
VIS, collier & capot |
| 8 |
0321907 |
GASKET, Leaf plate |
| 9 |
0316291 |
NUT |
| 10 |
0322985 |
BASE, Air silencer |
| 11 |
0389823 |
CLAPET |
| 11 |
0389824 |
LEAF PLATE ASSY., 85, 100 |
| 12 |
0329241 |
RONDELLE This part replaces 0306482. |
| 13 |
0313329 |
LOCKWASHER, Carburetor link |
| 14 |
0321707 |
SCREW, Leaf plate |
| 15 |
0389094 |
COER, Air silencer |
| 16 |
0320575 |
ADJ LEVER, Throttle link |
| 17 |
5007356 |
Kit Ay This part replaces 0582111. |
| 20 |
0511807 |
COVER&GASKET AY |
| 21 |
0333448 |
GASKET This part replaces 0511808. |
| 23 |
0333448 |
GASKET This part replaces 0511810. |
| 31 |
0321218 |
CLAMP, Choke solenoid |
| 32 |
0322383 |
ESTENSION,115,140hp |
| 33 |
0319174 |
GASKET, Exhaust cover, 85, 100, 115 hp |
| 36 |
0306409 |
VIS, collecteur vers carter-moteur |
| 36 |
0306418 |
VIS, ancrage |
| 37 |
0323400 |
CLAMP, Throttle shift cable |
| 39 |
0309905 |
SCEW,Cylinder head |
| 40 |
0322906 |
SCREW, Intake, long |
| 42 |
0328695 |
CLAMP, Engine cable This part replaces 0323480. |
| 45 |
0319292 |
SCREW, Clamp This part replaces 0308762. |
| 46 |
0319771 |
GASKET SET, Air silencer |
| 47 |
0327707 |
GASKET, Air silencer This part replaces 0326118. |
| 49 |
0321722 |
GASKET, Cover |
| 50 |
0330158 |
LINK, Throttle lever This part replaces 0325621. |
| 54 |
0325546 |
CLIP, Drain hose |
