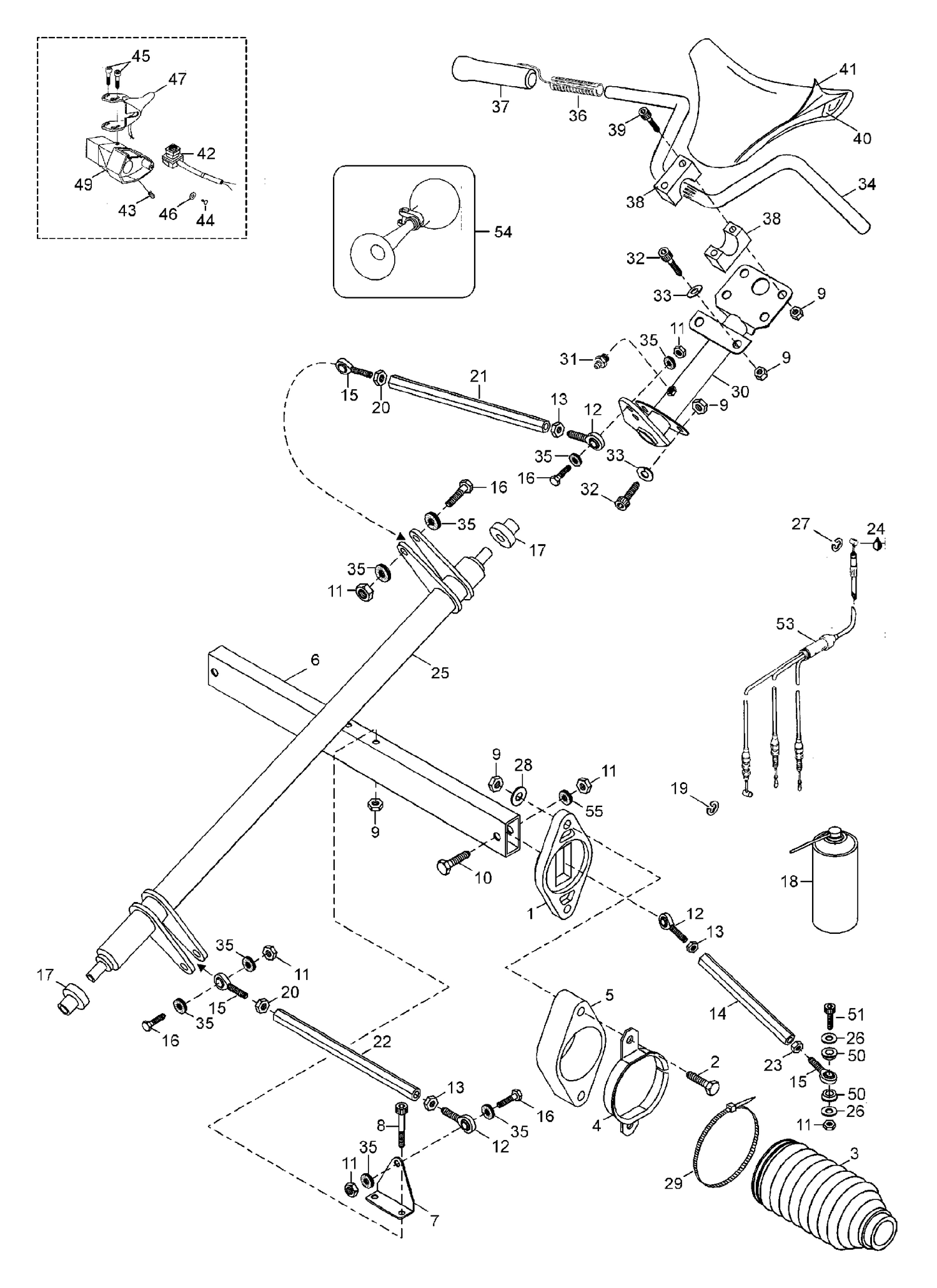

07- Steering
Parts (52)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5343486 | Bearing |
| 2 | 40012 | HEX, SCREW M8 X 80 - Call your local BRP dealership |
| 3 | 570068300 | TIE-ROD CAP - Call your local BRP dealership |
| 4 | 5343720 | Bracket |
| 5 | 5343597 | Support for bearing |
| 6 | 5344649 | Steering beam |
| 7 | 5446107 | Plate |
| 8 | 40290 | Allen screw M8x55 |
| 9 | 232581414 | Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 10 | 40042 | Screw M10x35 |
| 11 | 33012 | Nut elastic M10 |
| 12 | 311031L | Joint ball L.H. |
| 13 | 3310934L | Nut M10 |
| 14 | 5343556 | Tie Rod |
| 15 | 311031R | Joint ball, R.H. |
| 16 | 40014 | Screw M10x40 |
| 17 | 31049 | Glide bearing |
| 18 | 32123 | Spray oil |
| 19 | 414753500 | Circlip This part replaces 31035. |
| 20 | 232006414 | Hex. Nut M10 This part replaces 33004. |
| 21 | 5344322 | Tie Rod |
| 22 | 5343558 | Tie Rod |
| 23 | 33069 | Nut M10 |
| 24 | 413701700 | Grease_Dielectric |
| 25 | 5344827 | Main tube |
| 26 | 20005 | WASHER M10 - Call your local BRP dealership |
| 27 | 31038 | Circlip 5 DIN 6799(1=10pcs) - Call your local BRP dealership |
| 28 | 234082410 | Flat Washer 8 mm This part replaces 20010. |
| 29 | 27121 | Tie rap |
| 30 | 5243030 | Main tube upper |
| 31 | 34011 | Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership |
| 32 | 40305 | Allen screw M8x20 |
| 33 | 20014 | Lock washer |
| 34 | 5244519 | Handle bar |
| 35 | 20105 | Washer, hardened |
| 36 | 515175573 | Heater This part replaces 515175387. |
| 37 | 5340464 | Grip |
| 38 | 548448 | Support of Bar - Call your local BRP dealership |
| 39 | 40131 | Allen screw M8x40 |
| 40 | 5242077 | Steering pad foam |
| 41 | 5244989 | Cover |
| 42 | 515177362 | Kill Switch This part replaces 414612700. |
| 43 | 414440800 | Socket Set Screw M8 X 10 |
| 44 | 414473200 | Screw |
| 45 | 732601143 | Screw |
| 46 | 20026 | Washer |
| 47 | 5341802 | Heated throttle handle |
| 49 | 572028600 | Throttle handle hous. |
| 50 | 547068 | Washer |
| 51 | 40134 | Screw Socket HD.DIN 912 |
| 53 | 5245930 | Throttle cable |
| 54 | 549011291 | Horn This part replaces 21003. |
