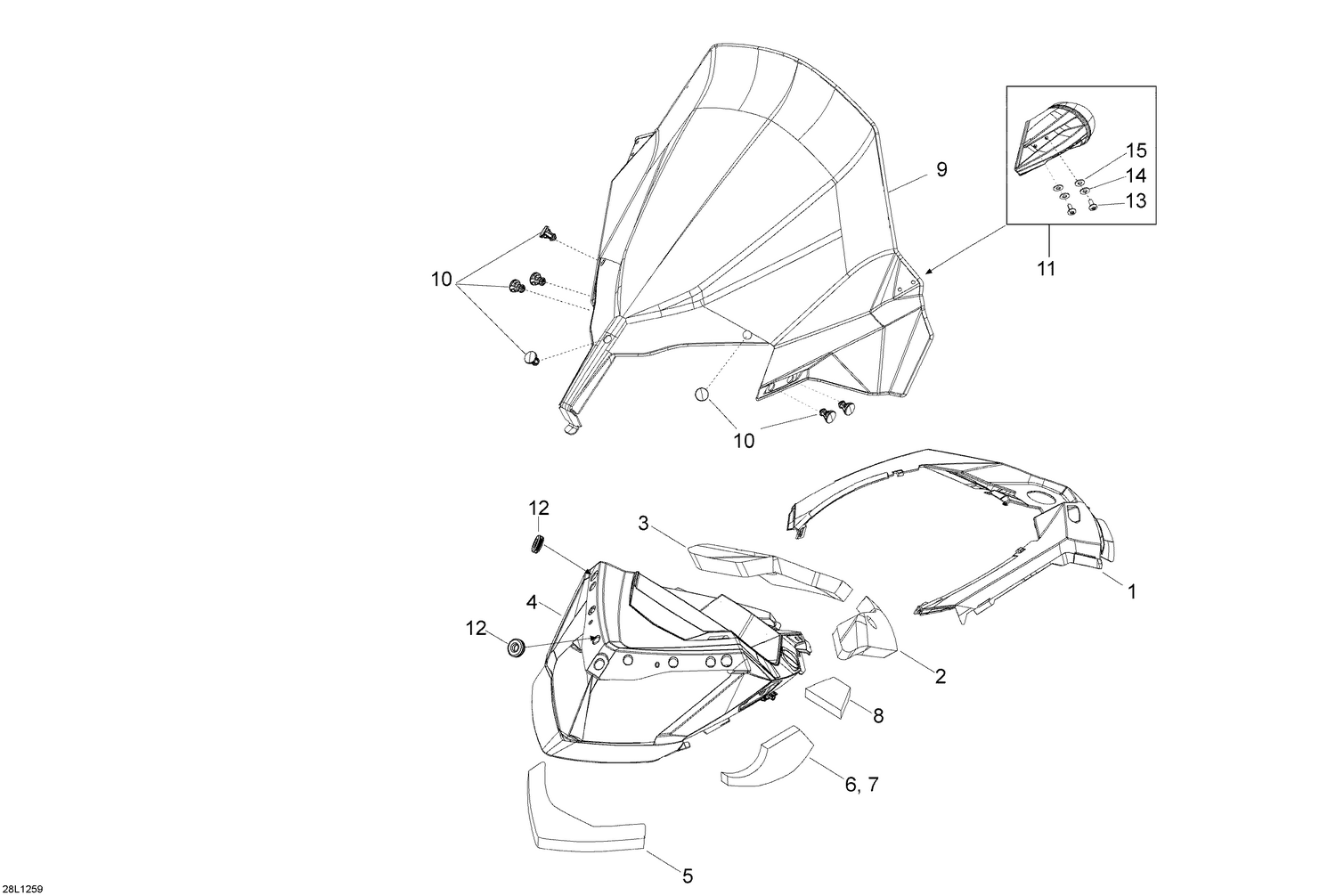

09- Windshield And Console
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 517304820 | Console |
| 2 | 517304317 | INSULATOR - Call your local BRP dealership |
| 3 | 517304318 | Insulator |
| 4 | 517304272 | Indicator Support |
| 5 | 517304314 | Insulator |
| 6 | 517304315 | Insulator |
| 7 | 517304316 | Insulator |
| 8 | 517304319 | Insulator |
| 9 | 860201000 | Windshield (580) Ass'y This part replaces 860200555. |
| 10 | 517304744 | Button |
| 11 | 517305787 | RH/LH Mirror Ass'y This part replaces 517304628. |
| 12 | 517303756 | Grommet |
| 13 | 250000721 | Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 14 | 20117 | Washer |
