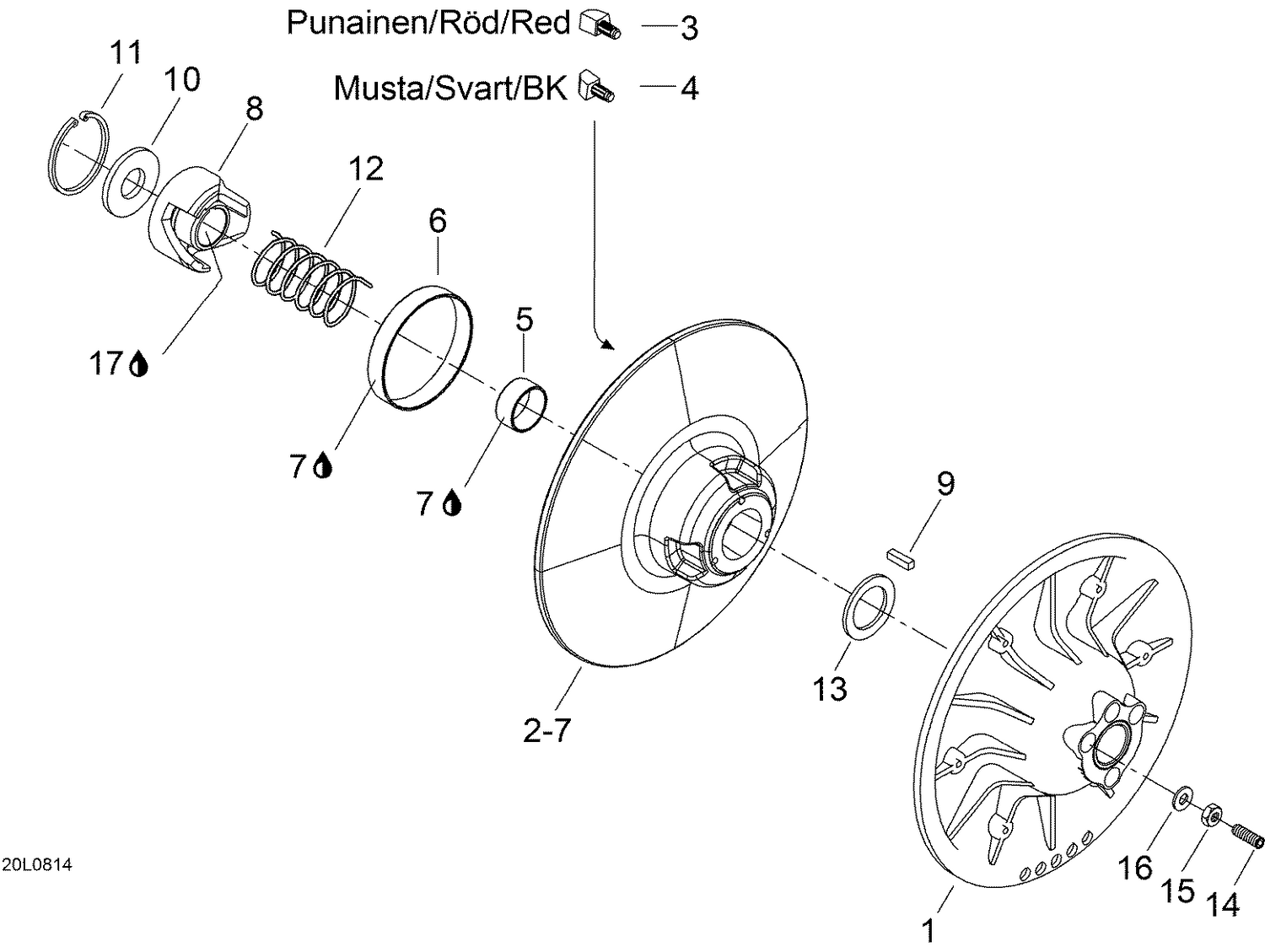

05- Driven pulley
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 417126663 | Fixed flange assy |
| 3 | 417126539 | SLIDER SHOE, REAR - Call your local BRP dealership |
| 4 | 417126538 | Front cam shoe slide, BK |
| 5 | 417126515 | CUSHION - Call your local BRP dealership |
| 6 | 417126562 | Bushing |
| 7 | 413703100 | Loctite 609, 10 ml |
| 8 | 417127038 | Cam 40-44 |
| 9 | 414820800 | Key |
| 10 | 417126555 | Stopper washer |
| 11 | 371903100 | CIRCLIP - Call your local BRP dealership |
| 12 | 417127061 | Spring, Brown |
| 13 | 504141900 | Thrust washer |
| 14 | 206263044 | Screw M6 x 30 |
| 15 | 232061414 | Nut |
| 16 | 420245370 | WASHER - Call your local BRP dealership |
