Home / BRP / ELECTRIC / 2024 / 006 - SPARK Series / 002 - SPARK 900 HO ACE - North America, 2024 / North America - SPARK 900 HO ACE - 62RC - Base package - Sunrise Orange - 3UP,2024 00062RC00 / 07- Body - Seat

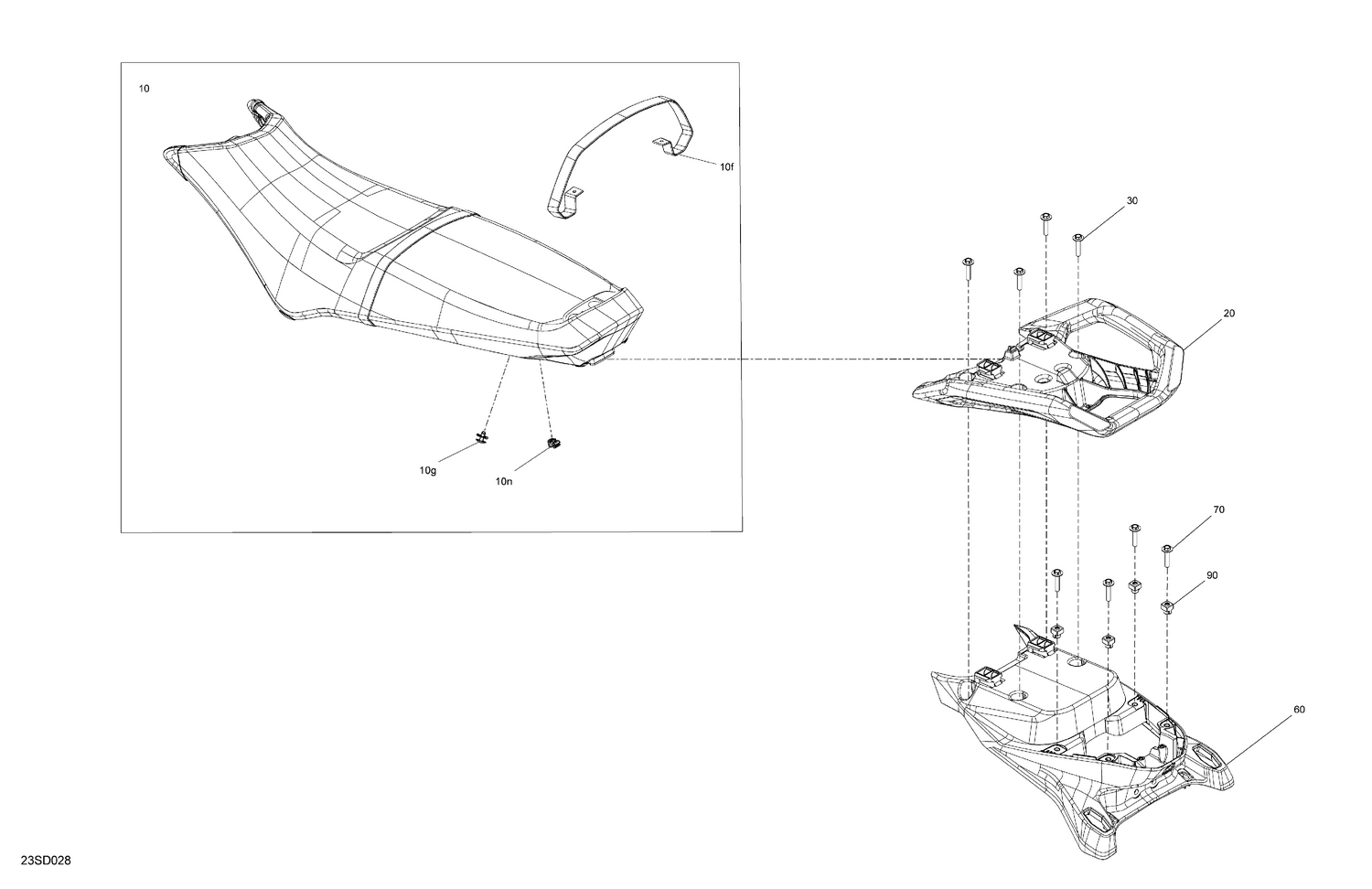

07- Body - Seat

07- Body - Seat

Parts (7)

RefPart NumberDescription
10f 269003952 Can-Am Red, Seat Strap
10g 293150067 Rivet
10n 293720100 Rubber Stopper
20 269003993 Bright White, Rear Handle
30 250000689 Hex. Cap Screw M6.8
60 269003864 Deep Black, Rear Handle Support
70 250000689 Hex. Cap Screw M6.8
