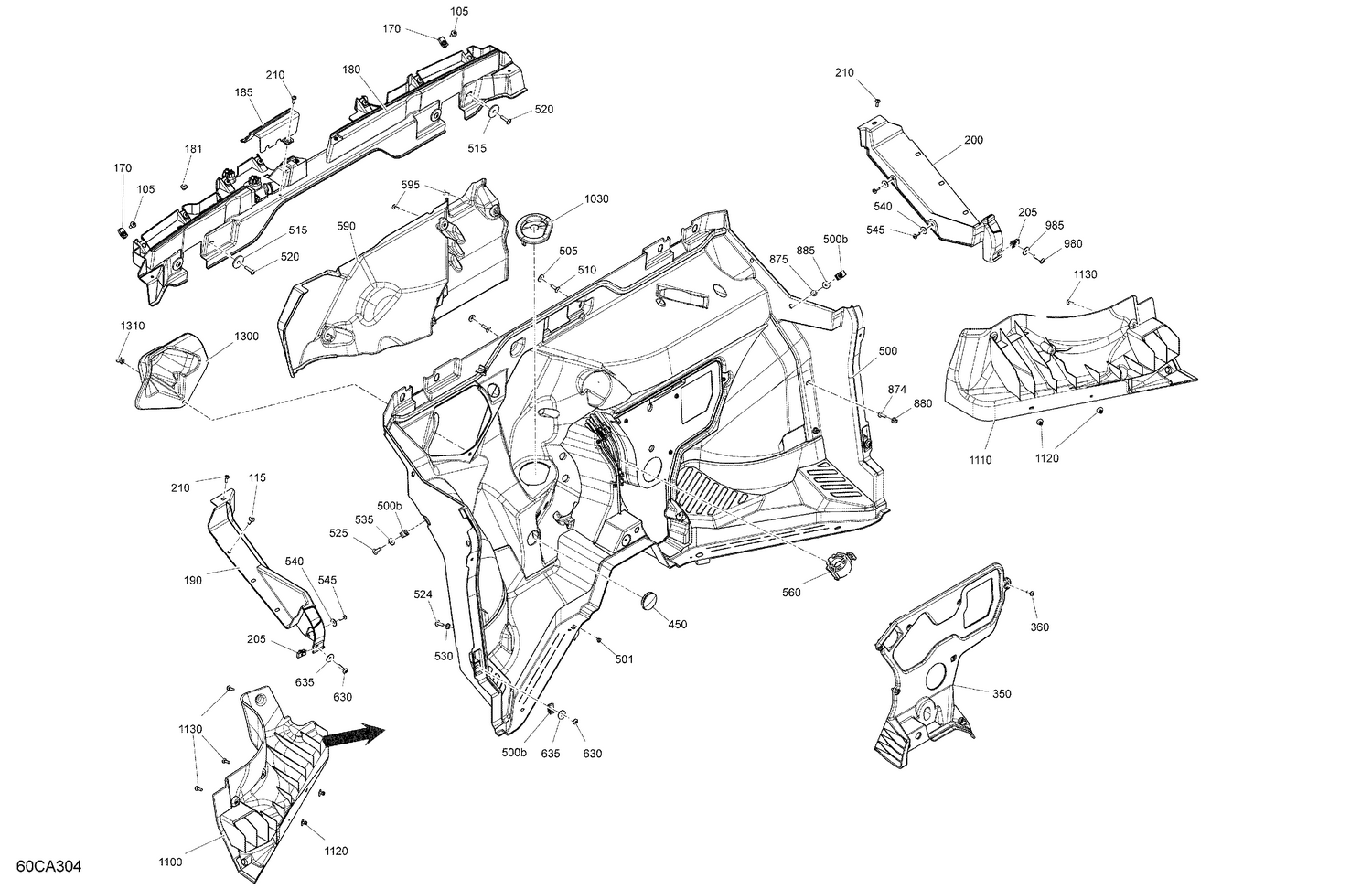

07- Cab Interior - Firewall
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 105 | 250000721 | Torx Truss Screw M6 X 16 |
| 115 | 250000722 | Torx Screw M6 X 20 |
| 170 | 250100198 | Panel Nut M6 X 1.0 |
| 180 | 707900755 | Front Upper Deflector |
| 181 | 293150103 | Pop Rivet 3/16" |
| 185 | 707900747 | Front Upper Deflector |
| 190 | 707900738 | LH Upper Deflector |
| 200 | 707900739 | RH Upper Deflector |
| 205 | 250100198 | Panel Nut M6 X 1.0 |
| 210 | 250000720 | Torx Screw K50 X 16 |
| 350 | 707900741 | Front Panel Trim |
| 360 | 250000720 | Torx Screw K50 X 16 |
| 450 | 293250242 | Rubber Cover |
| 500b | 250100198 | Panel Nut M6 X 1.0 |
| 501 | 390402200 | Pop Rivet 3/16" |
| 505 | 234062670 | Stainless Steel Flat Washer |
| 510 | 250000722 | Torx Screw M6 X 20 |
| 515 | 250200158 | Flat Washer M8 |
| 520 | 250000807 | Torx Truss Screw M6 X 25 |
| 524 | 250000712 | Torx Screw M6 X 20 |
| 525 | 250000722 | Torx Screw M6 X 20 |
| 530 | 233261494 | Hex. Flange Elastic Nut M6 |
| 535 | 234062670 | Stainless Steel Flat Washer |
| 540 | 234062670 | Stainless Steel Flat Washer |
| 545 | 250000720 | Torx Screw K50 X 16 |
| 560 | 707900719 | Split Grommet |
| 590 | 707900749 | Front Air Deflector |
| 595 | 250000720 | Torx Screw K50 X 16 |
| 630 | 250000867 | Torx Truss Hex. Screw M6X35, Nylon Patch |
| 635 | 250200162 | Flat Washer M6.6 X 22 |
| 874 | 250000712 | Torx Screw M6 X 20 |
| 875 | 250000722 | Torx Screw M6 X 20 |
| 880 | 233261494 | Hex. Flange Elastic Nut M6 |
| 885 | 234062670 | Stainless Steel Flat Washer |
| 980 | 250000867 | Torx Truss Hex. Screw M6X35, Nylon Patch |
| 985 | 250200162 | Flat Washer M6.6 X 22 |
| 1030 | 707900851 | Sterring Column Trim |
| 1100 | 707900750 | LH Front Deflector |
| 1110 | 707900751 | RH Front Deflector |
| 1120 | 293150104 | Pop Rivet 3/16" |
| 1130 | 250000720 | Torx Screw K50 X 16 |
| 1300 | 707900389 | Exterior Cover |
