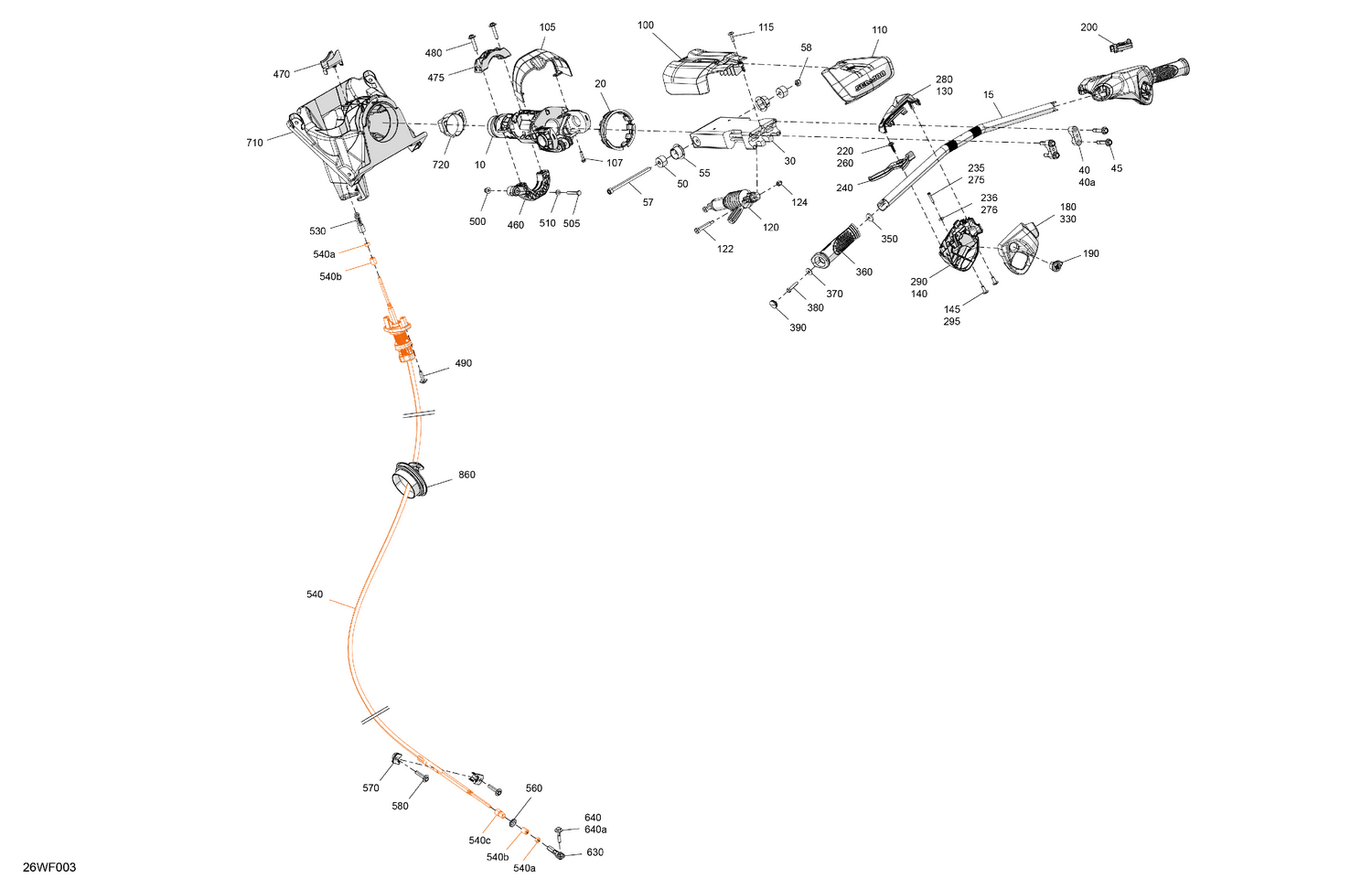

03- HELM - Steering
Parts (59)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 277002292 | Steering Column |
| 15 | 281000031 | Bent Handlebar |
| 20 | 277001874 | Wear Ring |
| 30 | 277002293 | Anodized Handlebar Riser Block |
| 40a | XXX | Not Available As Spare Parts |
| 45 | 250000834 | Hex. Screw Flange DIN.6921 S.Grip |
| 50 | 277002413 | Axle Block |
| 55 | 709401603 | Bushing |
| 57 | 231083060 | Socket Head Screw Din.912A2 |
| 58 | 232581200 | Hex. Elastic Nut M8 Brass |
| 100 | 277002289 | Rear Steering Column Trim |
| 105 | 277002348 | Front Steering Column Trim |
| 107 | 211000023 | Hex. Screw 10-14 X 7/8” |
| 110 | 277002331 | Steering Pad |
| 115 | 250000446 | Torx Screw M6 X 20, Scotch Grip |
| 120 | 709402894 | Cylinder Adjustment Ass'y |
| 122 | 250001230 | Socket Head Screw M6 X 50 |
| 124 | 232161600 | Hexagonal Jam Nut M6 |
| 130 | 277002040 | RH Upper Housing |
| 140 | 277002036 | RH Lower Housing |
| 145 | 250000922 | Torx Truss Screw M6 X 16 |
| 180 | 277002314 | LH Cover |
| 190 | 277002327 | Red Button Switch |
| 200 | 277002138 | Hand Lever Accelerator |
| 220 | 250001087 | Flange Screw Plastite #10, 14 X 7/8" |
| 235 | 241142560 | Hex. Flange Screw K40 X 25 |
| 236 | 234042600 | Flat Washer 4 mm, Stainless |
| 240 | 277001945 | Reverse Handle |
| 260 | 250001087 | Flange Screw Plastite #10, 14 X 7/8" |
| 275 | 241142560 | Hex. Flange Screw K40 X 25 |
| 276 | 234042600 | Flat Washer 4 mm, Stainless |
| 280 | 277002041 | LH Upper Housing |
| 290 | 277002035 | LH Lower Housing |
| 295 | 250000922 | Torx Truss Screw M6 X 16 |
| 330 | 277002315 | RH Cover |
| 350 | 277001863 | Insert Grip Handle |
| 360 | 277002286 | Handlebar Grip |
| 370 | 234062600 | Flat Washer M6, Stainless |
| 380 | 250000002 | Hex. Screw M6 X 30, Scotch Grip |
| 390 | 277000203 | Black, Cap |
| 460 | 277002319 | Steering Arm |
| 470 | 277001654 | Spacer |
| 475 | 277002085 | C Clamp |
| 480 | 250000399 | Hexagonal Cap Screw M6 X35 |
| 490 | 250000399 | Hexagonal Cap Screw M6 X35 |
| 500 | 233261200 | Nut Flange Elastic M6 |
| 505 | 207064060 | Hex. Screw M6 X 40 |
| 510 | 234061600 | Stainless Flat Washer M6 |
| 530 | 277001180 | Ball Joint |
| 540a | 211100056 | Hex. Nut 1/4"-28 |
| 540b | 277001582 | Wiper Rod |
| 540c | 277001583 | End Piece |
| 560 | 293830063 | Rubber Washer |
| 570 | 277001856 | Ring Halves |
| 580 | 250000399 | Hexagonal Cap Screw M6 X35 |
| 630 | 277000775 | Ball Joint |
| 640a | 250000969 | Hex Screw SEMS M6X35, SS |
| 710 | 277002168 | Steering Column Support |
| 720 | 277002318 | Wear Ring |
