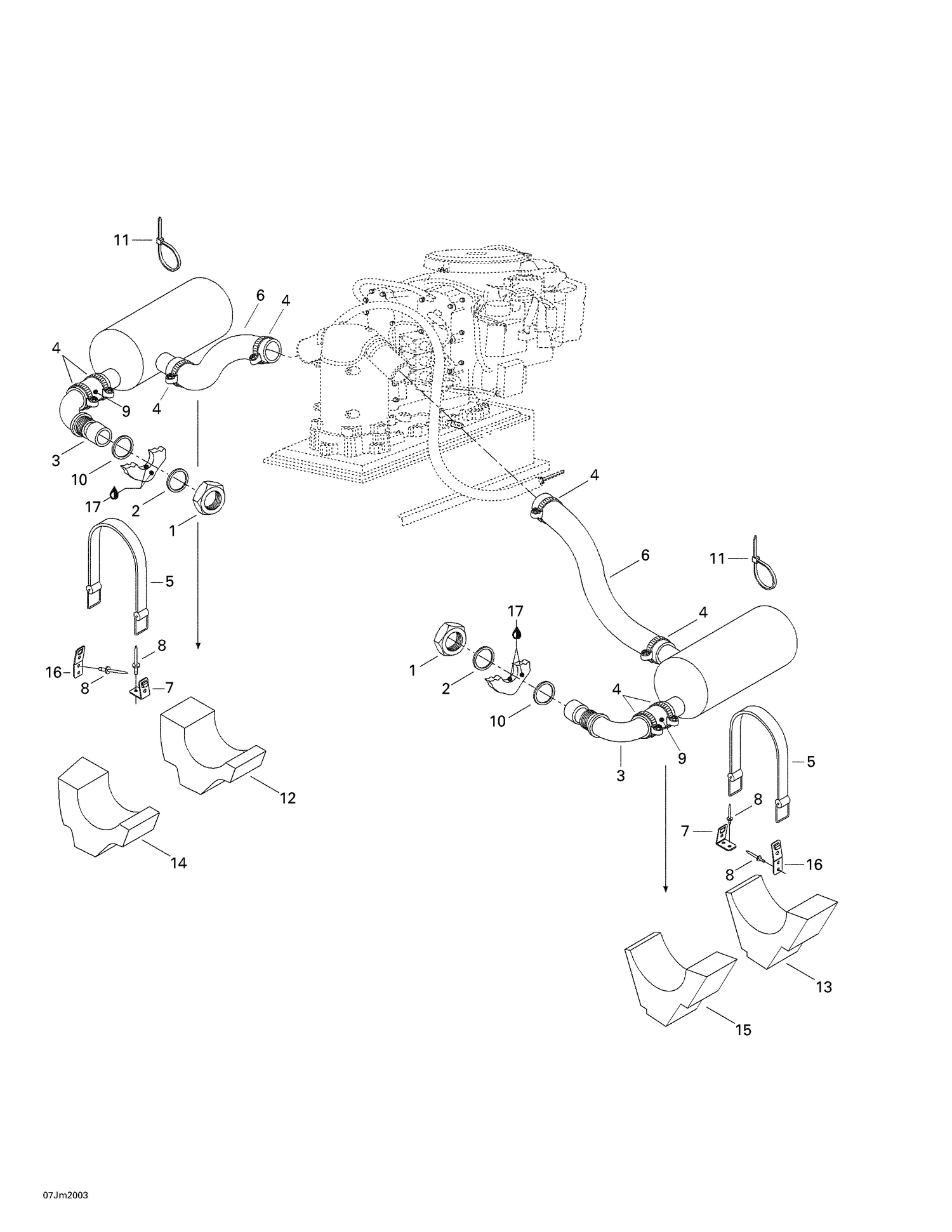

01- Exhaust System
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 274000224 | Nut 72 mm |
| 2 | 274000225 | STABILIZING WASHER - Call your local BRP dealership |
| 3 | 204340206 | Exhaust Outlet Ass'y |
| 4 | 293650064 | Tridon Clamp |
| 5 | 293850022 | STRAP - Call your local BRP dealership |
| 6 | 204340186 | Flexible Exhaust |
| 7 | 204060017 | Strap Clip 90° |
| 8 | 293150008 | Pop Rivet 3/16" This part replaces 293150011. |
| 9 | 204340073 | Exhaust Hose |
| 10 | 293250041 | GASKET - Call your local BRP dealership |
| 11 | 293750020 | WRAP_TIE 828 X 9 - Call your local BRP dealership |
| 12 | 204340197 | LH Front Muffler Support |
| 13 | 204340199 | Front Muffler Support (Starboard) |
| 14 | 204340198 | LH Rear Muffler Support |
| 15 | 204340200 | Rear Muffler Support (Starboard) |
| 16 | 293850024 | STRAP CLIP - Call your local BRP dealership |
